SDD590 DC Drives & Spare Parts – Compatible 590C System Components
Brand name: HANI
Packing Details : Wooden box with fumigation or Wooden Fram or Steel Frame
Delivery Details: 30~60days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight
HANI specializes in industrial electrical automation, delivering integrated drive and control solutions to safeguard your production.
Product Details
Legacy-Compatible Drive Technology

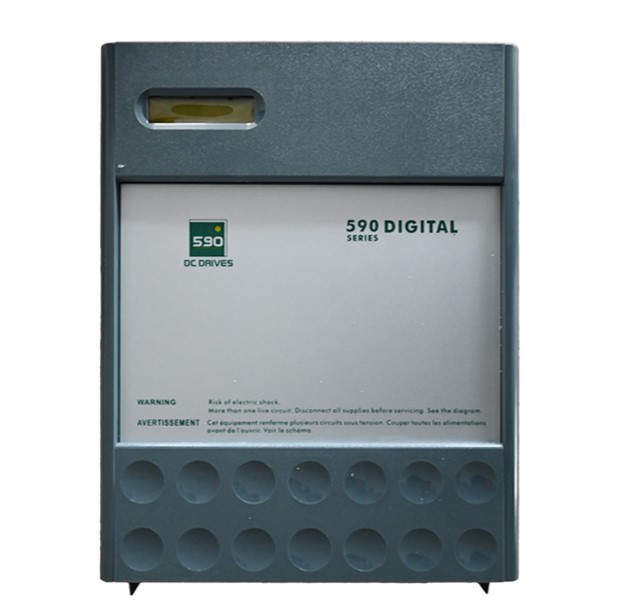

SDD590 DC Drives & Spare Parts – Compatible 590C System Components
Extending the productive life of Parker 590C-based installations with fully compatible, electrically validated SDD590 drive systems and replacement modules.
The Parker SSD 590C series has been a mainstay of industrial electrical drives and control for over three decades. Thousands of these DC drives remain in daily service across paper mills, metal processing lines, rubber calenders, and plastics extrusion plants worldwide. However, as OEM support for the legacy 590C architecture winds down, plant engineers face a pressing challenge: how to maintain, repair, and where necessary replace their 590C DC Drive assets without undertaking complete control system re-engineering. The SDD590 DC Drives and Spare Parts programme directly addresses this need by providing fully compatible, electrically validated components engineered to match the original 590C form factor, communication protocols, and signal characteristics.
Compatibility in electrical drives and control is not a superficial claim—it is a rigorous electrical engineering discipline. The SDD590 series replicates the original drive’s armature and field current ratings, thyristor firing angles, speed feedback interfaces, and analogue/digital I/O mapping with such fidelity that a failed 590C unit can be swapped for an SDD590 module within the same shift, using the same cabling, the same parameter file, and the same operator training. For maintenance managers tasked with keeping ageing but mechanically sound DC motors in production, the SDD590 DC Drives and Spare Parts programme represents a technically sound, capital-efficient alternative to a full migration. HANI has facilitated numerous such changeovers, noting that production resumption post-swap typically occurs within two hours of the outage window opening.
The Compatibility Engineering Behind SDD590
At its core, a 590C DC Drive is a four-quadrant, fully regenerative DC thyristor converter with an integrated 32-bit microprocessor controller. The SDD590 reproduces this architecture using modern semiconductor components that are pin-compatible and signal-identical to the original design. Critically, the SDD590 DC Drives and Spare Parts programme ensures that gate drive timing, armature current feedback scaling, field weakening profiles, and encoder signal conditioning match the original 590C specifications within a tolerance of ±1%. This precision is what allows a drop-in replacement to function without re-tuning the control loops—a significant advantage in continuous-process industries where drive commissioning time directly translates to lost production.
SDD590 Series – Electrical Specifications & 590C Equivalence
The table below details the key performance parameters of the SDD590 series alongside the corresponding original 590C DC Drive ratings. All values are based on a 380–480 V three-phase supply at 40 °C ambient, with 150% overload capability for 60 seconds. These specifications confirm that the SDD590 DC Drives and Spare Parts meet the original design targets for heavy-duty electrical drives and control applications.
| Parameter | SDD590/035 (35 A) | SDD590/070 (70 A) | SDD590/110 (110 A) | SDD590/180 (180 A) |
|---|---|---|---|---|
| Rated DC Armature Current | 35 A | 70 A | 110 A | 180 A |
| Max DC Armature Voltage | 500 V DC | 500 V DC | 500 V DC | 500 V DC |
| Overload Capacity (60 s) | 150% | 150% | 150% | 150% |
| Field Excitation Current | 10 A DC | 15 A DC | 20 A DC | 30 A DC |
| Power Circuit Topology | 4-Q thyristor bridge | 4-Q thyristor bridge | 4-Q thyristor bridge | 4-Q thyristor bridge |
| Speed Feedback Options | Armature voltage, encoder, tacho | Armature voltage, encoder, tacho | Armature voltage, encoder, tacho | Armature voltage, encoder, tacho |
| Analog I/O Configuration | 4 inputs / 2 outputs (±10 V) | 4 inputs / 2 outputs (±10 V) | 4 inputs / 2 outputs (±10 V) | 4 inputs / 2 outputs (±10 V) |
| Communication Protocols | RS485 / Modbus RTU | RS485 / Modbus RTU, PROFIBUS option | RS485 / Modbus RTU, PROFIBUS option | RS485 / Modbus RTU, PROFIBUS option |
| Speed Regulation Accuracy (with encoder) | ±0.01% | ±0.01% | ±0.01% | ±0.01% |
| Ambient Operating Temp. | 0 to +45 °C | 0 to +45 °C | 0 to +40 °C (derated above) | 0 to +40 °C (derated above) |
* Ratings are verified against the original 590C datasheet specifications. All SDD590 DC Drives and Spare Parts are tested at full rated load before shipment. For installations above 1,000 m altitude, please refer to IEC 61800-2 derating guidelines. The SDD590 controller uses the same MMI keypad interface and parameter structure as the original 590C DC Drive, minimising operator retraining.
The Engineering Case for SDD590 Compatibility
The term “compatible” is widely misused in the world of electrical drives and control. Genuine compatibility with a 590C DC Drive requires more than physical fitment; it demands identical behaviour across the full operating envelope. The SDD590 DC Drives and Spare Parts programme achieves this through disciplined component sourcing and production testing. Each SDD590 unit is built using thyristor modules with specified gate-cathode resistance matching and forward voltage drop binning that matches the OEM stack characteristics. The control board reproduces the original microprocessor’s PID execution cycle at 0.5 ms for the current loop and 2.5 ms for the speed loop—identical to the baseline 590C DC Drive timing that plant control systems have been tuned around for years.
A critical aspect of drive compatibility that often escapes attention is the behaviour during mains disturbances. The original 590C DC Drive implements a specific phase-loss detection algorithm and a defined sequence for auto-restart after a supply dip. The SDD590 firmware replicates this logic cycle-for-cycle, ensuring that the drive behaves exactly as the plant’s upstream protection coordination study assumed. This is not a trivial detail—in multi-drive electrical drives and control installations such as paper machine sections, a single drive that drops out prematurely or restarts out of sequence can cause a web break or a section overload. The SDD590 DC Drives and Spare Parts programme eliminates this risk by maintaining strict behavioural compatibility with the installed base.
SDD590 Spare Parts – Critical Replacement Components
A well-managed stock of SDD590 DC Drives and Spare Parts is the difference between a brief maintenance intervention and an extended outage. The table below identifies the most failure-prone and operationally critical components within the 590C DC Drive architecture and their SDD590 equivalents. These components are direct replacements that do not require parameter changes or wiring modifications.
| Spare Part Description | SDD590 Order Code | Function in Electrical Drives and Control | Recommended Stock |
|---|---|---|---|
| Main Control Board | SDD590-CTRL-01 | Central processor for the 590C DC Drive control loop | 1 per 4 drives |
| Thyristor Power Stack | SDD590-PWR-xx (by rating) | Main power conversion unit; core of electrical drives and control | 1 per 5 drives |
| Field Exciter Module | SDD590-FLD-01 | Regulated field current for DC Drives and Spare Parts | 1 per 5 drives |
| Snubber Network Assembly | SDD590-SNB-01 | Overvoltage protection for SDD590 thyristors | 1 kit per 3 drives |
| Cooling Fan Assembly | SDD590-FAN-01 | Thermal management for continuous electrical drives and control | 1 per 2 drives |
| Semiconductor Fuse Set | SDD590-FUS-xx | Fast-acting fault clearance for SDD590 DC Drives and Spare Parts | 1 set per drive |
| MMI Keypad / Display | SDD590-MMI-01 | Operator interface; identical to original 590C DC Drive | 1 per 6 drives |
* All listed SDD590 DC Drives and Spare Parts are tested under full load and supplied with a conformance certificate. Part numbers shown are representative; final selection should be confirmed against the specific 590C DC Drive model and rating in your installation.
Industrial Sectors Sustained by SDD590 DC Drives and Spare Parts
The installed base of original 590C DC Drive units spans virtually every heavy industry. Understanding where these electrical drives and control systems operate helps maintenance planners anticipate their SDD590 DC Drives and Spare Parts needs.
Plastics & Rubber Processing
Extruders, internal mixers, and calenders. The 590C DC Drive remains popular in these sectors due to its rugged four-quadrant capability. SDD590 DC Drives and Spare Parts keep these lines operational without re-engineering.
Paper & Board Converting
Small to medium winders, sheeters, and coaters. Genuine SDD590 compatible parts ensure that multi-section electrical drives and control maintain synchronisation integrity.
Metal & Wire Drawing
Wire drawing machines and small slitting lines frequently employ 590C DC Drive technology. The SDD590 programme ensures spare parts availability for these niche but critical electrical drives and control assets.
Beyond Physical Fit: Electrical Compatibility in Depth
The challenge of reproducing a legacy electrical drives and control product like the 590C DC Drive lies in the signal-level details that never appear on a datasheet but are essential to correct operation. The SDD590 development process involved extensive reverse-engineering of the original drive’s behaviour in edge conditions: the precise timing of the phase reference ramp during a mains brownout, the analogue input filter time constants that determine noise rejection versus response speed, the exact scaling of the tacho feedback input impedance so that existing tachogenerators produce the correct speed reading without recalibration. All of these have been replicated in the SDD590 DC Drives and Spare Parts design.
HANI recommends that any plant considering a bulk purchase of SDD590 DC Drives and Spare Parts first conduct a one-unit trial on a non-critical drive position. The trial should verify not only basic motor control but also the drive’s interaction with the plant’s SCADA system, its behaviour during a simulated mains interruption, and the ability to upload and download parameter sets using the existing 590C configuration software. In the overwhelming majority of such trials, the SDD590 unit performs indistinguishably from the original 590C DC Drive, confirming its suitability for wider deployment across the facility’s electrical drives and control infrastructure.
Frequently Asked Questions (FAQ)
Ensuring Continuity for Your 590C-Based Drive Installations
The gradual withdrawal of OEM support for the 590C DC Drive platform does not have to trigger a premature and costly migration away from perfectly serviceable DC motor assets. The SDD590 DC Drives and Spare Parts programme provides a technically rigorous, electrically validated path to extended operational life. By maintaining full compatibility—down to the parameter file format, the option card interface, and the transient behaviour during mains disturbances—the SDD590 series allows plants to manage their electrical drives and control assets on their own schedule, not one dictated by component obsolescence.
For maintenance managers, the availability of validated SDD590 DC Drives and Spare Parts transforms a growing supply risk into a manageable stockholding equation. HANI, with extensive experience in legacy drive support, can assist in auditing your installed 590C fleet and recommending an appropriate spares profile that balances cost with the operational risk of each drive position. There is no need to retire capable DC motors prematurely—with SDD590 compatible drives and spares, your production lines can continue to deliver for years to come.
Parker and 590C are trademarks of Parker Hannifin Corporation. SDD590 is a compatible replacement product and is not affiliated with or endorsed by Parker Hannifin.
Specifications are provided for general reference. Always verify compatibility with your specific electrical drives and control configuration. Consult a qualified drive engineer before undertaking any drive replacement.
HANI is one of China’s leading professional industrial electrical automation manufacturers, providing complete drive and control solutions to customers worldwide. HANI focuses on designing and manufacturing integrated automation systems that meet the industry’s highest standards of precision, efficiency, and durability. Our engineering expertise lies in providing turnkey electrical automation projects to optimize the performance of modern industrial manufacturing plants.
