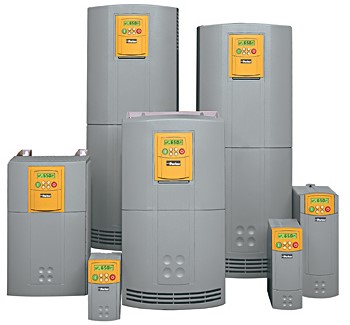

Parker 590P DC Drive Control Transmission Cabinet – Integrated Electrical Panel

The Parker 590P DC Drive Control Transmission Cabinet – Integrated Electrical Panel is a fully engineered, factory‑assembled power and control solution designed for high‑performance DC motor applications. At its heart is the world‑renowned Parker 590P digital DC drive, integrated into a purpose‑built electrical control panel that delivers precise speed regulation, robust protection, and seamless operator interaction. This electrical control panel is engineered by HANI to meet the rigorous demands of industries such as steel processing, paper converting, wire drawing, rubber mixing, plastics extrusion, crane control, and large‑scale material handling.

Inside the Parker 590P Integrated Electrical Control Panel

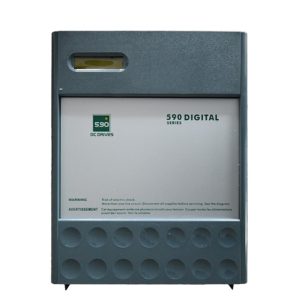

The Parker 590P drive itself is a fully digital, microprocessor‑based DC thyristor controller that originates from the Eurotherm SSD 590 series, now manufactured under the Parker Hannifin brand. When HANI builds a control cabinet around this drive, we go far beyond simple mounting. The electrical panel includes a fully isolated control section, a forced‑air thermal management system, field‑proven power components, and intuitive operator interfaces. The resulting Parker 590P Drive Control Cabinet becomes a turnkey drive center that reduces on‑site wiring, speeds up commissioning, and improves long‑term reliability.

Each electrical control panel incorporates a three‑phase fully‑controlled thyristor bridge for the armature circuit, a separate field supply, and a high‑resolution digital control board. The galvanic isolation between power and control circuits meets stringent industrial safety standards. The control cabinet enclosure is fabricated from heavy‑gauge steel with a red powder‑coat finish, hinged doors, and removable gland plates, offering IP42 or IP54 protection as standard. Inside the electrical panel, all components are laid out to maximize air flow and accessibility for maintenance.

Key Technical Characteristics of the Drive System

The Parker 590P in this electrical control panel provides a feature set that sets it apart from simple analog drives. Every function is implemented in firmware, giving superior repeatability and the ability to self‑tune critical control loops. The following table summarizes the core drive specifications as integrated in the Parker 590P Drive Control Cabinet.

Integrated Electrical Panel Design and Thermal Management

A standout feature of HANI’s electrical control panel is its forced‑air cooling architecture. High‑power SCR stacks generate significant heat during operation. By designing the electrical panel with dedicated air channels, oversized aluminum heat sinks, and thermostatically controlled fans, we guarantee that semiconductor junction temperatures remain within safe limits even at 50 °C ambient. The airflow path is carefully directed so that sensitive control electronics stay in a separate, cooler compartment. This thermal design, validated through computational fluid dynamics analysis, is critical for achieving the rated current capacity and extending the life of power components. In a typical Parker 590P Drive Control Cabinet, you will find intake filters, exhaust vents with louvers, and baffles that prevent recirculation of hot air.

Inside every control cabinet, all power wiring uses high‑temperature‑rated, low‑smoke zero‑halogen cable wherever possible, and busbar connections are torqued according to manufacturer specifications. The electrical panel includes a main disconnect switch or circuit breaker, armature and field fusing with semiconductor‑protection characteristics, a door‑interlocked power isolator, and clearly labeled terminal blocks. The result is a control cabinet that meets IEC 61439‑1 and UL 508A standards for low‑voltage switchgear and controlgear assemblies.

Protection and Diagnostic Functions

The Parker 590P digital platform is renowned for its comprehensive self‑diagnostics, and when mounted in this electrical control panel, the protective features are fully utilized. The drive actively monitors over 20 fault conditions and locks the first fault into a diagnostic log. The following protection layers are active in every Parker 590P Drive Control Cabinet:

• Instantaneous over‑current and inverse‑time thermal overload
• Field loss and field over‑current protection
• Speed feedback loss detection (tacho/encoder break)
• Motor overtemperature via PTC thermistor input
• Drive heatsink overtemperature
• SCR gate‑drive failure and phase‑loss detection
• Stall (blocked motor) and overspeed protection
• Mains over‑voltage and under‑voltage trip
• Ground fault detection (optional)

All diagnostic messages are displayed on the front‑panel LCD in plain English, and the same information is available over RS422/485. LEDs on the control board give an immediate indication of supply health and processor status. This makes fault‑finding straightforward: an operator can open the electrical panel door, read the error code, and consult the built‑in help function without needing a laptop. For preventive maintenance, HANI builds each electrical control panel with test points and status indicators that allow a technician to safely measure armature current, field voltage, and tacho feedback while the cabinet is energized.

Commissioning and Advanced Application Modules

One of the primary reasons engineers specify the Parker 590P Drive Control Cabinet is the breadth of built‑in software functions. The current loop auto‑tune function measures the armature circuit time constant and inertia, then sets the PI gains automatically—this typically takes less than 30 seconds. The speed loop PI can be adjusted manually or with an adaptive algorithm that modifies gains according to speed error and setpoint changes. For winding and unwinding applications, the control cabinet includes configurable tension control with dancer position feedback or load‑cell inputs, taper tension profiles, and diameter calculation. The PID module can serve as a stand‑alone process controller, regulating pressure, flow, or level directly from the drive. All settings are stored in non‑volatile memory and can be transferred via a cloning memory device, allowing rapid replacement of a control cabinet in the field without a PC.

Mechanical and Electrical Integration Details

Every HANI electrical control panel is built to order, with an emphasis on clean layout and simple interfacing. A typical Parker 590P Drive Control Cabinet features:

• Bottom gland plate for motor, mains, and signal cable entry
• Pre‑wired emergency stop circuit with safety relay
• 24 V DC control power supply derived from an internal transformer or external UPS
• DIN‑rail mounted terminals for field connections, reducing wiring errors
• Hinged sub‑panel that allows rear access to power terminals
• Silk‑screened label plates matching the electrical schematic

By consolidating the drive, protection devices, control switches, and communications interface in a single electrical control panel, system integrators save significant installation time. The control cabinet is delivered with a factory test report, an insulation test certificate, and a complete wiring diagram. HANI offers optional extras such as a panel‑mounted HMI touchscreen, remote I/O modules, and harmonic mitigation chokes installed within the same electrical panel.

Applications Where This Electrical Control Panel Excels

The Parker 590P Drive Control Cabinet has proven itself in demanding continuous‑process industries. Below are some examples:

Comprehensive Protection Table Built Into the Electrical Control Panel

Frequently Asked Questions

Why Source Your Electrical Control Panel from HANI

HANI has years of hands‑on experience in designing and assembling integrated electrical control panels for DC drive applications. We do not simply resell standard cabinets; every control cabinet is tailored to the specific power rating, cooling environment, and functional requirements of the end user. When you order a Parker 590P Drive Control Cabinet from HANI, you receive a validated system that includes a certified drive, tested protection coordination, and full documentation. Our customers value the fact that each electrical panel is load‑tested at the factory before shipment, reducing the risk of commissioning surprises on site. From small 10 kW winders to multi‑megawatt rolling mill main drives, HANI delivers a control cabinet that meets the performance and durability expectations of production environments operating 24 hours a day, 7 days a week.

IN SUMMARY: The Parker 590P DC Drive Control Transmission Cabinet – Integrated Electrical Panel combines proven digital drive technology with rugged, thermally optimized electrical control panel construction. It offers best‑in‑class speed accuracy, a full suite of application software, and industry‑hardened protection features, all housed in a ready‑to‑install control cabinet. For demanding DC motor control tasks, this integrated electrical panel represents the optimum balance of performance, reliability, and ease of use. Contact HANI today to discuss your specific requirements and receive a customized proposal for a Parker 590P Drive Control Cabinet built to your exact specifications.
