ABB DC Drive Distribution Cabinet – Complete Electrical Control System

Introduction to the Complete DC Drive Solution

When heavy industry demands relentless torque, precise speed regulation, and year‑round availability, an ordinary drive enclosure is no longer sufficient. The ABB DC Drive Distribution Cabinet from HANI is a fully integrated electrical control panel that places the proven ABB DCS800 industrial DC drive at the centre of a purpose‑built power distribution and automation system. Every aspect of this control cabinet has been engineered to meet the requirements of steel rolling mills, cement kilns, wire‑drawing lines, cable‑car drives, and electrolysis installations where downtime is not an option.

Rather than offering a loose collection of components, we deliver a single, factory‑tested electrical control panel that combines busbar power distribution, semiconductor protection, field excitation, PLC logic, and fieldbus communication inside a verified thermal envelope. This approach eliminates site‑level wiring errors, reduces commissioning time, and gives users a documented, repeatable electrical control panel ready for the most demanding environments.

What Makes This Electrical Control Panel Unique

At its core, the ABB DC Drive Distribution Cabinet is an electrical control panel built around the ABB DCS800 drive module, whose current span extends from 20 A to 5 200 A at voltages between 400 and 1 200 V. The DCS800 is widely recognised for its built‑in three‑phase fully‑controlled field exciter, IEC 61131 programmable environment, and native Modbus communication. Integrating it into a control cabinet that also accommodates incoming circuit breakers, main contactors, DC‑side disconnectors, and a full set of protective relays turns a stand‑alone drive into a production‑ready electrical control panel.

However, the real advantage lies not in the components themselves but in the holistic design of the control cabinet. HANI’s electrical engineers calculate busbar cross‑sections according to IEC 61439‑1, model heat dissipation using finite element thermal tools, and verify short‑circuit withstand up to 65 kA/1 s. Every electrical control panel is therefore a tightly coordinated system rather than a box filled with hardware.

Technical Specifications at a Glance

Table 1 – Typical technical profile of the ABB DC Drive Distribution Cabinet as an integrated electrical control panel. All parameters are verified during routine testing.

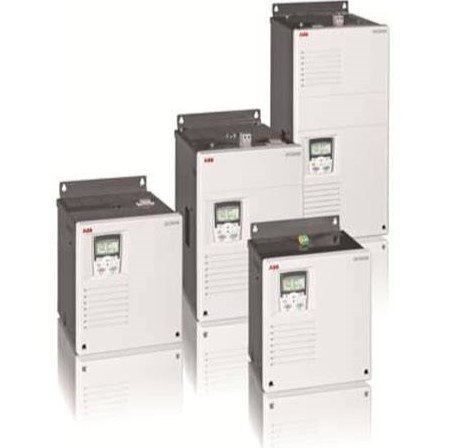

The ABB DCS800 Core – Proven Performance Inside the Control Cabinet

The DCS800 is an industrial DC drive that has earned its reputation in environments where mechanical stress, conductive dust, and temperature swings are part of daily operation. Its thyristor power section is designed for continuous full‑load operation, and the integral three‑phase field exciter removes the need for an external field supply in the control cabinet. In a single electrical control panel, users can select between armature voltage feedback, tachometer feedback, or an encoder interface to achieve speed accuracy better than 0.01 %.

Thanks to the IEC 61131 runtime, the drive can execute logic directly on board, which allows the electrical control panel to handle interlocking, digital I/O mapping, and even simple PID loops without a separate PLC. Nevertheless, HANI frequently integrates an AC500 PLC in the same control cabinet when the application requires extended I/O counts or complex sequencing. Built‑in Modbus RTU makes integration with any scada or DCS straightforward, while optional Profibus and EtherNet/IP modules allow the ABB DC Drive Distribution Cabinet to participate in larger automation architectures.

From a production standpoint, the DCS800 also supports shared‑mode operation for large DC motors, dual‑motor configurations, field reversal, and traditional 12‑pulse supply arrangements. All of this is housed within a single electrical control panel, significantly reducing the footprint compared with multicabinet setups of earlier generations.

Thermal Management – Science Inside Every Electrical Control Panel

Power semiconductor losses in DC drives are roughly 1 % of the rated output, and in a 1 MW system that equates to 10 kW of continuous heat rejection. HANI’s control cabinet designs tackle this load by applying the air‑flow and temperature‑rise principles outlined in IEC 61439‑2. We use redundant centrifugal fans with pressure‑drop calculations that guarantee a maximum internal temperature rise of 15 K above the external ambient when the electrical control panel is operated within its rated parameters. Filter mats with differential‑pressure switches prevent the accumulation of conductive dust on live parts.

For installations above 1 000 m altitude or in ambient temperatures exceeding 40 °C, the ABB DC Drive Distribution Cabinet is re‑rated in accordance with the derating curves published by ABB. All busbars inside the electrical control panel are dimensioned not only for thermal steady‑state but also for the adiabatic temperature rise during a short circuit, keeping the conductor temperature below the 200 °C limit mandated for tin‑plated copper.

Safety and Compliance – Beyond a Simple Control Cabinet

An electrical control panel of this class must provide a level of personnel safety that meets modern arc‑flash mitigation expectations. The incoming AC side of the ABB DC Drive Distribution Cabinet is equipped with a withdrawable circuit breaker or load‑break switch with an external operating handle, allowing full isolation before the doors are opened. The DC output section contains a load‑break disconnect with auxiliary contacts that ensure the drive is inhibited before the DC circuit can be interrupted. Internal separation up to Form 4b is available, making the control cabinet suitable for critical processes where one portion of the panel may need to be serviced while other circuits remain live.

Every electrical control panel is subjected to a routine verification programme based on IEC 61439‑1: dielectric test at 2 500 V for the main busbar, insulation resistance measurement (> 1 MΩ at 1 000 V DC), functional test of all protective devices, and a full‑load heat run on request. This testing regime ensures that the ABB DC Drive Distribution Cabinet leaves the factory as a validated assembly, not as a collection of untested sub‑components.

Applications Spanning Heavy Industry and Special Processes

The flexibility of a well‑designed electrical control panel is best demonstrated by the diversity of tasks it can perform. Below is a non‑exhaustive list of processes where the ABB DC Drive Distribution Cabinet has become the preferred solution:

• Ferrous and non‑ferrous rolling mills – the control cabinet withstands repeated shock loads and rapid reversing operations.
• Cement rotary kilns and ball mills – starts under high inertia are handled by the drive’s adaptive current loop inside the electrical control panel.
• Wire‑drawing and stranders – multiple coordinated drives can be fed from a common DC bus within one control cabinet.
• Cable cars and funiculars – the built‑in field reversal and torque proving logic guarantee safe passenger transport.
• Battery formation and electrolysis lines – the DCS800 is an excellent non‑motor DC supply; the ABB DC Drive Distribution Cabinet converts AC to precisely controlled DC for electro‑chemical processes.
• Magnet power supplies – high‑stability current control is achieved by using the DCS800’s load‑cell or current‑transducer feedback inside the electrical control panel.

How HANI Engineers a Production‑Ready Electrical Control Panel

At HANI, every electrical control panel project begins with a detailed design review where the single‑line diagram, motor data, site ambient conditions, and applicable standards are jointly examined with the client. From that review we produce a 3D model of the control cabinet that defines component placement, cable entry routes, air flow paths, and segregation forms. The sheet metal housing is fabricated from 2 mm galvanised steel, powder‑coated to RAL 7035 light grey unless another colour is specified, and reinforced to withstand the mechanical forces encountered during shipping and seismic events.

All internal wiring of the electrical control panel uses tri‑rated flexible copper conductors with ferrules and permanent identification markers. Power wiring is rated for 90 °C and is laid in dedicated ducts separated from signal cables. After assembly, the entire ABB DC Drive Distribution Cabinet must pass a multi‑point inspection before it reaches the test bay. This rigorous process is what allows HANI to offer a 24‑month warranty on every electrical control panel, backed by ABB’s worldwide service network.

Frequently Asked Questions

Why an Electrical Control Panel from HANI Makes a Difference

The ABB DC Drive Distribution Cabinet is far more than a box enclosing a drive; it is a complete electrical control panel that carries the engineering rigour of a company with deep experience in DC drive systems. From busbar calculations to firmware parameterisation, HANI delivers a turn‑key package that slashes site assembly time, reduces risk, and provides a documented baseline for long‑term maintenance. Whether your application is a steel cold‑rolling mill or a hydrogen electrolyser, this electrical control panel offers the reliability of ABB technology in a form ready for immediate production. Contact HANI to discuss your specification, and let us design the control cabinet that exactly matches your operational needs.
