HANI specializes in industrial electrical automation, delivering integrated drive and control solutions to safeguard your production.
Product Details
Heavy Industry Retrofit & Custom Engineering
Ansaldo DC Drives and Spare Parts – Retrofit & Custom Electrical Control
Sustaining high-power industrial processes with engineered Ansaldo-compatible drive systems, bespoke control solutions, and factory-certified replacement components.
In the world of heavy industrial electrical drives and control, Ansaldo occupies a distinctive position. The Italian power engineering firm, with roots stretching back to 1853, has designed DC drive systems that power some of the most demanding installations on earth: steel mill main drives, mine hoists, large extruders, and marine propulsion systems. The SPeD, SILCOVERT, and earlier Ansaldo series are renowned for their robust power handling—often rated into the megawatt range—and their sophisticated field-oriented control algorithms. Yet as these legacy Ansaldo installations age, plant managers encounter the same challenge: how to source reliable DC Drives and Spare Parts that meet the original electrical, thermal, and mechanical specifications without embarking on a multimillion-euro greenfield replacement.
The answer lies in a disciplined approach to Electrical Control sourcing that combines genuine Ansaldo-certified components with precision-engineered retrofit solutions where OEM parts are no longer available. This article examines the technical substance behind Ansaldo electrical drives and control technology, the spare parts that sustain it, and the retrofit pathways that extend asset life for another decade or more. For plants that depend on these high-inertia, high-torque DC drive applications, understanding the available DC Drives and Spare Parts ecosystem is essential to maintaining production continuity. HANI has assisted numerous heavy-industry operators in navigating this landscape, ensuring that the transition from aging OEM components to a sustainable spares and retrofit strategy is both technically sound and operationally seamless.
The Ansaldo Engineering Heritage in DC Drive Technology
Ansaldo electrical drives and control systems are characterised by exceptionally robust power stacks, often employing parallel thyristor bridges with interphase transformers to achieve current ratings exceeding 5,000 A DC. The control architecture—particularly in the SPeD and SILCOVERT TH2 families—uses a cascaded speed and current loop with adaptive field weakening that maintains torque linearity even at extended speed ranges. When sourcing DC Drives and Spare Parts for these systems, the critical parameters are not merely voltage and current ratings but gate drive timing precision, current-sharing balance across parallel thyristors, and the exact transfer function of the field exciter module. Genuine Ansaldo-specification components are essential to preserving these performance characteristics.
Ansaldo SPeD / SILCOVERT Series – Representative Ratings
The table below provides representative performance data for the Ansaldo electrical drives and control families most commonly encountered in heavy industry. All values are based on 400–690 V three-phase supply at 40 °C ambient, with overload capability of 150% for 60 seconds. These specifications reflect the original Ansaldo design parameters that must be met by any compatible DC Drives and Spare Parts.
| Parameter | SPeD 600 A | SPeD 1,200 A | SILCOVERT TH2 (2,500 A) | Custom/Parallel 5,000 A+ |
|---|---|---|---|---|
| Rated DC Armature Current | 600 A | 1,200 A | 2,500 A | 5,000 A+ (parallel bridges) |
| Max DC Armature Voltage | 600 V DC | 750 V DC | 900 V DC | 900–1,200 V DC |
| Overload Capacity (60 s) | 150% | 150% | 150% | 150% (system dependent) |
| Field Excitation Current | 40 A DC | 60 A DC | 100 A DC | 150–300 A DC |
| Power Circuit Topology | 6-pulse / 12-pulse thyristor | 12-pulse thyristor | 12-pulse / 24-pulse | Multi-pulse paralleled |
| Control Platform | DSP-based, cascaded PI | DSP-based, adaptive field weakening | Multi-DSP, load-sharing control | Custom engineered Electrical Control |
| Speed Accuracy (with encoder) | ±0.01% | ±0.005% | ±0.002% | Application specified |
| Fieldbus Integration | PROFIBUS DP, Modbus | PROFIBUS DP, PROFINET | PROFINET, EtherNet/IP | Per project requirement |
| Cooling Method | Forced air | Forced air / liquid option | Liquid-cooled standard | Engineered cooling system |
* Ratings are based on Ansaldo technical documentation and legacy datasheets. For specific installations, the drive nameplate data and existing transformer/power supply configuration must be verified before specifying DC Drives and Spare Parts. All Ansaldo electrical drives and control components are subject to derating at altitudes above 1,000 m per IEC 61800-2.
Retrofit Engineering: The Custom Electrical Control Approach
For many Ansaldo installations commissioned in the 1980s and 1990s, a like-for-like replacement is neither practical nor desirable. The original power stacks may have been built around semiconductor devices that are no longer manufactured, and the control electronics—often based on proprietary Ansaldo ASICs or obsolete microprocessor families—cannot be economically repaired. This is where a properly engineered Electrical Control retrofit delivers value. Rather than replacing the entire drive cabinet and all associated switchgear, a retrofit solution replaces the control core and, where necessary, the power stack modules, while reusing the existing cabinet structure, busbar infrastructure, field exciter, and auxiliary power supplies.
A well-executed Ansaldo retrofit preserves the plant’s investment in infrastructure while upgrading the electrical drives and control intelligence to a modern DSP-based platform. The new controller replicates the original Ansaldo speed and current loop dynamics—right down to the field-weakening curve and the EMF feedback linearisation—so that the existing DC motor and driven machinery behave identically to their original commissioning state. The difference is that the new DC Drives and Spare Parts are built from current-production semiconductors with guaranteed long-term availability, and the control platform offers modern features such as Ethernet-based diagnostics, integrated condition monitoring, and full compatibility with today’s plant automation networks.
Critical Ansaldo DC Drive Spare Parts – Stocking Reference
Effective maintenance of Ansaldo electrical drives and control systems requires a strategic inventory of the components most susceptible to age-related degradation and operational stress. The following table identifies key DC Drives and Spare Parts for Ansaldo installations, along with their functional significance within the Electrical Control architecture.
| Spare Part Description | Typical Ansaldo Designation | Role in Electrical Control System | Recommended Stock |
|---|---|---|---|

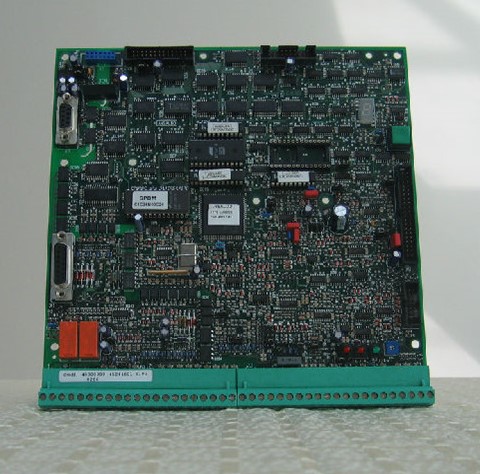

| CPU/Regulator Board | SPeD-CPU / SILCOVERT RGU | Central processing for electrical drives and control | 1 per 3 drives |
| Thyristor Power Module | ATF / AT series | Main power conversion; genuine Ansaldo matching critical | 1 per 4 drives |
| Field Exciter Unit | SPeD-FEX / TH2-FEX | Regulated field current for DC Drives and Spare Parts | 1 per 4 drives |
| Gate Drive / Firing Board | SPeD-GD / SILCOVERT GDB | Precision thyristor triggering for Ansaldo stacks | 1 per 3 drives |
| Snubber Network Assembly | Ansaldo-specified RC/diode | Overvoltage and dv/dt protection for thyristors | Kit per service interval |
| Cooling Fan / Blower Assembly | Ansaldo CF series | Thermal management for electrical drives and control | 1 per 2 drives |
| DC Link Fuse Set | Ansaldo-specified HRC | Ultra-fast fault interruption for power stack protection | 1 set per drive |
| Feedback Interface Board | SPeD-FB / TH2-ENC | Encoder, tacho, and EMF signal conditioning | 1 per 5 drives |
* The above part designations are representative of the Ansaldo electrical drives and control product families. Exact part numbers must be verified against the drive nameplate and existing module identification. For drives with custom Electrical Control configurations, a site audit is recommended before ordering DC Drives and Spare Parts.
Heavy Industries Powered by Ansaldo DC Drive Technology
Ansaldo electrical drives and control installations are concentrated in sectors where power levels exceed 500 kW and production continuity is paramount. Understanding these application contexts is essential for maintenance planning.
Primary Metals – Rolling Mills
Reversing hot mills, cold tandem mills, and temper mills rely on Ansaldo DC Drives and Spare Parts for main stand drives often rated 2–8 MW. The four-quadrant Electrical Control capability supports rapid reversing and precision gauge control.
Mining & Mineral Processing
Mine hoists, SAG and ball mills, and long overland conveyors. Ansaldo electrical drives and control provide the sustained overload torque required for starting fully loaded conveyors and hoisting heavy skips from depth.
Marine & Special Applications
Icebreaker propulsion drives, dredger cutter heads, and large wind tunnel fans. These custom DC Drives and Spare Parts applications demand engineered Electrical Control solutions tailored to unique duty cycles and environmental conditions.
The Retrofit Decision: When to Repair, When to Upgrade
For an Ansaldo installation that has been in service for 20–30 years, the decision to repair or retrofit is not simply a comparison of component costs. The original control boards may contain electrolytic capacitors that are well beyond their specified life, and the semiconductor junctions in the power stack may have accumulated thermal fatigue that increases forward voltage drop and reduces surge current capability. A structured assessment of the electrical drives and control system—examining the condition of power modules, control boards, cooling systems, and cabling—provides the factual basis for deciding between targeted replacement of DC Drives and Spare Parts and a more comprehensive retrofit.
HANI has conducted such assessments across multiple heavy-industry sites and typically finds that a hybrid strategy yields the best return on investment: retain the existing DC motor, main circuit breaker, and busbar infrastructure (which can last 40+ years if properly maintained); replace the control platform with a modern Electrical Control unit that replicates the original Ansaldo regulation dynamics; and replace the power stack modules with current-production thyristors that match the original current-sharing parameters. This approach secures another 15–20 years of service from the electrical drives and control assets at roughly 30–50% of the cost of a complete new drive system.
Frequently Asked Questions (FAQ)
Securing the Future of Ansaldo-Powered Production Lines
The industrial landscape contains thousands of Ansaldo DC drives that remain mechanically sound and electrically capable, yet are threatened by the diminishing availability of original DC Drives and Spare Parts. A strategic approach—combining genuine components where available with engineered retrofit solutions where necessary—allows plants to extend the productive life of these high-value assets by a decade or more. The key is to treat each Ansaldo installation as an individual engineering case, assessing its specific configuration, duty cycle, and condition before prescribing the appropriate mix of repair, replacement, and upgrade.
For plants that depend on these large electrical drives and control systems—whether in steel mills, mines, or marine applications—the cost of a proactive retrofit or spares holding programme is trivial compared to the cost of a single extended outage. HANI brings deep experience in the Ansaldo drive ecosystem, from sourcing rare Electrical Control components to managing complete turnkey retrofits that preserve all the original drive’s functional characteristics while delivering modern reliability and supportability. The result is continuity: the same DC motor, the same production output, the same operator interface—but with the confidence that the DC Drives and Spare Parts keeping it running are built for the next twenty years, not the last twenty.
Ansaldo is a registered trademark of Nidec Industrial Solutions. All product names and designations are trademarks of their respective owners.
Specifications provided are for general reference. Every electrical drives and control installation is unique—consult a qualified drive engineer before specifying any retrofit or replacement components.
