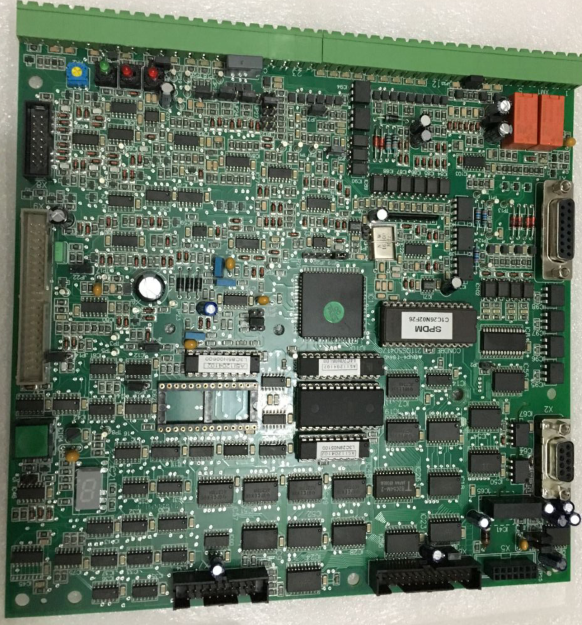

Ansaldo Control Board 131QE40000BCONDBB – Specialized Industrial Automation Spare

1. Product Overview: Ansaldo Control Board 131QE40000BCONDBB

The Ansaldo Control Board 131QE40000BCONDBB is a highly specialized and precision-engineered control circuit board designed specifically for Ansaldo SPDM series fully digital DC drive systems. As a core component within the industrial automation products portfolio, this control board — commonly referred to as the “C Board” (CONDBB) by field engineers and maintenance technicians — functions as the central processing and regulation unit responsible for armature current regulation, field excitation control, speed loop computation, and comprehensive protection logic in high-power DC motor drive applications. Manufactured in Italy by Ansaldo Sistemi Industriali (now part of the Nidec ASI group), this board represents decades of engineering excellence in power electronics and motion control technology.

The 131QE40000BCONDBB control board is an essential DC Drive Spare Part that ensures the continued reliable operation of Ansaldo DC drive systems across heavy industries including steel rolling mills, paper manufacturing lines, cement kilns, mining hoists, marine propulsion systems, and petrochemical processing plants. When this critical component fails or shows signs of degradation, having a genuine, ready-to-install replacement board is paramount to minimizing production downtime and maintaining operational continuity. The board’s design incorporates sophisticated digital signal processing capabilities, multiple feedback interfaces, and robust protection mechanisms that safeguard both the drive system and the connected DC motor from electrical faults and abnormal operating conditions.

2. About Ansaldo: A Legacy of Industrial Excellence

Ansaldo, founded in 1853 in Genoa, Italy, has evolved over more than 170 years into one of the world’s most respected manufacturers of electric motors, generators, power electronics, and industrial automation products. The company’s products are deployed across critical sectors including electricity generation, steel production, metallurgy, petrochemicals, ports, and marine applications. Ansaldo’s engineering philosophy emphasizes reliability, adaptability, and long service life — qualities that are embedded in every Ansaldo Control Board produced by the company. Today, as part of Nidec ASI (Ansaldo Sistemi Industriali), the brand continues to deliver process-oriented power quality and control solutions, from individual components to complete turnkey systems[reference:0].

The SPDM series of fully digital DC drives represents one of Ansaldo’s flagship product lines in the field of industrial automation products. These drives are engineered to deliver precise speed and torque control for DC motors ranging from 160A to 4000A rated armature current in single-unit configurations, with parallel-connected units capable of exceeding 8000A. Input voltage ratings span from 230V to 1200V, accommodating a wide spectrum of industrial power supply environments[reference:1]. The 131QE40000BCONDBB control board is the intelligence center for these drives, executing real-time control algorithms that maintain stable motor operation even under demanding load conditions.

3. Core Functions and Technical Architecture

The Ansaldo Control Board 131QE40000BCONDBB serves as the computational and regulatory hub of the SPDM DC drive system. Its functional responsibilities can be categorized into several key areas:

3.1 Armature Current Regulation

The board continuously monitors armature current through precision current sensing circuits and adjusts the firing angle of the thyristor bridge to maintain the desired current level. This closed-loop current regulation ensures that the DC motor delivers the required torque with minimal ripple and maximum efficiency.

3.2 Field Excitation Control

The 131QE40000BCONDBB manages the field excitation circuit of the DC motor, providing stable excitation current and voltage as defined by parameters DM2 (field current reference) and related settings. Proper field control is essential for achieving the desired speed range, particularly in field-weakening applications where motor speed must exceed base speed[reference:2].

3.3 Speed Loop Processing

Speed regulation is achieved through a proportional-integral (PI) control algorithm. Parameters TC1 (speed regulator proportional gain, typically set around 150) and TC2 (speed regulator integral time, typically set around 80) allow fine-tuning of the speed loop response to match the mechanical characteristics of the driven load[reference:3]. The board accepts speed feedback from either a tachometer generator (via jumper settings JP8 through JP12) or armature voltage feedback (via jumper settings JP15 through JP17), providing flexibility for different application requirements.

3.4 Protection and Monitoring

The board incorporates multiple layers of protection including phase loss detection (fault code P-O), external trip monitoring (fault code P-1), overcurrent protection, and supply voltage supervision. The phase loss protection is implemented through a dedicated hardware circuit that monitors voltages at test points P5, P15, and N15, with the board triggering a converter reset if P5 deviates beyond the range of 4.75V to 5.25V[reference:4]. These protection features are critical DC Drive Spare Parts functionalities that prevent catastrophic damage to the drive system and connected equipment.

3.5 Parameter Storage and Communication

All configuration parameters are stored in non-volatile EEPROM memory on the 131QE40000BCONDBB control board. After parameter adjustment, pressing the reset button ensures that the new settings are permanently written to EEPROM[reference:5]. The board also interfaces with external communication modules (such as the SPPB communication board) and operator panels (SPDI1, SPDI2) for system configuration and monitoring[reference:6].

4. Technical Specifications & Parameter Reference

The table below provides a comprehensive reference of the key specifications and parameters associated with the Ansaldo Control Board 131QE40000BCONDBB:

5. Key Configuration Parameters for Commissioning

When installing or replacing an Ansaldo Control Board 131QE40000BCONDBB, proper parameter configuration is essential. The following table documents the critical preset parameters that must be verified and adjusted during commissioning[reference:7]:

Note: After all parameters are configured, always press the reset button to ensure settings are written to EEPROM memory.

6. Installation, Commissioning & Maintenance Guidelines

Proper installation and commissioning of the Ansaldo Control Board 131QE40000BCONDBB are critical to ensuring reliable long-term operation. The following guidelines are based on established industrial practices for DC Drive Spare Parts installation and should be followed meticulously by qualified personnel:

6.1 Pre-Installation Checks

• ✅ Verify that the part number 131QE40000BCONDBB matches the original board being replaced
• ✅ Inspect the board for any visible physical damage that may have occurred during shipping
• ✅ Ensure all power to the drive cabinet is completely isolated and locked out before beginning work
• ✅ Document all existing parameter settings from the old board (if still accessible) for reference during commissioning
• ✅ Use proper electrostatic discharge (ESD) protection — wear a grounded wrist strap and work on an anti-static mat

6.2 Board Replacement Procedure

Remove the defective control board carefully, noting the positions of all connectors and jumper settings. Compare the jumper configuration of the new 131QE40000BCONDBB with the old board, particularly jumpers JP8 through JP12 (tachometer feedback selection) and JP15 through JP17 (armature voltage feedback selection). Install the new board, ensuring all connectors are firmly seated. Reapply power and proceed with parameter configuration as described in Section 5 above.

6.3 Preventive Maintenance Recommendations

To maximize the service life of your Ansaldo Control Board and related industrial automation products, implement a structured preventive maintenance program. Key recommendations include: maintaining clean, dry, and well-ventilated cabinet conditions; performing visual inspections of all DC Drive Spare Parts at least twice per year; checking for signs of overheating, corrosion, or loose connections; keeping spare boards in anti-static packaging in a temperature-controlled storage environment; and documenting all parameter changes and maintenance activities for future reference. Effective spare parts inventory management is the foundation of every reliable industrial operation, and proactive strategies for critical components like the 131QE40000BCONDBB help improve reliability, reduce risk, and keep motor-driven systems running[reference:8].

7. Fault Diagnosis & Troubleshooting Guide

Understanding common fault conditions associated with the Ansaldo Control Board 131QE40000BCONDBB is essential for maintenance personnel. The following table provides a systematic approach to diagnosing and resolving common issues[reference:9]:

8. Industrial Applications

The Ansaldo Control Board 131QE40000BCONDBB and the SPDM drive systems it supports are deployed in some of the most demanding industrial environments worldwide. Common application sectors include:

In all these applications, the reliability of the Ansaldo Control Board directly impacts production output. A failure of this critical DC Drive Spare Part can result in hours or even days of unplanned downtime, making the availability of genuine replacement boards a strategic priority for maintenance departments.

9. Why Source Your Ansaldo Control Board from HANI

When procuring critical industrial automation products such as the Ansaldo Control Board 131QE40000BCONDBB, selecting the right supplier is just as important as selecting the right part. HANI maintains extensive inventory of Ansaldo DC Drive Spare Parts including the 131QE40000BCONDBB control board, ensuring rapid availability and minimal lead times for customers worldwide. Our commitment to providing genuine, high-quality industrial automation products is backed by a professional technical support team and a comprehensive after-sales service network.

10. Frequently Asked Questions (FAQ)

11. Ordering Information & Next Steps

To order the Ansaldo Control Board 131QE40000BCONDBB or inquire about other industrial automation products and DC Drive Spare Parts, please contact HANI with the following information ready to ensure accurate and efficient processing:

• 📋 Part Number: 131QE40000BCONDBB (verify against existing board)
• 📋 Drive Model: Provide your SPDM drive model and serial number
• 📋 Quantity Required: Specify number of units needed
• 📋 Application Details: Brief description of your application and urgency level

HANI is dedicated to providing reliable industrial automation products and exceptional service to customers across the steel, paper, cement, mining, marine, and petrochemical industries. Our commitment to quality and customer satisfaction ensures that you receive genuine Ansaldo DC Drive Spare Parts backed by professional technical support and comprehensive warranty coverage.
