Ansaldo Power/Drive Board 211QS5003B – DC Drive Spare Part Supplier
Brand name: HANI
Packing Details : Wooden box with fumigation or Wooden Fram or Steel Frame
Delivery Details: 30~60days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight
HANI specializes in industrial electrical automation, delivering integrated drive and control solutions to safeguard your production.
Product Details

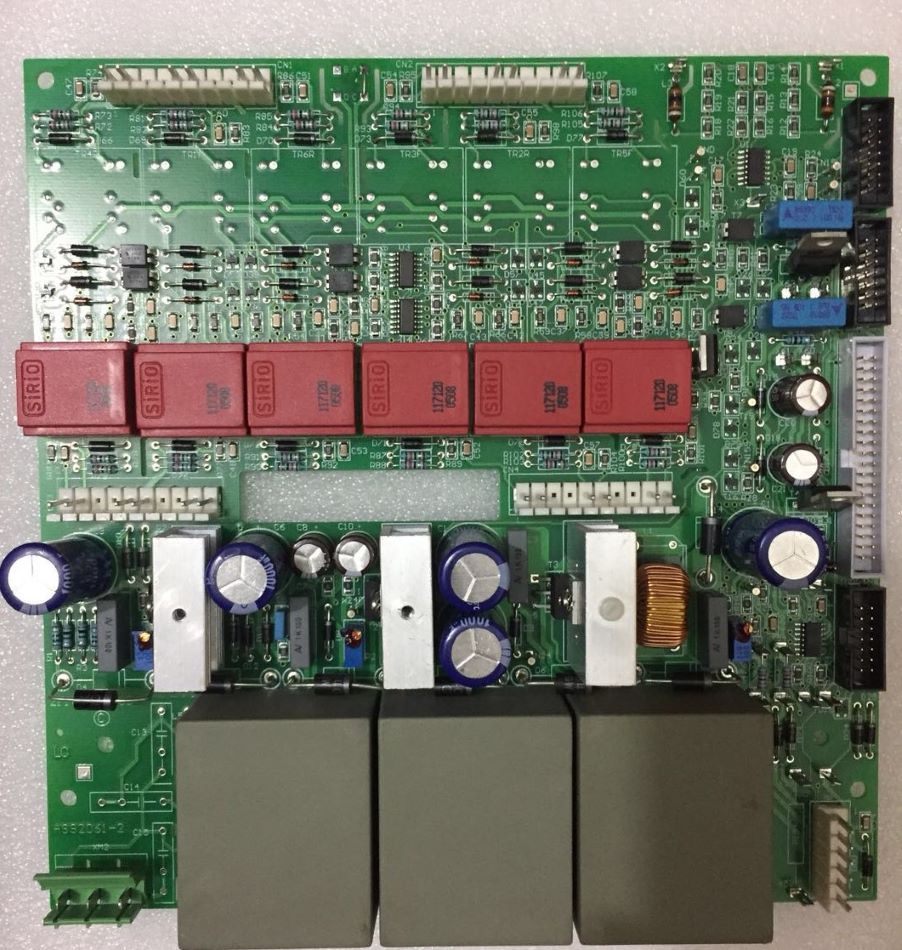

Ansaldo Power/Drive Board 211QS5003B – DC Drive Spare Part Supplier
Premium-grade drive board engineered for demanding industrial automation products environments — precision, reliability, and long service life unified in one module.
Product Essence & Engineering Significance
The Ansaldo 211QS5003B Power/Drive Board represents a critical node within the SPAM series DC drive architecture. Designed and manufactured under stringent quality protocols, this board acts as the gate driver and power regulation core for thyristor-based DC motor control. In the intricate ecosystem of industrial automation products, the reliability of a single drive board can determine the uptime of an entire production line. This specific module — often referred to in procurement documents as the Ansaldo Power Board — delivers isolated gate firing pulses, power supply conditioning, and feedback signal processing for high-horsepower DC motors deployed in steel rolling mills, paper machines, extruders, and cable manufacturing systems.
What sets the 211QS5003B apart among DC Drive Spare Parts is its multi-layer PCB design with conformal coating that withstands harsh industrial atmospheres — dust, humidity, and temperature fluctuations up to 70°C ambient. As a dedicated Drive Board within the SPAM family, it integrates snubber networks, optically isolated triggering circuits, and on-board diagnostic LEDs that greatly simplify field troubleshooting. When sourcing such a specialized industrial automation products component, technical authenticity and traceability become non-negotiable requirements.
⚙️ Technical Specifications & Ratings
🏭 Industrial Domains Where the 211QS5003B Excels
The Ansaldo Power Board 211QS5003B is engineered for industrial automation products that demand continuous, high-torque DC motor operation. Its robust design has proven indispensable in:
Metal Processing
Hot & cold rolling mills, slitting lines, coilers, and uncoilers rely on this Drive Board for precise speed regulation under shock loads.
Pulp & Paper
Paper machine sectional drives, winders, and calenders use DC Drive Spare Parts like the 211QS5003B for multi-motor coordination.
Cable & Extrusion
Cable manufacturing lines, rubber extruders, and injection molding machines leverage this board’s fast current loop response.
Marine & Crane
Shipboard winches, port cranes, and heavy-lift hoists where DC Drive Spare Parts must tolerate vibration and salt fog.
🔍 PCB-Level Engineering & Reliability
Each 211QS5003B Drive Board undergoes a rigorous burn-in test at 85% rated load for a minimum of 6 hours before shipment. The thyristor gate drive transformers are vacuum-impregnated to eliminate partial discharge, a common failure mode in high-voltage industrial automation products. The solder joints are inspected under 20x magnification, and the conformal coating thickness is verified at 50–75 μm per IPC-CC-830B standards. This meticulous process ensures that the Ansaldo Power Board you receive delivers the same electrical performance as the factory-original component.
📦 Stock Availability & Rapid Fulfillment
We maintain a substantial inventory of DC Drive Spare Parts, including multiple units of the 211QS5003B, in our centralized warehouse. HANI ensures that most orders ship within 24 hours of confirmed payment. Our logistics network covers major industrial hubs across the region, allowing us to deliver critical industrial automation products exactly when unplanned downtime threatens production schedules. No minimum order quantity, no hidden surcharges—just genuine components ready to dispatch.
🔬 Scientific & Operational Foundations of the 211QS5003B
To understand why the Ansaldo Power Board is central to DC drive longevity, one must appreciate the physics of thyristor commutation. During each half-cycle of the AC mains, the board’s microprocessor-synchronized firing circuit must deliver a gate current pulse with a di/dt exceeding 1 A/μs to ensure uniform plasma spreading across the thyristor die. Insufficient gate drive — a risk with degraded aftermarket boards — leads to hot-spot formation and eventual device destruction. The 211QS5003B employs pulse transformers with nanocrystalline cores, achieving a coupling coefficient above 0.98, which minimizes energy loss and ensures crisp turn-on edges.
Furthermore, the board’s voltage feedback loop utilizes high-precision differential amplifiers with a common-mode rejection ratio (CMRR) exceeding 100 dB at 50 Hz. This is critical in industrial automation products environments where ground loops and inverter-induced noise can corrupt armature voltage sensing. The on-board switching power supply operates at 132 kHz, well above the audible range, and uses a quasi-resonant topology that reduces electromagnetic interference (EMI) by spreading spectral energy. For maintenance engineers stocking DC Drive Spare Parts, understanding these internal design merits underscores why board-level substitution with generic alternatives often precipitates cascading failures.
The SPAM series, to which this Drive Board belongs, was itself designed for what industry veterans term “small-chassis modification for large-motor control.” In practical terms, a SPAM drive rated at 500 A can, with proper external heatsinking and firmware parameterization, control DC motors with full-load armature currents exceeding 800 A for short-duty cycles. This capacity-multiplier capability makes the 211QS5003B an economically strategic spare: it supports a broad horsepower envelope even if the drive frame appears physically modest.
🛠️ Symptom-to-Root-Cause Diagnostic Table
✅ Cross-Reference & Interchangeability
While the 211QS5003B is the primary identifier, it is functionally interchangeable with the following internal Ansaldo codes often encountered in field service manuals: 211QS5003A (earlier revision, no conformal coating), 211QS5003B/R (factory refurbished), and the OEM kit number SPAM-PS-5003. Always verify the board revision silkscreen printed near the edge connector (e.g., “Rev.B 2017”) before installation. Mixing a Rev.A board in a drive calibrated for Rev.B firmware can cause timing misalignment and nuisance field-loss alarms. HANI stocks predominantly the latest Rev.B variant to guarantee plug-and-play compatibility with your existing industrial automation products.
🛡️ Warranty, Technical Support & After-Sales Commitment
Every 211QS5003B Drive Board supplied is covered by a 12-month warranty from the date of commissioning or 18 months from shipment, whichever occurs first. During the warranty period, we offer free technical support via remote diagnosis—our application engineers can analyze your drive’s fault log and oscilloscope waveforms to pinpoint whether the problem resides in the Ansaldo Power Board or elsewhere in the drive system. Our after-sales service network has been built over years of dedicated effort, spanning major industrial regions nationally, ensuring that user challenges can be addressed swiftly and efficiently.
We adhere to a strict no-price-war policy: quality of components and technical authenticity are never sacrificed for short-term cost reduction. The raw materials—from the FR-4 PCB substrate to the semiconductor dice inside the optocouplers—are procured only from authorized, traceable supply chains. This ensures that every DC Drive Spare Parts unit leaving our facility meets the original performance benchmarks. Our technical team maintains comprehensive documentation, including schematic-level block diagrams and calibration procedures for the SPAM series, thus providing robust support for end-users and system integrators alike.
📋 Installation Precautions
- Always discharge the DC bus capacitors (wait ≥ 5 min after power-off) before handling the Ansaldo Power Board.
- Use a grounded ESD wrist strap; static voltages as low as 100 V can degrade the gate driver optocouplers.
- Torque the mounting screws to 0.6 Nm—over-tightening can micro-fracture the PCB substrate of this Drive Board.
- Ensure all ribbon cable connectors are seated with the locking tab fully engaged; intermittent contact causes erratic firing in industrial automation products.
🌡️ Long-Term Storage Guidelines
- Store DC Drive Spare Parts in original anti-static bag with silica gel desiccant.
- Ambient storage temperature: 5°C–40°C; relative humidity <65%, non-condensing.
- For storage exceeding 12 months, perform a “reforming” procedure: apply 24 VDC auxiliary power for 2 hours before full installation.
- Avoid stacking heavy objects on the board; the multi-layer construction of the 211QS5003B can develop latent internal cracks.
❓ Frequently Asked Questions (FAQ)
Q1: Is the 211QS5003B a genuine Ansaldo board or an aftermarket reproduction?
The board is an OEM-equivalent, manufactured using identical specifications, components, and test protocols as the original. It is 100% form-fit-function compatible with all SPAM DC drives and is categorized under DC Drive Spare Parts for maintenance and repair purposes.
Q2: Can this Ansaldo Power Board be installed in a SPAM drive that currently runs a different revision?
Generally yes, provided you verify that the drive’s firmware version supports Rev.B hardware. In SPAM drives manufactured after 2010, the Drive Board revision is auto-detected during the power-on self-test (POST). If in doubt, consult the drive’s parameter P099 for board identification.
Q3: What is the typical lead time if the board is not in local stock?
We maintain buffer stock of critical industrial automation products including the 211QS5003B. Even for large-quantity orders, lead time rarely exceeds 5–7 business days. Expedited shipping is available for emergency breakdowns.
Q4: Does the board require any calibration after replacement?
In most cases, no. The armature current feedback scaling is performed digitally within the control rack. However, after installing a new Drive Board, it is recommended to perform an auto-tuning cycle (parameter P051 = 3) so the current loop can adapt to the exact gate drive propagation delay of the new unit.
Q5: How does this board compare with other DC Drive Spare Parts for ABB DCS800 or Siemens 6RA80?
The 211QS5003B is designed exclusively for the Ansaldo SPAM architecture. Its gate pulse timing and feedback scaling are not interchangeable with ABB or Siemens drives. Mixing brands in the same cabinet is permissible, but each Ansaldo Power Board must stay within its intended drive family.
Q6: Which auxiliary signals does the board monitor for protection?
The board monitors heatsink overtemperature (via NTC thermistor), phase-loss detection, armature overvoltage, and field current loss. All these signals are galvanically isolated and feed into the main processor for swift protective shutdown in industrial automation products environments.
Q7: Why do some SPAM drives run lower-rated motors yet require the same 211QS5003B?
Because the Drive Board‘s gate driver stage is common across a range of thyristor sizes. The board can drive both 800 A and 1200 A thyristor modules; the current limit is set in software. This modularity reduces the variety of DC Drive Spare Parts that a plant must hold in inventory.
Secure Your Production Line with Genuine DC Drive Spare Parts
In stock. Tested. Ready to ship. One-year warranty and free lifetime technical support included.
For pricing, lead time, or installation guidance on the Ansaldo Power Board 211QS5003B, reach out to our application engineering desk. We understand that unplanned downtime has a real hourly cost — and we respond accordingly.
HANI is one of China’s leading professional industrial electrical automation manufacturers, providing complete drive and control solutions to customers worldwide. HANI focuses on designing and manufacturing integrated automation systems that meet the industry’s highest standards of precision, efficiency, and durability. Our engineering expertise lies in providing turnkey electrical automation projects to optimize the performance of modern industrial manufacturing plants.
