Siemens Snubber Board C98043-A7120-L1 – Essential DC Drive Control Device

In the demanding world of industrial automation products, component-level reliability defines the uptime of entire production lines. Among the small but decisive elements inside a DC drive, the Siemens Snubber Board C98043-A7120-L1 stands out as a true guardian of power electronics. Whether you are maintaining a rolling mill, a paper machine, a crane, or a mine hoist, the snubber circuit is the first line of defence against transient overvoltage spikes that can destroy thyristor bridges in microseconds. For engineers and procurement teams searching for genuine DC Drive Spare Parts, understanding why this particular Snubber board matters is the foundation of long-term asset management.

1. The Physics Behind the Snubber – More Than a Component

Every power electronic switching event, especially in thyristor-based DC drives, generates a rapid change in voltage (dv/dt) and current (di/dt). When a thyristor turns off under inductive load, the energy stored in the circuit inductance does not vanish—it attempts to maintain current flow, creating a high-voltage spike across the semiconductor junction. Without proper absorption, this spike can exceed the device’s breakdown voltage, leading to catastrophic failure. A Snubber network, typically a series resistor-capacitor (RC) arrangement, provides a low-impedance path for this transient energy, clamping the voltage to a safe level and dissipating the excess as heat in the resistor. The Siemens Snubber Board implements a precisely tuned RC snubber for each thyristor pair in the three-phase bridge, turning a destructive impulse into a controlled, damped oscillation.

This is not a generic RC filter. Siemens engineers have matched the capacitance, resistance, and dielectric withstand to the switching characteristics of the SINAMICS DC MASTER power section. The board’s layout minimises parasitic inductance, ensuring that the snubber action begins within nanoseconds of the voltage rise. For plant managers, this translates into one stark figure: the difference between a drive running 80,000 hours and one failing at 15,000 hours often comes down to the health of its snubber network.

2. Siemens C98043-A7120-L1 – Product Identity and Heritage

The part number C98043-A7120-L1 belongs to the family of DC Drive Spare Parts specifically designed for the SINAMICS DC MASTER (often abbreviated as SINAMICS DCM) series, the direct successor to the proven SIMOREG DC-MASTER line. The SINAMICS DC MASTER integrates the ruggedness of the previous generation with the digital flexibility of the SINAMICS family, and it shares many of the SINAMICS tools and components originally developed for AC drives. The snubber board is one of those bridge components—carefully carried over and refined to meet the demands of modern high-performance DC drives. In the standard configuration, the unit combines open-loop and closed-loop control with the power unit in a single compact device, making the snubber board’s dense, space-saving design an integral part of the overall architecture.

Physically, the C98043-A7120-L1 is a glass-epoxy printed circuit board populated with high-voltage film capacitors (polypropylene or polyester dielectric), power wirewound resistors, and sometimes fast recovery diodes, all coated with a protective lacquer to withstand harsh industrial atmospheres. The board mounts directly onto the thyristor module’s terminals, eliminating long leads that would introduce stray inductance and degrade snubber performance. This compact integration is a hallmark of genuine industrial automation products from Siemens.

3. Role Inside the SINAMICS DC MASTER Ecosystem

The SINAMICS DC MASTER (6RA80 series) is not just a DC drive; it is a scalable platform. For standard closed-loop control, the drive comes equipped with the standard Control Unit (CUD). When higher computing power and additional interfaces are needed, the system can be expanded with the Advanced CUD. Throughout this architecture, from the basic 15 A unit up to the large 3000 A cabinet designs, the snubber board remains a constant guardian at the power stage. It works synchronously with the Drive Control Unit’s firing pulses, but it operates entirely in the analogue domain—no firmware, no digital setting can compensate for its absence. When you select a Siemens Snubber Board as a spare part, you are maintaining the exact impedance and thermal footprint that the drive’s protection concept was validated with.

4. Technical Specifications at a Glance

Note: The above values are typical and must be cross-referenced with the drive’s specific hardware manual. For critical applications, always consult Siemens official documentation.

5. Why Genuine Siemens Snubber Board C98043-A7120-L1 Is the Only Safe Choice

A Snubber board is not a place for compromise. Generic or reverse-engineered boards often use capacitors with lower dv/dt ratings or resistors with higher inductance. When such a substitute faces the real switching stress of a 6-pulse thyristor bridge, two things happen: first, the clamp voltage rises above the thyristor’s safe operating area, causing gradual degradation; second, the resistor may heat unevenly, creating hot spots that crack solder joints. Soon, the drive starts reporting spurious overvoltage faults, or worse, a line-side thyristor short-circuits, taking the DC motor armature down with it. Genuine Siemens DC Drive Spare Parts like the C98043-A7120-L1 are tested under worst-case commutation conditions, including pre-fault scenarios with a fully saturated reactor. This level of validation is what makes them indispensable in industrial automation products where safety and uptime are non-negotiable.

From a production engineering standpoint, the original board also guarantees correct creepage and clearance distances according to IEC 61800-5-1. Any substitution that reduces these clearances can lead to flashover at altitudes above 2000 m or in polluted environments. Therefore, when you are rebuilding a SINAMICS DCM power stack, the snubber board part number must match the drive’s MLFB (Machine-Readable Product Code) exactly.

6. HANI – Your Trusted Partner for DC Drive Spare Parts

At HANI, we have seen first-hand how a single failed snubber board can halt a 500-ton extrusion press for days. Our commitment is to supply authentic Siemens Snubber Board units and a broad range of other industrial automation products with full traceability back to the manufacturer. Whether you operate a standalone 6RA80 drive or a multi-motor section in a paper mill, HANI’s inventory covers the C98043-A7120-L1 and its associated power modules, reducing the time you spend waiting for critical spares. Because we focus exclusively on drive systems, our technical team can cross-reference your old SIMOREG boards to the correct SINAMICS replacement, ensuring that you never receive an incompatible part.

7. Identifying the Snubber Board in Your SINAMICS DC MASTER

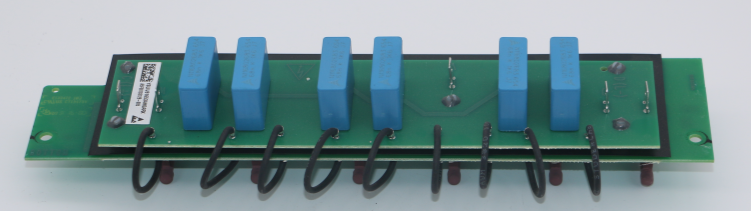

The snubber board is typically located directly underneath the thyristor heatsink assembly, connected to the thyristor’s anode and cathode tabs via short rigid terminals. In the 6RA80 compact design, the board is mounted vertically between the power block and the fan assembly. If you open the drive door and look at the power unit, you will recognise it as a rectangular PCB with several large orange or grey capacitors and rectangular white ceramic resistors. The part number C98043-A7120-L1 is silk-screened on the top copper layer, often near the board edge. Before ordering, always verify the revision state—sometimes an “-L1” suffix indicates a specific voltage or thermal rating. Photographing the board and sharing the image with your spare parts supplier is a prudent practice.

8. Common Failure Modes and Troubleshooting

A well-made Snubber board can last over a decade, but certain operating conditions accelerate ageing. High ambient temperature above 40 °C permanently reduces the capacitance of metallised film capacitors by 2-3% per 1000 hours, gradually softening the snubber effect. Frequent line-side surges or a weak supply grid cause the resistors to operate at their peak power more often, eventually opening the resistive element. Visual inspection can reveal darkening of the PCB under the resistors, cracked capacitor casings, or cold solder joints that appear dull and granular. Electrically, a damaged snubber board manifests as increased DC link overvoltage faults (F60001 in SINAMICS DCM) that occur sporadically, often in the early morning when the supply voltage is highest. Replacing the board before the damage cascades into the power semiconductors is the most cost-effective maintenance strategy for any industrial automation products fleet.

9. Installation Best Practices and Production Value

Swapping a snubber board is a straightforward operation, but attention to detail pays back in years of trouble-free service. Before touching any component, the DC drive must be completely isolated and the DC link capacitors discharged until the voltage falls below 50 V—typically 5 to 10 minutes after power-down. Once the old board is removed, clean the thyristor terminals with isopropyl alcohol to remove any oxide layer that could increase contact resistance. Mount the new Siemens Snubber Board using the original hardware, tightening the nuts to the torque specified on the board (usually 2.5–3.0 Nm). Over-torquing can damage the ceramic standoffs; under-torquing creates hot points. After installation, perform a cold start with the drive in “pulse inhibit” mode, measuring the snubber resistor’s temperature after 30 minutes of operation. A temperature difference of more than 5 °C between symmetrical resistors indicates a connection fault or a mismatch in the capacitor bank. This attention to detail is what separates a typical repair from a production-grade overhaul—a value that HANI strongly advocates for in every maintenance workshop.

10. How the Snubber Board Interacts with the Advancements of SINAMICS DC MASTER

The SINAMICS DC MASTER integrates many tools previously known from AC technology into the DC world. For instance, the Advanced CUD enables high-speed communication via PROFINET and onboard safety functions. Yet, the power stack remains a line-commutated thyristor bridge, fundamentally analogue in its switching behaviour. This is where the snubber board bridges two eras: it protects the semiconductor hardware that the digital controller orchestrates. In regenerative four-quadrant drives, there are two anti-parallel bridges, each requiring its own snubber network. The C98043-A7120-L1 is used in both motoring and regenerating bridges, ensuring that during the crossover dead time, when both bridges briefly block, any residual commutation spike is absorbed without glitch. This harmonious coexistence of modern digital control and classic power protection is what makes industrial automation products from Siemens uniquely dependable.

Frequently Asked Questions

11. Partnering with HANI for Long-Term Drive Maintenance

When you source your C98043-A7120-L1 through HANI, you receive more than a box. You gain access to a network of application engineers who understand how DC Drive Spare Parts fit into the larger picture of your facility’s industrial automation products ecosystem. We maintain stock in key locations to offer short lead times, and every component is packaged with anti-static shielding to preserve the sensitive film capacitors during transport. Our team also provides installation guidance, helping your maintenance crew achieve the shortest possible mean time to repair. In the world of heavy DC drives, where every hour of downtime costs thousands of dollars, this kind of readiness is a competitive advantage.

The Siemens Snubber Board C98043-A7120-L1 may be a small board hidden behind a heatsink, but its contribution to system resilience is immense. As the SINAMICS DC MASTER platform continues to evolve, the core power protection elements remain timeless; they simply work, year after year, as long as they are original and properly maintained. By choosing the right spares, you reinforce the entire drive control infrastructure—one snubber at a time.
