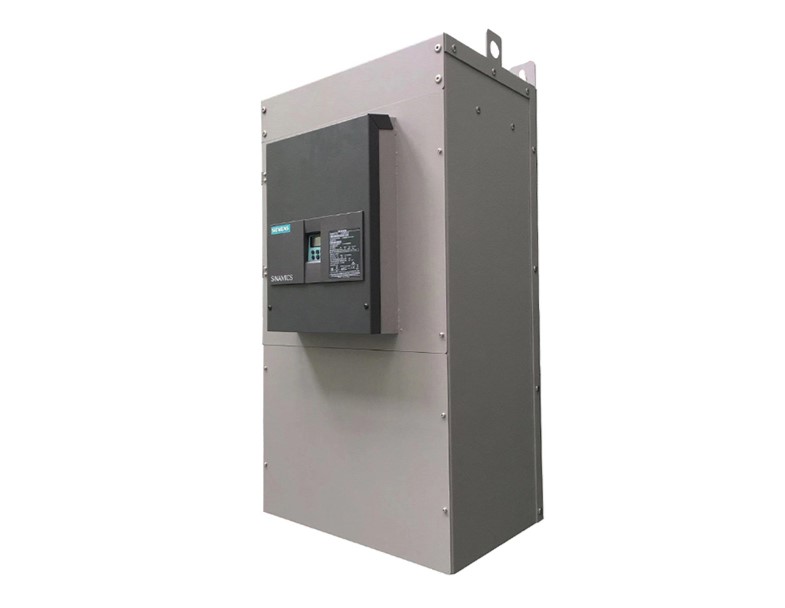

In the domain of heavy industrial automation, electrical drives and control systems must deliver unwavering torque, precise speed regulation, and multi-year reliability under the most demanding conditions. The Siemens 6RA80 series — formally designated SINAMICS DCM (DC Master) — represents the latest generation of fully digital DC converter technology from Siemens, purpose-built to control and power separately excited DC motors across a wide spectrum of industries[reference:0]. When we talk about an Expandable DC Drive solution in the 1000–2000A current range, we are discussing a category of electrical motor control that directly impacts productivity in steel rolling mills, paper machines, mine hoists, cable cars, extruders, and large test benches[reference:1].

For integrators and plant engineers like HANI, selecting the right electrical drives and control architecture means evaluating not only nameplate ratings but also overload capability, communication flexibility, expandability paths, and lifecycle serviceability. The Siemens 6RA80 stands out because it combines a proven thyristor-based power section with a modern 32-bit microcontroller and FPGA co-processor, delivering both raw power handling and sophisticated digital electrical motor control algorithms in a single compact frame[reference:2].

1. Working Principle: Thyristor-Based AC-to-DC Conversion with Dual-Loop Control

Understanding how the Siemens 6RA80 Expandable DC Drive operates begins with the core principle of phase-controlled rectification. Three-phase AC line voltage is fed into a fully controlled thyristor bridge (B6C for 2-quadrant, or (B6)A(B6)C anti-parallel bridge for 4-quadrant operation). The gating unit precisely controls the firing angle of each thyristor — the offset of the firing angle determines the variable DC voltage applied to the motor armature[reference:3]. A thyristor, once fired, remains conductive as long as load current flows; the firing pulse must maintain a duration greater than 60 electrical degrees to ensure reliable commutation[reference:4].

The electrical motor control architecture within the Siemens 6RA80 employs a cascaded dual-loop PI control strategy:

• Inner Current Loop (Armature): A high-bandwidth current controller (≈800 Hz) uses feedback from Hall-effect sensors or AC current transformers to regulate armature current with millisecond-level response. This inner loop provides inherent current limiting, protecting both the thyristors and the motor from overcurrent conditions[reference:5].
• Outer Speed Loop: A lower-bandwidth speed controller (≈80 Hz) compares actual speed feedback — from an incremental encoder, tachogenerator, or EMF estimation — against the speed setpoint. Its output becomes the current reference for the inner loop, ensuring zero steady-state error[reference:6].
• Field Control: A dedicated field rectifier supplies variable excitation current to the motor field winding. Above base speed, the field current is automatically reduced (field weakening), extending the constant-power speed range up to a 1:4 ratio, enabling “high torque at low speed, constant power at high speed” operation[reference:7].

This dual-loop strategy is fundamental to all modern electrical drives and control systems and is a key reason why DC drives remain irreplaceable in applications demanding extreme low-speed torque with rapid dynamic response[reference:8].

2. Technical Specifications at a Glance

The table below consolidates key technical parameters from Siemens documentation and engineering manuals for the SINAMICS DCM 6RA80 series[reference:9][reference:10]. These figures inform proper sizing and integration of the electrical drive.

3. Understanding 2-Quadrant vs. 4-Quadrant Electrical Drives

For electrical drives and control engineers, quadrant classification is a fundamental concept that directly determines the drive’s suitability for specific processes. The table below maps each quadrant to real industrial scenarios relevant to the Siemens 6RA80 Expandable DC Drive.

A 2-quadrant Siemens 6RA80 (type suffix …S22…) employs a single B6C fully controlled bridge, operating in quadrants I and III. It is cost-optimized for simple motoring applications. A 4-quadrant Siemens 6RA80 Expandable DC Drive (…V62…) adds a second anti-parallel bridge, enabling energy regeneration back to the supply during braking — a critical feature for reversing mills, downhill conveyors, and high-inertia test stands[reference:27]. The electrical motor control automatically manages the transition between motoring and regenerating modes based on the torque reference polarity.

4. Expandability: The Core of a Custom Electrical Drive Solution

One of the most compelling reasons the Siemens 6RA80 is specified is its inherent expandability — both in hardware and software. This makes it a truly Custom Electrical Drive Solution adaptable to brownfield retrofits and greenfield designs alike.

4.1 Hardware Expansion — Scaling Current Capacity

The standard single-unit rating of the Siemens 6RA80 reaches 3000 A DC. Through parallel connection of multiple converter units, the total output current can be scaled beyond 8000 A[reference:28]. The expansion approach uses a small-power master Siemens 6RA80 as the control core (retaining the original Siemens control board, firmware, and parameter architecture), while external thyristor power stacks handle the high-current load. Pulse triggering is managed through isolated amplifier boards, and the power unit parameters match the actual installation — these electrical drives and control elements ensure that the expanded system delivers performance identical to a factory-original drive of equivalent rating[reference:29].

For the 1000–2000A range in particular, the expansion configuration typically uses:

• 6RK8013-2/1200A/690V through 6RK8013-2/2000A/690V models — these are pre-engineered expansion units that map directly to the standard Siemens type spectrum, eliminating any need for parameter conversion[reference:30].
• Power stacks using disc-type (hockey-puck) thyristors on XF-series aluminum extruded heatsinks for 800–2000A, or copper heatsink assemblies with multi-disc compression for 2000–3500A[reference:31].
• Sealed forced-air cooling ducts that envelope power components, ensuring simultaneous cooling of snubber networks and semiconductor fuses[reference:32].

4.2 Software Expansion — Drive Control Charts (DCC) & CF Card

Compared to its predecessor 6RA70, the Siemens 6RA80 introduces Drive Control Charts (DCC) — a graphical programming environment that allows users to implement drive-specific logic directly on the converter. This effectively gives the Siemens 6RA80 the capability of a small PLC, enabling complex interlocking, sequencing, and arithmetic operations without an external controller[reference:33]. DCC programs are stored on an optional CF card, which also holds complete parameter backups for rapid device replacement[reference:34].

Beyond DCC, the standard firmware includes free function blocks for speed/torque/position control modes, friction compensation, S-curve ramps, and winding/tension macros. An optional “Techno” software package adds advanced algorithms for gear synchronization, flying shear, spindle positioning, and hydraulic press force control — all within the same electrical drives and control platform[reference:35].

5. Key Features of Siemens 6RA80 Electrical Motor Control

The Siemens 6RA80 Expandable DC Drive incorporates several engineering features that distinguish it in the field of industrial electrical motor control:

1. Onboard PROFIBUS-DP as Standard. Unlike the 6RA70, which required an optional communication card for fieldbus connectivity, the Siemens 6RA80 includes PROFIBUS-DP on the base unit, along with an increased quantity of digital and analog I/O[reference:36]. Optional CBE20 communication boards extend this to PROFINET, EtherNet/IP, or CANopen, facilitating integration into Siemens TIA Portal and third-party automation environments[reference:37].

2. ENERGY EFFICIENCY. Advanced power conversion algorithms in the Siemens 6RA80 optimize energy consumption. In 4-quadrant operation, regenerative braking feeds kinetic energy back to the supply rather than dissipating it as heat — a significant efficiency gain in cyclic applications like rolling mills and hoists[reference:38]. Converter efficiency ratings typically exceed 98%[reference:39].

3. Comprehensive Protection Functions. The Siemens 6RA80 integrates multiple layers of protection: overvoltage, undervoltage, overcurrent, overtemperature (I²t monitoring for both motor and converter), phase-failure detection, and semiconductor fuse coordination[reference:40]. The thermal motor model continuously calculates winding temperature based on load history, issuing warnings and fault signals before damage occurs[reference:41]. Safety function STO (Safe Torque Off) is available in accordance with ISO 13849-1[reference:42].

4. Compact Single-Side Maintenance Design. The Siemens 6RA80 features a slim, space-saving mechanical design with single-side access for maintenance — service personnel do not need to open rear cabinet doors, which simplifies panel layout and reduces cabinet depth requirements[reference:43].

5. Automatic Optimization. The drive includes automatic commissioning routines: motor data identification, armature circuit resistance/inductance measurement, field characteristic optimization, and speed controller auto-tuning. These functions significantly reduce commissioning time for electrical drives and control systems[reference:44].

6. 12-Pulse Parallel Operation. In high-power applications, two Siemens 6RA80 units can be configured in a 12-pulse parallel arrangement with phase-shifted transformer secondaries. This topology reduces line-side harmonic distortion and improves power factor, making it the preferred architecture for large rolling mill main drives[reference:45].

6. Industrial Applications

The Siemens 6RA80 has been deployed in mission-critical installations around the world, including retrofits at Baosteel’s 2050 hot-strip mill and numerous cold rolling mills for both ferrous and non-ferrous metals[reference:46][reference:47]. The following table summarizes key application sectors served by this Expandable DC Drive:

7. Migration Path: 6RA70 to 6RA80 Parameter Mapping

For plants upgrading legacy SIMOREG systems, the Siemens 6RA80 maintains backward compatibility in many key parameters while adding significant new functionality. Below is a partial parameter cross-reference table based on Siemens official documentation[reference:48]:

Note: The Siemens 6RA80 parameter numbering system aligns with the broader SINAMICS family — parameters from r50000 onward are device-specific, while those below are shared across the SINAMICS platform (S120, G120, G150, etc.), simplifying multi-drive engineering consistency[reference:49].

8. Commissioning and Parameterization

Quick commissioning of the Siemens 6RA80 follows a structured workflow designed to minimize on-site engineering hours:

1. Set parameter access level to Expert (P0003 = 3).
2. Enter Quick Commissioning mode (P0010 = 1).
3. Configure supply voltage parameters: P50078[0] = armature line voltage, P50078[1] = field line voltage[reference:50].
4. Set field operation mode (P50082) and speed feedback source (P50083 = 2 for encoder, = 3 for EMF).
5. Enter motor nameplate data: P50100 (armature current), P50101 (armature voltage), P50102 (field current), P50104 (rated speed).
6. Configure ramp times: P50303 (ramp-up), P50304 (ramp-down).
7. Exit Quick Commissioning (P3900 = 3), which triggers automatic motor data calculation and controller pre-setting.
8. Perform optimization runs: armature current loop optimization, field current optimization, and speed loop optimization (with motor coupled or locked rotor as applicable)[reference:51].

Commissioning can be performed via the BOP20 basic panel, the AOP30 graphical panel with commissioning wizard, or the STARTER PC software (v4.3.3+) connected via USB-to-PROFIBUS interface[reference:52].

9. Built-in Protection Mechanisms

Reliability of electrical drives and control equipment in harsh industrial environments depends on comprehensive protection. The Siemens 6RA80 includes the following protection layers[reference:53][reference:54]:

10. Service, Spare Parts, and Lifecycle Support

Siemens provides a comprehensive global service infrastructure for the Siemens 6RA80 series. The standard factory warranty ensures a minimum 12-month coverage for end users[reference:55]. Extended warranty programs are available that include exchange or repair of registered products, dedicated service assistance from authorized Siemens experts, and flexible contract terms extending coverage for up to 5 years[reference:56].

Spare parts availability is a critical consideration in electrical drives and control lifecycle management. Key replaceable modules for the Siemens 6RA80 include:

• CUD (Control Unit DC) — the main controller card with EEPROM for device data storage.
• Power supply boards (2Q and 4Q variants).
• Field exciter supply modules.
• Voltage monitoring cards and SCR modules.
• Cooling fans (speed-monitored).

Siemens customer service is available 24/7 for fast ordering and delivery of spare parts and repair services[reference:57]. The Technical Support hotline (400-810-4288 in China) provides direct access to application engineers for troubleshooting and commissioning guidance[reference:58].

11. Frequently Asked Questions (FAQ)

12. Why the Siemens 6RA80 Expandable DC Drive Is the Right Choice

For plant engineers, system integrators, and maintenance managers — including professionals like HANI who are responsible for selecting and deploying reliable electrical drives and control systems — the Siemens 6RA80 delivers a compelling value proposition:

• Proven Technology: Built on decades of Siemens DC drive expertise, with thyristor power sections designed for 100,000+ hours MTBF[reference:73].
• Scalable Architecture: A single control platform spans from 15 A to over 8000 A, simplifying spares management and engineering consistency across a plant.
• Global Support Network: Siemens’ worldwide service infrastructure ensures rapid access to spare parts, technical support, and repair services, minimizing downtime.
• Future-Proof Integration: The SINAMICS family compatibility means the Siemens 6RA80 integrates natively with Siemens’ broader digitalization portfolio, including TIA Portal, SIMATIC PLCs, and cloud-based analytics platforms.
• Cost-Effectiveness: The expansion capability (small-drive-controlling-large-power) significantly reduces capital expenditure compared to purchasing a factory-original high-current drive of equivalent rating, while maintaining identical performance and parameter compatibility[reference:74].

The Siemens 6RA80 Expandable DC Drive in the 1000–2000A range represents a mature, thoroughly engineered electrical motor control solution that continues to serve as the backbone of heavy industrial drive systems worldwide. Whether you are upgrading a legacy 6RA70 installation, designing a new rolling mill drive system, or seeking a reliable Custom Electrical Drive Solution for a specialized application, the Siemens 6RA80 merits serious consideration as the core element of your electrical drives and control architecture.
