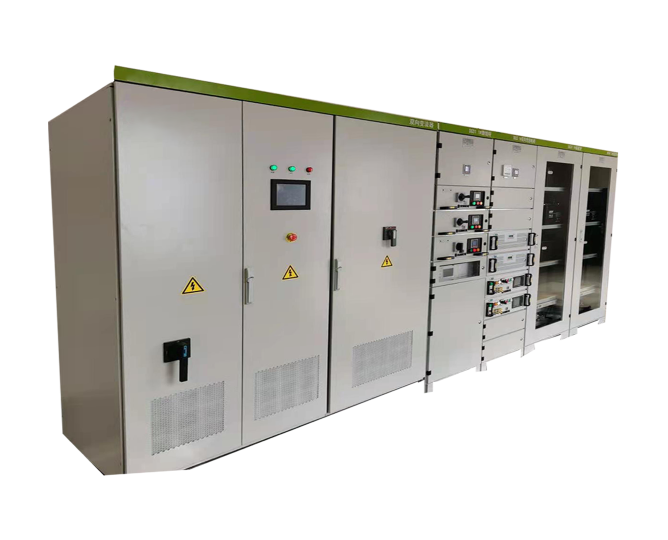

In modern industrial automation, the electrical control panel serves as the operational nerve center of any motor drive system. When it comes to direct current (DC) motor applications—particularly in heavy industries such as metallurgy, metal processing, and continuous production lines—the DC Drive Control Cabinet stands as a mission-critical assembly. A well-designed electrical control panel for DC Drives must deliver precise speed regulation, robust torque control, and unwavering reliability under the harshest operating conditions. At HANI, we engineer custom Control Cabinet solutions that integrate world-class digital drive technology with purpose-built power expansion modules, ensuring each electrical control panel we deliver meets the exacting demands of the application it serves.

DC drive systems remain irreplaceable in numerous industrial sectors where superior low-speed torque characteristics, wide speed range capability, and exceptional dynamic response are non-negotiable requirements. The electrical control panel housing these drive systems must be engineered with meticulous attention to thermal management, electromagnetic compatibility, and long-term serviceability. Whether the application involves recoiling machines, wire-drawing lines, electrolytic pickling systems, or electroplating production lines, the DC Drive Control Cabinet forms the backbone of reliable operation. Below, we present a comprehensive exploration of our custom electrical control panel capabilities, technical specifications, and engineering philosophy.

Two Proven Approaches to DC Drive Control Cabinet Engineering

Our design methodology for each electrical control panel follows two distinct yet complementary approaches, allowing us to tailor every DC Drive Control Cabinet to the specific technical requirements and budget considerations of the project. Both approaches result in a fully integrated Control Cabinet solution that undergoes rigorous factory acceptance testing before shipment.

Table 1: Fully digital DC drive platforms integrated within our custom electrical control panel assemblies. Other brands available upon request.

Expanded-Rating Power Module Technology: Deep Dive

Our expanded-rating DC Drives power modules represent a significant engineering advancement in electrical control panel design. By combining a world-class digital control core with our proprietary interface boards and amplifier boards, we achieve a high-power Control Cabinet solution that rivals the performance of fully integrated commercial drive systems. The intellectual property embedded in these interface cards—including gate drive amplifier boards and signal conditioning modules—enables precise firing control of high-power thyristors while maintaining the sophisticated control algorithms of the digital core.

Table 2: Technical specifications of the expanded-rating fully digital DC power module integrated within the electrical control panel.

Industrial Applications of DC Drive Control Cabinets

The DC Drive Control Cabinet finds its most demanding applications in the metallurgical sector, where precise speed regulation and robust tension control directly influence product quality and production efficiency. A properly configured electrical control panel for DC Drives ensures smooth acceleration ramps, precise steady-state speed holding, and rapid dynamic response to load disturbances. Below are the primary application areas where our custom Control Cabinet solutions excel:

• ▶Recoiling Machines (Rewinders): Demanding constant-tension winding control across varying coil diameters—an electrical control panel with advanced inertia compensation is essential.
• ▶Wire-Drawing & Stranding Lines: Multi-stand coordinated speed control requiring high dynamic response from each DC Drive Control Cabinet in the line.
• ▶Cleaning & Pickling Lines: Corrosive atmosphere considerations demand an electrical control panel with appropriate ingress protection and corrosion-resistant construction.
• ▶Electrolytic Descaling Units: High-current DC supply requirements integrated into the Control Cabinet for seamless process integration.
• ▶Electroplating Production Lines: Precise DC current regulation within the electrical control panel ensures uniform plating thickness and surface quality.
• ▶Cleaning & Grinding Units: Continuous-duty operation where the DC Drive Control Cabinet must deliver unwavering reliability shift after shift.

Tailored Electrical Control Panel Engineering Services

Every industrial facility has unique spatial constraints, power distribution requirements, and operational protocols. Our electrical control panel engineering service begins with a thorough assessment of these parameters. We design each DC Drive Control Cabinet to integrate seamlessly with existing plant infrastructure—from busbar entry positions and cable gland layouts to communication protocol compatibility (PROFIBUS, PROFINET, Modbus RTU/TCP, Ethernet/IP). The Control Cabinet can be configured with auxiliary components such as main circuit breakers, line reactors, EMC filters, braking modules, and human-machine interface (HMI) panels according to specification.

For applications requiring non-standard drive brands beyond the ABB, Siemens, and Ansaldo platforms listed above, we offer fully tailored electrical control panel integration. Our engineering team has experience with a wide range of DC Drives from global manufacturers, and we welcome the opportunity to build a Control Cabinet around the drive platform that best suits your maintenance inventory and operational preferences. This flexibility extends to enclosure dimensions, color finishes, labeling standards, and documentation packages—every electrical control panel we ship is accompanied by comprehensive schematics, bill of materials, and test reports.

Engineering Fundamentals Behind Reliable DC Drive Control Cabinets

The design of a robust electrical control panel for DC Drives rests on solid electrical engineering principles. Thyristor-based DC drive systems operate on the principle of phase-controlled rectification, where the firing angle of silicon-controlled rectifiers (SCRs) determines the average DC output voltage applied to the motor armature. The mathematical relationship is well-established: for a three-phase fully controlled bridge, the average DC output voltage V_dc = (3√3/π) · V_m · cos(α), where V_m is the peak phase voltage and α is the firing angle. The digital control core within the DC Drive Control Cabinet continuously adjusts α through closed-loop PID algorithms to maintain precise speed or torque setpoints.

Thermal management is equally critical. The power semiconductor devices within the Control Cabinet generate substantial heat during operation—particularly at high current levels approaching the 4000 A rating of our expanded modules. Forced air cooling with carefully engineered duct geometry ensures that junction temperatures remain within safe limits. The series duct configuration routes cooling air sequentially through heat sinks, while the parallel duct design supplies fresh ambient air to each power module independently. The choice between these cooling architectures depends on the specific electrical control panel layout and the ambient temperature conditions of the installation site.

Electromagnetic compatibility (EMC) is another cornerstone of our electrical control panel design. The rapid switching of thyristors generates harmonic currents that can interfere with adjacent sensitive equipment. Proper cable segregation, grounded shielding, input line reactors, and EMC filters—all integrated within the DC Drive Control Cabinet—mitigate these effects and ensure compliance with IEC 61800-3 standards. Each Control Cabinet undergoes insulation resistance testing, dielectric withstand testing, and functional verification before leaving our facility.
