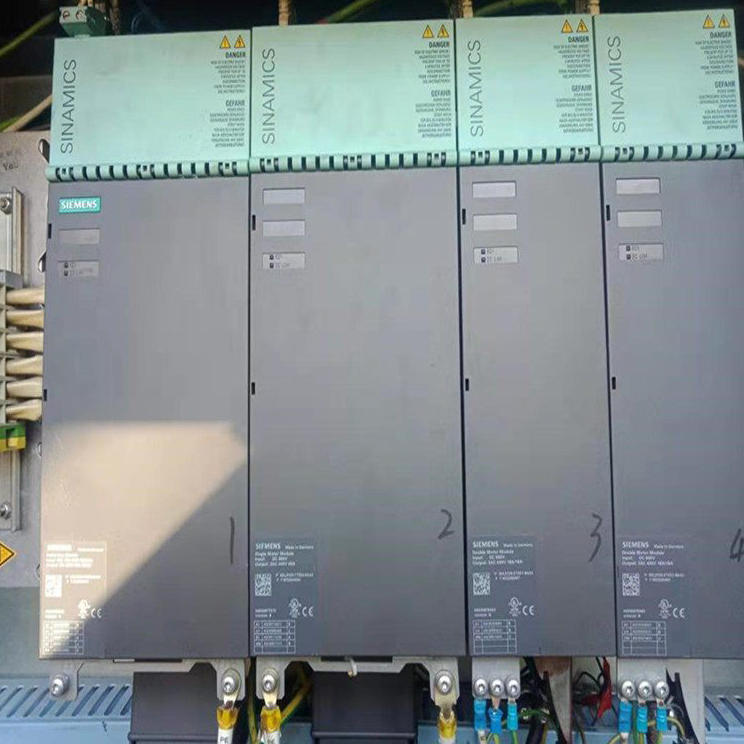

1. The Architecture of Advanced DC Drives

The Siemens 6RA80 expandable DC drive represents a strategic engineering approach to high-power electrical drives and control solutions. Rather than being constrained by fixed catalog ratings, the expandable platform leverages the world-class SINAMICS DCM control electronics—the same core used in the standard Siemens 6RA80 series—and pairs it with a custom-engineered power section. This methodology, known colloquially as “capacity expansion” or “power scaling,” provides a bridge between standard product lines and the realities of heavy industry, where space constraints, voltage requirements, and overload profiles rarely align neatly with off-the-shelf options.

At its heart, any DC drive is a controlled rectifier converting fixed AC mains voltage into adjustable DC armature and field voltages. The control board’s algorithms—armature current PI regulation, field weakening profiles, EMF estimation, and thyristor firing pulse generation—are the intellectual property that defines drive performance. By preserving this intact while re-engineering the thyristor stack, heatsink, and buswork, one achieves a device that is functionally identical to a factory-built Siemens 6RA80 drive in terms of tuning, communication, and diagnostic behavior, yet capable of delivering currents far beyond the standard catalog limits. For plants already standardized on Siemens DC drives, this consistency is invaluable.

2. Why Choose an Expandable DC Drive Platform?

Traditional procurement of high-current DC drives often involves long lead times, prohibitive costs, and limited form-factor options. The Siemens 6RA80 expandable DC drive philosophy addresses these pain points directly. Consider a typical retrofit scenario: an aging 2000A analog drive controlling a steel mill unwinder must be replaced. The standard Siemens 6RA80 lineup for 2000A requires a specific large cabinet footprint that may not fit the existing powerhouse layout. An expandable solution, however, can be built on a chassis that matches the mounting dimensions of the legacy unit, using the same control electronics as a much smaller—and readily available—base drive.

This is not merely a cost-reduction exercise, though the economics are compelling. It is about operational continuity. The control board retains all the digital communication protocols native to the Siemens 6RA80 family. Whether your plant network operates on PROFIBUS DP, PROFINET IO, or DeviceNet, the expandable drive integrates seamlessly. The BOP20 Basic Operator Panel or the advanced AOP30 Advanced Operator Panel functions exactly as expected, with identical parameter numbering (e.g., p50100 for rated armature current, p50300 for line supply voltage). For maintenance teams, this means zero learning curve.

Furthermore, the expandable nature of these electrical drives and control systems allows for specific overload sizing. A rolling mill might require 150% overload for 60 seconds; a mine hoist could demand 200% for 15 seconds. Standard drives are rated for specific overload classes (typically Class II or Class IV per IEC 60146-1-1). An engineered expandable drive can be oversized thermally to meet the exact duty cycle, avoiding both underrating (premature failure) and overrating (wasteful capital expenditure).

3. Technical Specifications & Performance Data

The table below outlines the standard reference parameters for the expandable DC drives platform. These figures serve as a guideline based on typical configurations; actual ratings may be adjusted for specific applications as noted throughout this document. All ratings assume an ambient temperature of 40°C and an installation altitude below 1000m, in accordance with IEC 60146 derating principles.

Note: Parameters may vary depending on the specific control system integrated (ABB DCS800, Siemens 6RA80, Eurotherm 590C/P, or Ansaldo SPDM series). The data above is for reference; please consult for exact specifications tailored to your electrical drives and control project requirements. At the time of writing, HANI engineering teams have indicated that these guidelines accurately reflect standard deliverables for most industrial DC drives.

4. Decoding the Expandable Drive Model Structure

The model designation for an expandable Siemens 6RA80 DC drive follows a structured nomenclature that encodes critical configuration data. Understanding this code ensures accurate specification and avoids misapplication. The primary prefix identifier denotes the control platform—for example, RCS800 indicates the ABB DCS800 series expansion platform, while RSS80 signifies the Siemens 6RA80 series base. Additional prefixes like RE590C/P designate Eurotherm 590C/P systems, and RPDM covers the Ansaldo SPDM range.

As an illustrative example, a code segment RSS80-S02-07-2-0680-R would denote a Siemens 6RA80 based reversible drive, rated for 315–690VAC input, utilizing an anti-parallel dual bridge (4-Q) configuration, delivering 680ADC nominal output, with power connections exiting to the right-hand side. This logical coding system streamlines order engineering and ensures that every electrical drives and control stakeholder, from procurement to commissioning, shares a common understanding.

5. Key Engineering Features & Construction

The expandable Siemens 6RA80 DC drives incorporate several proprietary design elements that enhance reliability and serviceability in harsh industrial environments:

• ▶
  High-Quality Thyristor Modules: The power section employs premium grade, pressure-contact thyristors with verified dv/dt and di/dt ratings. Proper snubber circuitry is integrated to protect against commutation transients, a critical aspect of electrical drives and control longevity.
• ▶
  Extruded Aluminum Heatsink Profiles: Rather than cast or bonded fin designs, extruded profiles ensure uniform thermal resistance. Note that in these designs the heatsink typically carries potential; proper isolation and clearance distances per EN 50178 are maintained.
• ▶
  Bottom-Blown Cooling Architecture: A turbine-style centrifugal fan forces air vertically through the heatsink channels. This bottom-up airflow path minimizes the recirculation of heated air and allows for predictable thermal management. Air filters are accessible from the front for routine maintenance.
• ▶
  Busbar Arrangement for Paralleling: For units rated 2000A and above, a left/right dual-side busbar egress is standard, facilitating clean DC bus paralleling for even higher current applications. This modular approach is a cornerstone of scalable DC drives engineering.
• ▶
  Full Protocol Compatibility: The control section natively supports PROFIBUS, CAN-BUS, DeviceNet, and USS protocols, all without external protocol converters, preserving the digital integration expected of modern Siemens 6RA80 systems.

6. Application Domains for High-Power DC Drives

The adaptability of the Siemens 6RA80 expandable DC drive makes it suitable for a wide array of heavy industries. Below are several scenarios where these electrical drives and control solutions provide a decisive advantage:

7. Siemens 6RA80 DC Drives: Standard vs. Expanded Comparison

The expanded Siemens 6RA80 solution should not be viewed as a compromise. In fact, the only functional difference between a standard catalog drive and a properly engineered expandable drive is the current rating of the power section. The table below clarifies the relationship:

8. Sizing and Configuration Guidance

Proper selection of an expandable Siemens 6RA80 drive hinges on a few fundamental motor nameplate data points: rated armature voltage, rated armature current, and the overload profile expressed as a factor of rated current over a defined time interval. The standard design basis for these expandable units is 1.5x rated current for 60 seconds, aligning with common heavy-industry duty cycles. However, if the application demands 2.0x for 30 seconds, the thermal mass of the thyristor-heatsink assembly must be increased accordingly.

The AC supply voltage category directly determines the achievable DC bus voltage. As a rule of thumb with a six-pulse fully controlled thyristor bridge, the maximum DC voltage is approximately 1.35 times the RMS line-to-line AC input voltage. Thus, a drive specified for the 315–690VAC range can output up to approximately 930VDC at full conduction. It is critical never to operate a drive above its rated insulation voltage class; the expandable DC drives described here maintain all required dielectric withstand ratings per IEC 61800-5-1.

Whether specifying a non-reversible (S01, 2-Q) or reversible (S02, 4-Q) unit depends entirely on the process requirement. Regenerative braking into the AC line requires the dual anti-parallel bridge topology of the 4-Q design. The Siemens 6RA80 expandable DC drive in its reversible form manages the circulating current between the two bridges with the same sophisticated logic as the standard SINAMICS DCM, ensuring a smooth zero-crossing transition without torque gaps.

9. Thermal Management and Installation Practice

Effective heat dissipation is paramount in any high-power electrical drives and control installation. The expandable drive’s V2 through V4 housing classes are engineered for forced-air cooling. The bottom-blown configuration, drawing ambient air through a washable filter medium, pushes air vertically through the thyristor heatsink matrix. The heated exhaust exits at the top of the enclosure. For installations in polluted environments, optional IP54 cabinet integration with air-to-water heat exchangers can be arranged.

Adequate clearance around the unit must be provided per local electrical code. Typically, a minimum of 200mm is recommended above the unit for unrestricted hot air egress, and 100mm on each side for cooling air intake and general access. The drive’s control electronics are galvanically isolated from the power section, but all external control wiring should be shielded and routed independently of the power cables to mitigate electromagnetic interference—a standard practice in precision DC drives applications.

10. A Note on Application Engineering & HANI Standards

When deploying an expandable Siemens 6RA80 system, collaboration with experienced application engineers is essential. The specification process involves a dialogue about actual load inertia, required dynamic response, field weakening range, and any harmonic mitigation strategy on the AC supply (such as 12-pulse transformers or active front ends). In many global projects, the HANI engineering group’s guidelines for heavy-duty electrical drives and control implementations have served as a useful reference framework for defining performance criteria, particularly regarding short-term overload tolerance and ambient temperature derating schedules.

The ultimate goal is a drive system that looks, behaves, and can be serviced exactly like a standard Siemens 6RA80 DC drive, but with the power capacity to meet the specific demands of the driven machinery. This approach preserves the integrity of the Siemens automation ecosystem while unlocking a level of flexibility in electrical drives and control that standard catalog products alone cannot always provide. For projects where the standard portfolio hits its limits, the expandable DC drive platform is a mature, field-proven alternative.
