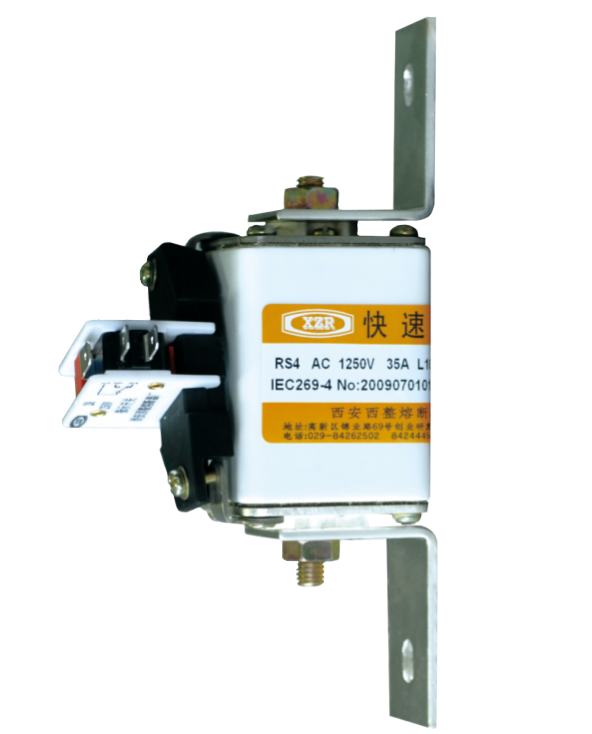

Xizheng Fuse for DC Drives – Electrical Control Devices and Protection
Ultra‑fast semiconductor fuses engineered for reliable protection of DC drive power stacks, ensuring uninterrupted operation in the most demanding industrial automation environments.
In heavy industrial settings, the reliability of DC Drives is non‑negotiable. Whether powering a rolling mill, a mine hoist, or a large extruder, the thyristor and diode modules inside a DC converter represent a significant capital investment—and they are vulnerable. A single short‑circuit event can destroy a power stack in microseconds. This is precisely where the Xizheng Fuse proves its value as a critical line of defence. As specialised Electrical Control Devices, these semiconductor fuses are not generic over‑current protective elements; they are precision‑engineered industrial automation products designed to limit fault let‑through energy (I²t) to levels that power semiconductors can safely withstand. The difference between a standard fuse and a Xizheng semiconductor fuse is the difference between a controlled shutdown and a catastrophic drive failure.
The physics is clear: a thyristor has a well‑defined surge current rating and a maximum I²t withstand. When a downstream fault occurs, the protective Fuse must interrupt the fault current and extinguish the arc faster than the thyristor’s junction reaches destructive temperature. Xizheng Electrical Control Devices for DC Drives achieve this by using a silver‑element design with sand‑filled arc‑quenching envelopes, precisely calibrated to achieve sub‑millisecond clearing times at rated voltage. For plant engineers who specify industrial automation products, understanding the performance of the protection devices that guard their drive systems is every bit as important as selecting the drive itself. HANI has integrated Xizheng fuses into numerous DC drive retrofits, confirming their consistent performance and reliable protection in steel, paper, and mining applications.
Why Semiconductor Fuses Are Essential Electrical Control Devices for DC Drives
A Fuse for power semiconductor protection must meet the requirements of IEC 60269‑4 and, for the North American market, UL 248‑13. These standards define characteristics such as breaking capacity, power dissipation, and—most critically—the operating I²t and clearing I²t. Xizheng fuses, as dedicated Electrical Control Devices, are designed with low melting I²t values that coordinate with the withstand ratings of modern thyristors and diodes. They are true industrial automation products, not repurposed distribution fuses, and they maintain consistent performance across their full DC voltage rating without derating. In DC Drives, where fault currents can be extremely high and rise rapidly due to low circuit inductance, only a purpose‑built semiconductor Fuse can reliably protect the converter.
Xizheng DC Semiconductor Fuse – Performance Data
The following table presents the key electrical parameters for representative Xizheng fuse types commonly applied in DC drive protection. All data are based on standard ambient conditions (25 °C) and a time constant of 10 ms for DC applications, in accordance with IEC 60269‑4. These industrial automation products are rated for continuous operation at the stated voltage and current without nuisance opening.
| Fuse Type | Rated DC Voltage | Current Range (A) | Breaking Capacity (kA) | Pre‑arcing I²t (A²s) at 660 V | Typical Application |
|---|---|---|---|---|---|
| XZ‑DC 500V/63A | 500 V DC | 10–63 A | 100 | 120–1,800 | Small DC drives, field exciter protection |
| XZ‑DC 690V/200A | 690 V DC | 80–200 A | 100 | 2,400–22,000 | Medium‑power DC drives: extruders, winders |
| XZ‑DC 1000V/400A | 1,000 V DC | 160–400 A | 100 | 18,000–115,000 | Heavy‑duty DC drives, cranes, hoists |
| XZ‑DC 1250V/800A | 1,250 V DC | 315–800 A | 100 | 85,000–620,000 | Large mill drives, mine winders |
| XZ‑DC 1500V/1250A | 1,500 V DC | 500–1,250 A | 100 | 220,000–1,500,000 | Multi‑megawatt DC converters, smelting |
* All values are subject to the standard tolerances of IEC 60269‑4. The correct Fuse must be selected based on the specific drive’s semiconductor withstand I²t, the available prospective short‑circuit current, and the system DC voltage. As with all Electrical Control Devices in industrial automation products environments, coordination studies should be performed to ensure discrimination.
Fuse Selection Principles for DC Drive Protection
Selecting the correct Fuse for a DC Drive requires more than matching the drive’s rated current. The primary selection criterion is the relationship between the fuse’s total clearing I²t and the semiconductor’s maximum permissible I²t at the applied fault voltage. An effective Electrical Control Devices protection strategy ensures that the fuse clears the fault before the thyristor junction temperature exceeds its critical limit. Xizheng fuses are documented with both pre‑arcing and clearing I²t values, allowing drive designers to verify coordination against the specific power module datasheet. This level of data transparency is expected of genuine industrial automation products used in mission‑critical DC converter applications.
Ambient temperature and enclosure conditions also influence the effective rating of a semiconductor Fuse. Xizheng provides derating curves for elevated temperatures, enabling control panel designers to select a fuse that will not nuisance‑open when the Electrical Control Devices compartment reaches 40 °C or 50 °C. Additionally, the fuse mounting—whether in a bolted clip or a DIN‑rail holder—must be scrutinised for contact resistance, as poor connections can generate local heating that pre‑ages the fuse element. These practical considerations separate generic industrial automation products from purpose‑engineered protection solutions.
DC Drive Applications Relying on Xizheng Fuse Protection
The Xizheng Fuse range is installed in a variety of DC Drives across heavy industries. In each case, the fuse acts as a silent guardian, ready to interrupt a fault current within milliseconds and save the power stack from destruction.
Metal Rolling Mills
Main stand drives and coilers in hot and cold mills use DC Drives rated from hundreds to thousands of amps. Xizheng high‑voltage Electrical Control Devices protect the parallel thyristor stacks against the severe fault currents that can arise from a flashover or a motor winding fault.
Mining & Cement
Crushers, conveyors, and ball mills rely on rugged DC Drives. The dusty and vibration‑prone environment demands industrial automation products like Xizheng fuses that maintain consistent protection without fatigue or false trips.
Paper & Converting
Paper machine sections and winders use multiple coordinated DC Drives. A fuse that clears safely on one section prevents a cascade trip, and Xizheng’s precise I²t specifications help engineers design this discrimination.
Frequently Asked Questions (FAQ)
Protect Your DC Drive Investment with Xizheng Semiconductor Fuses
The cost of a single power stack failure in a large DC Drive can exceed tens of thousands of euros in repair parts and lost production. In comparison, the cost of equipping each drive cabinet with correctly specified Xizheng Fuse protection is negligible. As Electrical Control Devices go, semiconductor fuses are among the most cost‑effective forms of insurance available to the plant manager. The Xizheng range brings together IEC‑compliant design, documented I²t coordination, and the long‑term reliability that heavy industry demands from its industrial automation products.
HANI, with extensive experience in DC drive retrofits and panel building, recommends Xizheng fuses as a standard protection element for all DC Drives installations. The combination of proven performance, comprehensive technical documentation, and ready availability makes them a preferred choice among industrial automation products. When uptime is not negotiable, protect your drives with the fuse that was engineered for the task.
