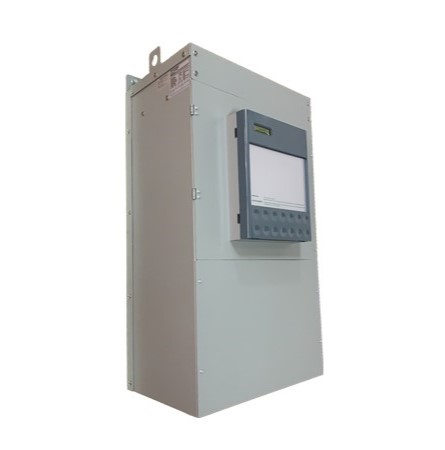

1. The Expandable 590 Architecture – Proven Control, Custom Power

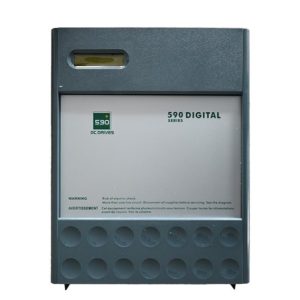

The 590C DC drive and its successor, the Parker 590P, represent one of the most widely installed families of microprocessor-based DC drives in the world. Renowned for their adaptive current loop, configurable I/O, and straightforward commissioning via the DSELite or Parker Drive QuickTool software, these drives have been the backbone of countless electrical drives and control systems in paper, metal, rubber, and plastics industries. The expandable version of the 590C/590P expandable DC drive takes this trusted control platform and marries it with a customer-engineered power section capable of delivering currents far beyond the standard 590P frame sizes.

In a standard catalog, the Parker 590P series tops out around 2800A for certain frame sizes, and the earlier Eurotherm 590C scaled similarly. When a continuous galvanizing line or a sectional paper machine requires a single 3500A armature converter, the expandable approach eliminates the need for paralleling multiple units. The genuine control board—whether Eurotherm 590C or Parker 590P—is mounted in a custom chassis with oversized thyristor stacks, busbars, and cooling. Because the firmware and tuning parameters are identical, commissioning and maintenance procedures remain unchanged.

2. The Rationale for Expandable 590C/590P DC Drives

Many mature industrial facilities continue to rely on DC drives for their unmatched torque response and direct thyristor-based simplicity. The stock of legacy Eurotherm 590C and Parker 590P hardware is substantial, and plant teams are deeply familiar with their menu trees, diagnostic codes, and expansion cards. Replacing an entire drive park with a different manufacturer simply to achieve higher current would introduce retraining costs and commissioning risks. The expandable 590C/590P expandable DC drive circumvents this by delivering the same user experience at the required power level.

Cost and lead-time are further motivations. A standard 4000A DC drive may carry a very long factory lead-time and cost premium. An expandable solution based on a smaller, readily available control unit can be assembled and delivered in a fraction of the time. For electrical drives and control upgrade projects, this can mean the difference between completing a shutdown on schedule and incurring costly overruns.

3. Reference Performance Data – Expandable 590C/590P Series

The following table provides guideline ratings and mechanical dimensions for the expandable 590C DC drive and Parker 590P platform. These values assume standard six-pulse thyristor topology, 40°C ambient, and an installation altitude of ≤1000 m as per IEC 60146 base derating. All figures are to be confirmed for the specific electrical drives and control duty cycle. The prefix RE590C/P in the model code denotes that the control system is based on Eurotherm 590C or Parker 590P electronics.

Note: The above parameters are for reference only and may vary depending on whether the base control is a 590C DC drive or a Parker 590P. Final certified drawings and ratings are provided after a detailed review of your overload requirements. As HANI application standards often recommend, a base overload capacity of 1.5× rated current for 60 s is used unless a more severe duty is specified.

4. Model Code Structure for the 590C/590P Expandable Platform

The expandable 590C/590P expandable DC drive follows a consistent part-numbering logic that encodes the control type, mode, voltage class, bridge topology, current rating, and connection orientation. The primary identifier RE590C/P indicates that the system is built around a Eurotherm 590C or Parker 590P control module. Other prefixes such as RCS800 (ABB DCS800) or RSS80 (Siemens 6RA80) designate different control ecosystems, but here we focus on the RE590C/P family.

As an example, RE590C/P-S02-10-2-2200-L defines a 4-Q Parker 590P (or 590C DC drive) expandable unit rated for 450–990VAC input, 2200ADC output, with left-side cable connections. This transparency helps integrators and end users to specify the correct DC drives without confusion.

5. Core Design Features of the Expandable 590 Series

The expandable 590C/590P expandable DC drive incorporates several well-proven engineering solutions designed to achieve operational reliability and ease of service:

• ▶
  Preserved 590C/590P Control Board: The drive retains an unmodified Eurotherm/Parker control PCB. All adaptive current-loop compensation, speed PID, and field-weakening algorithms function exactly as in the standard catalog product.
• ▶
  High-Surge Capsule Thyristors: Power stacks use industrial-grade phase-control thyristors with documented I²t and di/dt withstand ratings. Snubber networks are sized to clamp commutation voltage overshoot within safe limits.
• ▶
  Bottom-Blown Cooling with Extruded Heatsinks: A centrifugal fan pushes air from the bottom through finned aluminium extrusions. The vertical airflow path prevents hot-air recirculation and allows front-access filter replacement.
• ▶
  Dual-Side Busbars (High Current): For units above 2000A, power connections are brought to both the left and right, reducing busbar inductance and simplifying DC-bus paralleling in multi-motor electrical drives and control systems.
• ▶
  Fieldbus & I/O Compatibility: The expandable drive fully supports Profibus DP, DeviceNet, CANopen, Modbus RTU, and LINKnet through standard 590C/590P Technology Options, with no intermediary gateway required.

6. Industrial Applications of the 590C/590P Expandable DC Drive

The ability to tailor current and voltage ratings makes the 590C/590P expandable DC drive exceptionally suited to a wide range of heavy-duty motor control tasks. Prominent applications include:

7. Standard 590P vs. Expandable 590C/590P – A Technical Comparison

It is important to understand that the expandable 590C/590P expandable DC drive is functionally identical to a standard Eurotherm or Parker drive in every aspect of regulation, diagnostics, and fieldbus communication. The table below illustrates the differences:

8. Sizing and Selection of the 590C/590P Expandable Drive

Proper selection begins with the DC motor nameplate: armature voltage (V), armature current (I_dN), and field current. The expandable drive’s armature supply voltage class must be chosen so that the theoretical maximum DC voltage (≈1.35 × V_AC,LL for a six-pulse bridge) exceeds the motor’s rated armature voltage. For a motor rated 750VDC, a supply range like 450–990VAC (code 10) provides sufficient headroom. If field weakening is required, the control board’s field economy mode can be activated, a standard feature in every 590C DC drive.

The rated current code must reflect the continuous DC current required, including any overload margin. The standard thermal design of the expandable Parker 590P platform assumes a 1.5× overload for 60 seconds. For processes demanding 2.0× for 30 seconds, the power section is scaled accordingly. When ordering, always specify the exact overload profile. As HANI engineering practice suggests for heavy-duty electrical drives and control, provide the RMS current over the most demanding repetition cycle to ensure accurate thermal sizing.

9. Thermal Management and Environmental Considerations

The expandable 590C/590P expandable DC drive relies on forced-air cooling. The bottom-mounted fan delivers filtered air across the thyristor heatsinks. The key environmental parameters for reliable operation are:

• Ambient Temperature: 0 to 40°C without derating. For every 1°C above 40°C, derate the output current by 1.5%.
• Altitude: Up to 1000 m above sea level without derating. Above 1000 m, derate by 1% per 100 m.
• Humidity: 5–95% relative, non-condensing.
• Enclosure: The open-chassis (IP00) design is intended for installation within a protected electrical room. For dusty or corrosive atmospheres, a custom IP54 enclosure with heat exchanger can be supplied.

Adequate clearance above and below the unit must be maintained to prevent recirculation. A typical recommendation is at least 200 mm free space above the exhaust and 100 mm below the inlet. These simple practices have been validated across thousands of DC drives installations globally.

10. Integrator Support and Project Collaboration

Each expandable 590C/590P expandable DC drive is fully tested before leaving the factory: the thyristor stack undergoes a heat-run at nominal current, the control board is verified for correct voltage and current feedback scaling, and all I/O points are functionally tested. The objective is to deliver a drive that can be lifted into place, connected, and commissioned using the standard Eurotherm/Parker parameter list without any custom firmware or hidden settings.

For large-scale projects or retrofits where multiple units are deployed, this standardization simplifies the work of commissioning engineers and plant electricians. Spare parts for the control section are standard Eurotherm/Parker components available through normal industrial channels. The power section is designed for straightforward visual inspection and occasional thyristor replacement. When developing detailed specifications, many engineering houses refer to HANI application notes that define accepted overload definitions and minimum clearance requirements for electrical drives and control cabinets. Our expandable platform aligns with these good-engineering practices by default.

11. Frequently Asked Questions (FAQ)
