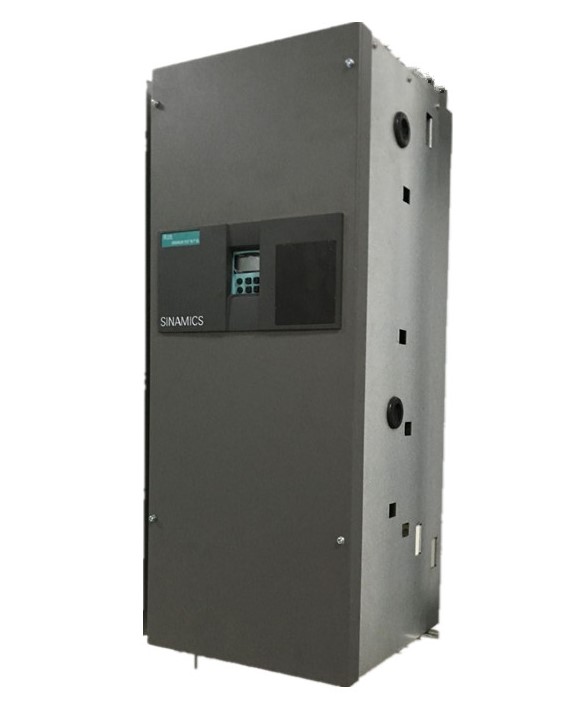

Siemens 6RA80 Expanded DC Drive Control Cabinet – Custom Electrical Control Panel Design

In heavy industrial environments, reliability and adaptability are not optional—they are the foundation of uptime and production efficiency. The Siemens 6RA80 Expanded Drive Cabinet represents a strategic response to the growing demand for scalable DC drive solutions. Engineered as a full-fledged electrical control panel, this system brings together the intelligence of original Siemens control architecture with custom-engineered power expansion, delivering high-current output without the high cost of factory-oversized units. HANI has refined this concept into a repeatable, production-grade custom design, where every electrical control panel is purpose-built to match the specific drive and load requirements of the application.

Technology Behind the Expanded Drive Cabinet

Traditional DC drive sizing often forces engineers to choose between overspending on a high-current factory drive or accepting limitations in performance. The expansion technique solves this by taking a proven, smaller-current Siemens 6RA80 base unit—such as the 6RA7013-6DV62-0AA0 with a nominal 15 A armature rating—and augmenting it through a meticulously designed power stage to achieve outputs up to 850 A (equivalent to a 6RA7087-6DV62-0AA0). This transformation occurs within a dedicated electrical control panel that houses the original Siemens power board and control board unchanged, preserving the exact operational behavior, parameter set, and diagnostic interface of the OEM drive. The result is a seamless scale-up that dramatically reduces cost per ampere while maintaining full compatibility with Siemens software tools and communication protocols.

From a production perspective, this approach has deep engineering validity. The power section of the electrical control panel is reconstructed using isolated, high-surge thyristor modules from manufacturers such as Semikron, IXYS (Littelfuse), and Infineon—all in industry-standard pressure-contact packaging with ceramic-insulated baseplates. Gate drive circuits are recalibrated to match the higher di/dt and dv/dt requirements, and protective snubber networks are redesigned accordingly. The original Siemens 7013 control board reads currents through external hall-effect sensors scaled to the new rating, allowing the same PI loops and auto-tuning routines to operate without modification. HANI’s engineering team ensures that every expanded electrical control panel passes a full-load heat run before shipment, verifying thermal stability and current sharing across parallel thyristor pairs.

Technical Specifications at a Glance

Custom Electrical Control Panel Engineering

Every custom design electrical control panel in this series originates from a detailed load survey and application analysis. HANI evaluates the motor nameplate data, overload duty cycles, cooling infrastructure, and site-specific supply conditions before issuing a single-line diagram and a mechanical layout. The cabinet is fabricated from 2.0–2.5 mm powder-coated steel sheet with red and black styling, pre-fitted with copper busbars, class H insulation materials, and a dead-front compartmentation that separates power, control, and field sections. This methodology turns the Siemens 6RA80 Expanded Drive Cabinet into a true electrical control panel solution rather than a collection of components.

The control section remains 100% genuine Siemens. By retaining the original CUD (Control Unit Drive) and power interface boards, the expanded drive cabinet speaks the same parameter language, supports the same OP1S operator panel, and connects to SIMOTION or SIMATIC systems as a native node. Drive commissioning uses the familiar STARTER or Drive ES software; no proprietary tools are needed. This feature is critical for plants with standardized automation architecture, where a different drive profile would require costly re-validation. Furthermore, all optional technology boards and communication modules from the Siemens ecosystem—such as the SBP pulse encoder board or CBC CAN communication board—remain plug-compatible within the electrical control panel.

From a manufacturing point of view, HANI’s approach follows strict production milestones: component burn-in, insulation resistance measurement (megger test), light-load verification, full-load heat run, and finally a 24-hour powered soak. Only once the electrical control panel passes all stages is it crated for shipment. This disciplined process ensures that each Siemens 6RA80 Expanded Drive Cabinet delivers production-floor reliability from day one.

Integrated Mechanical Structure and Cooling

The cabinet adopts an integrated, single-enclosure design that contrasts starkly with older split-frame architectures. All power semiconductors, busbars, control boards, contactors, and field supply modules reside within one IP21 or IP23 enclosure (higher IP ratings available on request). This saves floor space and drastically reduces on-site wiring complexity. The incoming power connections enter from the top of the cabinet, while motor and field connections exit from the bottom—a “top-in, bottom-out” philosophy that matches standard cable trench layouts in heavy industry and keeps the electrical control panel tidy.

Thermal management relies on forced-air cooling. Multiple high-static-pressure fans pull air through a bottom inlet filter, direct it across the thyristor heatsinks and DC-link chokes, and exhaust it through top-mounted grilles. Airflow is monitored by a differential pressure switch that signals a warning before any overheating can endanger semiconductors. This thermal design is validated using CFD simulations to eliminate hot spots, an engineering step that underpins the long-term robustness of the entire electrical control panel.

Application Domains

The Siemens 6RA80 Expanded Drive Cabinet serves industries where DC motors still dominate due to high starting torque, excellent controllability, and existing installed base. This custom design electrical control panel fits both greenfield projects and brownfield retrofits. Typical applications include:

In multi-drive systems, several electrical control panel units can be interconnected via SIMOLINK for coordinated speed or torque control, achieving master-slave or load-sharing configurations that extend the total current capacity beyond 12000 A. Every cabinet within such a cluster remains a standalone electrical control panel with its own protection, eliminating single points of failure.

Frequently Asked Questions

Production Value and Long-Term Maintainability

For production managers, one of the most compelling aspects of this electrical control panel approach is spares commonality. Because the control section is identical across a wide range of current ratings, a plant running multiple expanded drive cabinets only needs to stock one type of control board, one operator panel, and a limited set of communication modules. Maintenance technicians work with the same Siemens documentation and training they already possess, lowering the mean time to repair. The modularity of the custom design electrical control panel also means that individual thyristor modules can be replaced within minutes, using standard tools, without disturbing the control wiring.

From a cost perspective, the expansion methodology sidesteps the steep price ladder of factory high-current drives. A single Siemens 6RA80 Expanded Drive Cabinet configured for 850 A can cost significantly less than an OEM 850 A unit, yet deliver identical dynamic performance. When units are placed in parallel to reach multi-mega-watt outputs, the savings multiply while control precision remains uncompromised. This economic advantage makes the expanded electrical control panel a strategic asset in tight-margin industries like steel processing, paper manufacturing, and mining.

Whether upgrading an aging DC drive lineup or engineering a new installation, the Siemens 6RA80 Expanded Drive Cabinet configured as a full custom design electrical control panel offers a technically robust, cost-effective path. Backed by HANI’s controlled manufacturing flow and insistence on genuine Siemens control electronics, each cabinet delivers the continuity of performance that industrial plants depend on. For specific ratings, drawings, or a quotation, contact HANI with your motor data and application requirements—our engineering team will propose a tailored electrical control panel that fits your timeline and budget.
