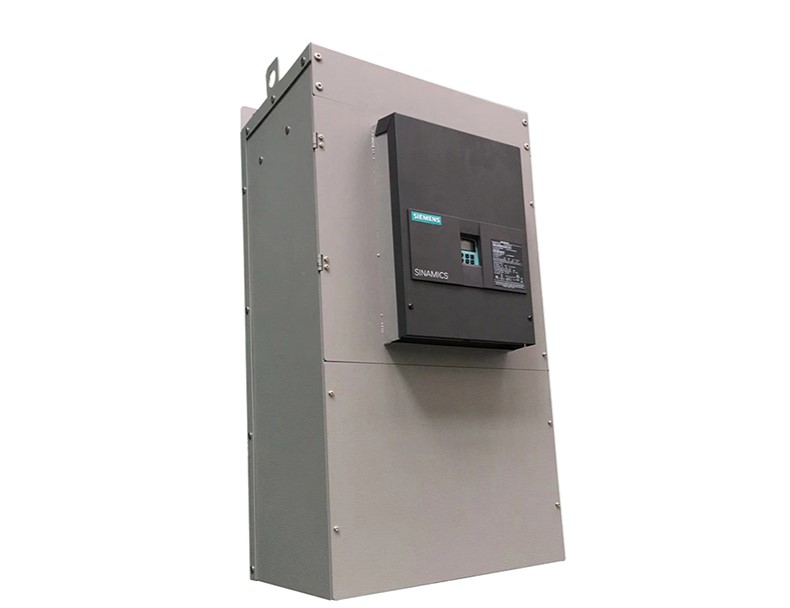

Siemens 6RA80 Expandable DC Drive 400-800A – Precision Motor Control Cabinet
Brand name: HANI
Packing Details : Wooden box with fumigation or Wooden Fram or Steel Frame
Delivery Details: 30~60days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight
HANI specializes in industrial electrical automation, delivering integrated drive and control solutions to safeguard your production.
Product Details
1. Product Overview
The Siemens 6RA80 Expandable DC Drive, part of the SINAMICS DC MASTER family, represents the latest generation of fully digital DC converter technology from Siemens AG. Engineered as a high-power electrical motor control solution, the drive integrates open-loop and closed-loop control functions together with the power unit into a single compact device. The series is the direct successor to the widely deployed SIMOREG 6RA70 DC Master and SIMOREG 6RA24 platforms, combining decades of field-proven experience in electrical drives and control with the advanced toolchain and component ecosystem of the SINAMICS family.[reference:0]
The 400–800 A rating range covered in this article addresses the power segment most commonly specified for medium-to-heavy industrial machinery: rolling mill main drives, wire-drawing lines, extruders, crane and hoist systems, cableways, mine hoists, and large-scale test stands. Within this current band, the SINAMICS DCM is available in both 2Q (two-quadrant) and 4Q (four-quadrant) configurations, with rated armature supply voltages spanning 400 V AC, 480 V AC, 575 V AC, and extending up to 950 V AC for specialty high-voltage DC motor applications.[reference:1][reference:2]
Key Architecture Highlights
- ✓ Fully digital 32-bit microcontroller + FPGA dual-core architecture on the CUD (Control Unit DC)[reference:3]
- ✓ Integrated armature and field power supply on a single compact chassis
- ✓ Expandable I/O via TM15 and TM31 Terminal Modules through DRIVE-CLiQ[reference:4]
- ✓ Parallel connection capability for load currents up to 12,000 A DC[reference:5]
- ✓ Conformal-coated PCBs and nickel-plated copper bus bars for harsh environments[reference:6]
2. Detailed Technical Specifications — 400–800 A Range
The following table presents the principal technical data for SINAMICS DCM units within the 400–800 A rated DC current band, based on the 3-phase 400 V AC, 4Q device configuration. Data are extracted from Siemens Operating Instructions (A5E34763375A) and supplementary catalog documentation.[reference:7][reference:8]
* The 6RA8082-6FS22-0AA0 is a 2Q unit on 480 V AC supply; shown for comparative reference within the 400–800 A band.
3. System Architecture & Operating Principle
3.1 Dual Closed-Loop Control Topology
The Siemens 6RA80 DC converter employs a cascaded dual-loop control structure that has become the industry benchmark for precision electrical drives and control. The outer speed loop compares the actual speed feedback — derived either from an incremental encoder (yielding 0.006% steady-state constancy) or an analog tachometer (0.1%) — against the digital setpoint and outputs a current reference to the inner current loop. The inner armature current loop operates at approximately 800 Hz bandwidth, using Hall-effect sensors or AC current transformers to measure actual armature current and compute the thyristor firing angle α through a PI (proportional-integral) algorithm. This two-tier architecture ensures that current limiting occurs at microsecond speed while speed regulation remains free of steady-state error across the entire operating range.[reference:15][reference:16]
3.2 Four-Quadrant Operation & Regenerative Braking
A defining capability of the 4Q variants (e.g., 6RA8081-6DV62-0AA0) is the anti-parallel dual three-phase bridge topology — designated (B6)A(B6)C — which enables bidirectional power flow. During motoring in the forward direction (Quadrant I), the converter operates as a controlled rectifier supplying DC armature voltage to the motor. When braking or reversing is required, the second bridge conducts in inversion mode, feeding regenerated energy back into the AC supply mains rather than dissipating it as heat across braking resistors. This regenerative capability is critical for applications such as rolling mills, mine hoists, and crane lowering operations, where continuous braking duty and energy recovery translate into significant operational cost savings.[reference:17]
3.3 Field Weakening & EMF Control
Above base speed, the CUD automatically reduces field current to maintain constant armature voltage at the rated ceiling while the counter-EMF of the DC motor rises with speed. The EMF calculation module continuously estimates the motor back-EMF from terminal voltage and armature current, enabling a smooth transition into the field-weakening region. This extends the motor’s constant-power speed range by a factor of typically 3× to 4×, delivering the classic DC drive characteristic of “high torque at low speed, constant power at high speed.” For commissioning without a tachometer, parameter P50083 can be set to EMF closed-loop mode (value = 3), and the drive will operate satisfactorily using the internal EMF feedback alone.[reference:18][reference:19]
4. Expandable DC Drive Platform — Modularity at Scale
The “Expandable” designation in the Expandable DC Drive nomenclature is not merely a marketing term — it reflects a deeply modular hardware and software architecture that allows the base unit to scale in both functional capability and power capacity. Key expansion dimensions include:
Control Unit Upgrade
The Standard CUD can be upgraded to an Advanced CUD (G00 option), which unlocks the CBE20 PROFINET/EtherNet/IP communication module slot, the DRIVE-CLiQ interface for sensor and terminal module expansion, and increased computational headroom for complex DCC (Drive Control Chart) and free function block applications.[reference:20]
Parallel Power Expansion
Multiple 6RA80 units can be connected in parallel (12-pulse or higher configurations) to achieve total load currents of up to 12,000 A DC. Master-slave load sharing is managed via firing angle interface (p51799 = 0 or 21) or current setpoint interface (p51799 = 22). This is particularly valuable in rolling mill main drive retrofits.[reference:21][reference:22]
I/O & Sensor Expansion
Through the DRIVE-CLiQ interface, users can add TM15 and TM31 Terminal Modules to increase the number of digital and analog I/O points beyond what is available on the base CUD. A second CUD can be installed for applications requiring dual-channel redundancy or independent control of two coupled drives.[reference:23]
Software & Function Block Expansion
The base drive includes free function blocks and supports DCC (Drive Control Chart) for custom control logic. Technological controls — winder macros, sectional drive load sharing, cross-cutter synchronization, master-slave switchover — can all be implemented on the standard platform without external PLC intervention.[reference:24][reference:25]
5. Industrial Communication & Integration
The Siemens 6RA80 platform supports a comprehensive suite of industrial Ethernet and fieldbus protocols, making it suitable for integration into virtually any automation architecture:
6. Industrial Applications
The Siemens 6RA80 Expandable DC Drive is deployed across a broad cross-section of heavy industry where DC motor technology remains the preferred choice due to its superior starting torque, overload capacity, and proven field serviceability. The 400–800 A range is particularly well-suited for the applications listed below. For system integrators and procurement teams — including the engineering team at HANI — these represent the most common specification patterns for electrical drives and control in large-scale plant engineering.
⚙ Metal Processing
Hot and cold rolling mill main drives, continuous casting lines, extruders, drawbenches, and shear/cross-cutter drives. 12-pulse parallel configurations with master-slave load sharing are the standard architecture for mill main stands to reduce network harmonics and achieve smooth torque distribution between upper and lower work rolls.[reference:29][reference:30]
⚙ Cranes, Hoists & Mining
Bridge and gantry cranes, port container handling equipment, mine hoists, and winders. The 4Q regenerative capability is essential for lowering and braking of large suspended loads while recovering energy. E-stop functionality via terminals 105/106 provides integrated safety chain integration.[reference:31][reference:32]
⚙ Paper, Rubber & Plastics
Paper machine sectional drives, flexographic and rotogravure printing presses, rubber mixers (Banbury), and plastic extruders. Load sharing control and winder tension macros — including torque limitation with overdriven speed setpoint — are directly implemented via free function blocks.[reference:33][reference:34]
⚙ Test Stands & Special Machinery
Dynamometer test stands, large machine tool spindle drives, cableways and lifts, transportation systems (subway, light rail), and electric vehicle mining haul trucks. The SINAMICS DCM is also approved for use as an adjustable DC voltage source for battery charging, resistive heating, and electrolysis applications.[reference:35][reference:36]
For production environments such as those managed by HANI, the Siemens 6RA80 also serves as a drop-in retrofit replacement for legacy SIMOREG 6RA70 and 6RA24 installations. Siemens provides a dedicated migration guide and parameter cross-reference table that maps 6RA70 parameters (e.g., R015 for armature supply voltage, R016 for field supply voltage) to their 6RA80 counterparts (R50015, R50016), significantly reducing downtime during control system upgrades.[reference:37][reference:38]
7. Commissioning, Parameterization & Diagnostics
Commissioning a SINAMICS DCM 6RA80 can be performed through three user interfaces, each suited to different phases of the machine lifecycle:
- BOP20 Basic Operator Panel: A 5-digit numerical display with membrane keypad, suitable for field-level parameter entry and basic diagnostics. Access level is controlled via P0003 (standard = 3 for Expert). Up to 90% of quick commissioning tasks can be completed through the BOP20 alone.[reference:39]
- AOP30 Advanced Operator Panel: A graphics-capable LCD display with plain-text menu navigation and graphical trending, enabling intuitive walk-through commissioning for complex drive setups.[reference:40]
- STARTER PC Software (v4.3.3+): The recommended commissioning tool for complex applications, offering full access to parameter lists, function block diagrams, BICO interconnection technology, trace recording, and automatic optimization routines for current and speed controller tuning. For PROFINET integration, the TIA Portal hardware catalog can be used to configure the DCM with CBE20 as a PROFINET IO device.[reference:41][reference:42]
The automatic optimization run (p50051 = 23 for current controller + precontrol, or = 25 for speed controller) leverages the drive’s internal square-wave generator and reference model to calculate optimal PI parameters for both the armature current loop and the speed regulation loop. The built-in diagnostic memory, trend recorder function, and thyristor check routine (via p50830) further simplify routine maintenance and fault-finding. Common fault codes — such as F60004 (field fault), F60005 (armature overcurrent), and F60105 (encoder loss) — are documented in detail within the operating instructions and FAQ manual.[reference:43][reference:44]
8. Motor Control Cabinet Design Considerations
The SINAMICS DCM 6RA80 is supplied as an IP00 open-chassis device, meaning it is intended for installation within a controlled electrical motor control cabinet that provides the necessary degree of environmental protection (typically IP54 or IP55 for industrial environments)[reference:45]. Key design points for the motor control cabinet include:
- ● Thermal Management: Units ≥210 A are force-ventilated with integrated fans; specify adequate cabinet ventilation or door-mounted filter fans to maintain ambient temperature ≤40°C for full-rated operation without derating.[reference:46]
- ● EMC Compliance: The power unit is insulated with respect to ground; line-side EMC filters and shielded motor cables should be selected per EN 61800-3 to meet the conducted and radiated emission limits for the intended EMC environment (Category C2 or C3).[reference:47]
- ● Protective Devices: External semiconductor fuses (super-fast, I²t-rated) must be provided in the armature infeed circuit. An AC line contactor with overload relay provides galvanic isolation for emergency stop per EN 60204-1. The main contactor control is wired via terminals 109/110 on the CUD.[reference:48]
- ● DC Smoothing Reactor: For 12-pulse parallel configurations, external DC smoothing reactors (also called interphase reactors) are required to absorb the instantaneous voltage difference between the two bridge outputs and to limit circulating current ripple to acceptable levels.[reference:49]
- ● Electronics Power Supply: A dedicated 24 V DC supply (optionally derived from the 2 AC 380–480 V internal supply or from an external 18–30 V DC source via option L05) powers the CUD and all communication modules, ensuring that the control electronics remain active for diagnostics even when the main armature supply is isolated.[reference:50]
9. Frequently Asked Questions (FAQ)
Q1: Can the Siemens 6RA80 be operated from a single-phase AC supply?
Yes, for units with rated DC current ≤125 A, single-phase operation is permitted with a derated output. The rated DC current for single-phase operation is specified separately in the technical data tables. Units rated 400–800 A require a three-phase supply for full-rated operation.[reference:51]
Q2: What is the difference between the Standard CUD and the Advanced CUD?
The Standard CUD provides the PROFIBUS-DP interface, standard digital and analog I/O, and supports all core drive functions. The Advanced CUD adds a slot for the CBE20 communication board (PROFINET / EtherNet/IP / Modbus TCP), a DRIVE-CLiQ interface for connecting TM15/TM31 terminal modules and sensor modules, and higher processing performance for complex DCC programs. For any application requiring PROFINET or EtherNet/IP, the Advanced CUD is mandatory.[reference:52][reference:53]
Q3: How is load sharing configured between two 6RA80 drives in a rolling mill application?
Load sharing is implemented through a master-slave architecture. The master drive runs in closed-loop speed control and can transmit either its firing angle reference (p51799 = 0 or 21) or its armature current setpoint (p51799 = 22) to the slave drive(s). Each slave runs in armature current closed-loop control, with its own current controller making corrective adjustments. The firing angle method provides faster dynamic response, while the current setpoint method offers independence of each converter’s gating synchronization to its own line supply. Both configurations require a peer-to-peer communication link between the drives.[reference:54]
Q4: What is the maximum overload current that the 400–800 A units can deliver?
The absolute upper limit for the overload current is 1.8 × the rated DC current of the specific unit. However, the actual overload duration depends on the time characteristic of the overload current, the load history (prior operating point and thermal state), and the ambient temperature. The overload capability is thermally limited according to the thyristor junction temperature model embedded in the drive firmware.[reference:55]
Q5: Can the 6RA80 be used as a general-purpose adjustable DC voltage source?
Yes. The SINAMICS DCM is approved for use as a constant DC voltage source for several non-motor applications, including battery charging and discharging, resistive heating, electrolytic processes, and as a DC link infeed for pulse inverters. Application manuals for each of these use cases are available from Siemens.[reference:56]
Q6: What commissioning software is recommended, and where can the manuals be found?
STARTER commissioning software (version 4.3.3 or higher) is recommended for full-featured commissioning, parameterization, and diagnostics. The operating instructions manual, list manual (parameter reference), and FAQ document (80 pages) are all available for free PDF download from the Siemens Industry Online Support portal and ManualsLib. The hardware manual provides detailed wiring diagrams, installation guidelines, and troubleshooting information.[reference:57][reference:58][reference:59]
10. Summary — Why the Siemens 6RA80 Is the Smarter Choice
In the domain of electrical drives and control for DC motor applications above 400 A, few platforms match the SINAMICS DCM 6RA80 in terms of performance density, expandability, and integration depth. The drive delivers:
For plants, system integrators, and engineering teams worldwide, the Siemens 6RA80 Expandable DC Drive represents a strategic investment in precision electrical motor control that aligns with both current production demands and future retrofit or expansion plans. The drive’s backward compatibility with the SIMOREG 6RA70 parameter set, combined with its forward compatibility with SINAMICS S120 AC drive components and tools, places it at the center of Siemens’ converged drive technology roadmap — a roadmap that has been trusted for over three decades in the most demanding electrical drives and control applications worldwide.
Siemens SINAMICS DCM 6RA80 — The latest generation of fully digital DC converters for electrical drives and control in the 400–800 A range. For technical specifications, part number selection, and application engineering support, please contact your local Siemens sales office or authorized SINAMICS DC MASTER distribution partner.
