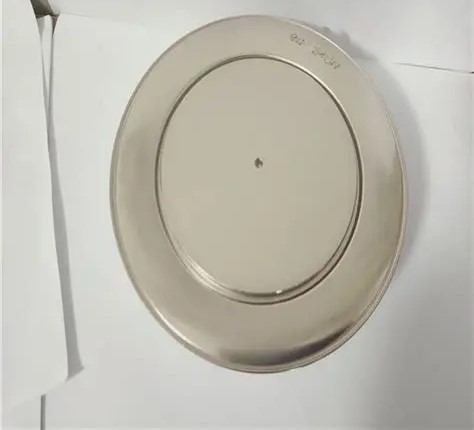

High Power Thyristors for Electrical Motor Control – CRRC/Taiji/Xizheng

Brand name: HANI
Packing Details : Wooden box with fumigation or Wooden Fram or Steel Frame
Delivery Details: 30~60days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight

HANI specializes in industrial electrical automation, delivering integrated drive and control solutions to safeguard your production.

Product Details

Power Semiconductor Technology

High Power Thyristors for Electrical Motor Control – CRRC/Taiji/Xizheng

Rugged phase‑control and rectifier thyristors from China’s leading power semiconductor manufacturers, purpose‑built for the extreme demands of heavy‑duty DC and AC motor drive systems.

Heavy industrial Electrical Motor Control—from reversing rolling mill stands to multi‑megawatt mine hoists—continues to rely on the Thyristor as the cornerstone of power conversion. These four‑layer PNPN semiconductor switches handle thousands of amperes and block kilovolts, and they do so with a ruggedness that modern IGBT solutions struggle to match at the highest power levels. Among the world’s most capable manufacturers of such Power Electronics are CRRC (Zhuzhou CRRC Times Electric), Taiji, and Xizheng. These firms produce a range of industrial automation products that supply the exacting specifications required for reliable Electrical Motor Control in metals, mining, cement, and marine industries.

Selecting the right Thyristor for a drive application is not a simple matter of matching voltage and current. The device must withstand cyclic thermal stress, meet the specified critical rate‑of‑rise of on‑state current (di/dt) and off‑state voltage (dv/dt), and coordinate with the protection fuse’s I²t let‑through. The Power Electronics from CRRC, Taiji, and Xizheng are documented and tested to provide the data that drive system engineers require to make these determinations. As HANI can attest from numerous DC drive upgrades, the availability of genuine high‑power industrial automation products from these manufacturers is essential for sustaining aging drive fleets and building new high‑current rectifier systems.

Why a Purpose‑Built Thyristor Matters for Electrical Motor Control

A Thyristor that will see service in a DC drive armature bridge or a soft starter for a 6.6 kV induction motor must have a surge current rating (ITSM) sufficient to clear a downstream fault without destruction. The devices from CRRC, Taiji, and Xizheng are manufactured with fully diffused junction structures that provide a wide safe‑operating area. They are true industrial automation products, not commercial‑grade devices, and they are subjected to 100% dynamic testing of blocking voltage, gate trigger parameters, and thermal resistance under load. For Electrical Motor Control systems where an unplanned outage costs thousands of euros per hour, the initial specification of a quality Power Electronics device from one of these established manufacturers is a direct contribution to operational assurance.

Representative High‑Power Thyristor Parameters – CRRC / Taiji / Xizheng

The table below presents typical ratings for phase‑control Thyristor models intended for Electrical Motor Control. All values are based on a 125 °C maximum junction temperature and are subject to the manufacturer’s published derating curves. These industrial automation products are available in flat‑pack (capsule) and stud‑mount configurations to suit different panel designs.

Parameter CRRC KPC 3000‑65 Taiji KP 2500‑55 Xizheng KPX 2000‑45
Repetitive Peak Off‑State / Reverse Voltage (VDRM / VRRM) 6,500 V 5,500 V 4,500 V
Average On‑State Current (ITAV) 3,000 A 2,500 A 2,000 A
RMS On‑State Current (ITRMS) 4,700 A 3,900 A 3,100 A
Surge Current (ITSM, 10 ms) 55,000 A 45,000 A 36,000 A
Critical Rate of Rise of On‑State Current (di/dt) 500 A/µs 400 A/µs 350 A/µs
Gate Trigger Voltage / Current (Typ.) 1.5 V / 250 mA 2.0 V / 300 mA 1.8 V / 200 mA
Package Capsule (flat‑pack) Ø 100 mm Capsule Ø 85 mm Capsule Ø 75 mm / Stud
Maximum Junction Temperature 125 °C 125 °C 125 °C

* All specifications are for reference and must be confirmed with the latest manufacturer datasheet. The Thyristor must be mounted with the correct clamping force and paired with an appropriate gate‑drive Power Electronics circuit to realise the stated performance. These industrial automation products are designed for professional integration by qualified drive system engineers.

Gate Drive, Snubbing, and Thermal Management – Completing the Electrical Motor Control Loop

A high‑power Thyristor is only as good as the circuit that controls it. For reliable Electrical Motor Control, the gate drive must deliver a current pulse with sufficient amplitude and rise time to guarantee turn‑on within the device’s safe di/dt limits. The gate‑cathode junction of a CRRC or Xizheng Thyristor is specified for a minimum gate current and voltage; falling below these values can lead to partial turn‑on and hot‑spot formation, followed by rapid destruction. As standard industrial automation products in Power Electronics, these thyristors are accompanied by application notes that define the recommended gate pulse width (typically 20–100 µs) and amplitude for both hard‑fired and pulse‑transformer‑coupled drive circuits.

Snubber design is equally critical. Every Thyristor has a maximum permissible dv/dt; exceed it and the device can trigger spuriously, leading to shoot‑through and catastrophic failure. The RC snubber network placed across each thyristor pair absorbs energy during commutation and limits the voltage ramp rate to a safe value. The snubber component values are calculated based on the device’s stored charge and the commutating inductance of the DC drive circuit. Engineers specifying industrial automation products for Electrical Motor Control must not treat the snubber as an afterthought. Finally, the Power Electronics assembly must be clamped to a heatsink—often liquid‑cooled in megawatt‑class systems—with the exact force specified by the manufacturer, monitored via a load cell or a calibrated torque wrench, to ensure a uniform thermal and electrical interface over the life of the installation.

Heavy Industries Dependent on High‑Power Thyristor Technology

CRRC, Taiji, and Xizheng Thyristor devices are deployed in the world’s most demanding Electrical Motor Control applications. Their reliability determines the throughput of entire production lines.

DC Mill Drives

Reversing hot‑rolling mills use double‑converter Thyristor bridges rated at several thousand amperes. The devices from these three suppliers are specified for the high di/dt and cyclic overload duty that the mill process demands.

Soft Starters & MV Motor Control

For 6.6 kV and 11 kV induction motors, a back‑to‑back Thyristor stack provides ramp‑up and torque limiting. Power Electronics from Taiji and CRRC are widely used in these medium‑voltage industrial automation products.

Mine Winders & Hoists

High inertia, frequent reversing, and absolute safety make the mine winder one of the toughest Electrical Motor Control applications. Xizheng and CRRC devices are found in both new winder installations and refurbishment projects.

Frequently Asked Questions (FAQ)

Q1: How does a high‑power thyristor differ from a standard thyristor used in consumer electronics?

A high‑power Thyristor intended for Electrical Motor Control is a fully diffused device with a wide N‑base region that gives it the ability to block several kilovolts. Its silicon area is much larger, and it is packaged in a ceramic‑insulated, pressure‑contact capsule that allows double‑sided cooling. The surge current (ITSM) of a 3,000 A device from CRRC is sufficient to sustain through a fault clearance event, which a commercial‑grade device simply cannot. These are industrial automation products specifically designed for Power Electronics at the megawatt scale, and they are tested to parametric limits that guarantee safe operation within the stated ratings.

Q2: What is the significance of di/dt and dv/dt ratings in motor drive thyristors?

During turn‑on, the entire Thyristor silicon area must become conductive quickly. If the initial current rises too fast (exceeding di/dt), the current concentrates around the gate region, creating a hot spot that can melt the silicon. The dv/dt rating limits how fast the off‑state voltage can rise without the device self‑triggering through capacitive coupling. For Electrical Motor Control, these parameters must be respected and managed by gate‑drive design and snubber networks. When properly applied, the Power Electronics devices from CRRC, Taiji, and Xizheng deliver years of reliable service within their rated limits.

Q3: Can I replace a failed thyristor with a device from a different manufacturer?

In principle, yes, provided the key parameters match: blocking voltage, average current, surge current, gate trigger characteristics, and physical dimensions. However, in parallel‑connected Thyristor stacks, all devices should share current equally. Mixing brands with different forward voltage drops can create imbalance and premature failure. Where possible, replace all devices in a parallel group with matched units from the same production batch. These are important practices when using industrial automation products in critical Electrical Motor Control applications.

Q4: How should high‑power thyristors be stored and handled?

Capsule‑type Thyristor units are delicate precision devices. They must be stored in a clean, dry environment with the gate‑cathode shorting link in place to prevent electrostatic damage. Before installation, the contact surfaces of the heatsink and the thyristor pole faces must be cleaned with isopropyl alcohol and inspected for flatness. The clamping force, typically 15–25 kN for a 100 mm device, must be applied evenly using a calibrated torque sequence. These precautions ensure the long‑term reliability of the Power Electronics assembly in Electrical Motor Control service.

Q5: How does the I²t rating of a semiconductor fuse coordinate with a thyristor?

The I²t let‑through of the fuse at the available fault level must be lower than the Thyristor‘s maximum withstand I²t. The Xizheng KPX series, for example, has a published I²t value that allows an engineer to select a matching semiconductor fuse from the same or a complementary supplier. This is a routine task in Power Electronics design, and it is critical for protecting the industrial automation products inside a DC drive cabinet.

Q6: How can HANI assist with sourcing and integrating these high‑power thyristors?

HANI provides a complete service for Electrical Motor Control system upgrades: identifying the correct Thyristor specification for an existing drive, procuring genuine industrial automation products from CRRC, Taiji, or Xizheng, and managing the physical installation and clamping within the client’s power stack. For legacy drives where the original semiconductor is obsolete, HANI can engineer a form‑fit‑function replacement using current‑production Power Electronics, restoring the drive to full rated performance without requiring a complete panel replacement.

Sustaining Motion with Proven High‑Power Thyristor Technology

As long as heavy industry requires megawatts of controlled DC power and soft‑started AC motors, the Thyristor will remain a fundamental building block of Electrical Motor Control. The devices manufactured by CRRC, Taiji, and Xizheng are the current‑generation expression of decades of Power Electronics development, and they deliver the performance headroom and reliability documentation that professional drive engineers demand. These are industrial automation products that have been proven in the field, in installations where failure is not an option.

For the plant manager, specifying these devices means securing a supply of genuine Power Electronics from established manufacturers with full datasheet traceability. For the system integrator, it means receiving pre‑tested devices that fit existing heatsink clamping jigs and gate‑drive circuits without modification. In an industrial landscape that increasingly prizes uptime and efficiency, the high‑power Thyristor continues to earn its place as the silent, rugged heart of the drive system.

CRRC, Taiji, and Xizheng are trademarks of their respective manufacturers. All ratings are for general reference and must be verified against the latest manufacturer datasheets.
