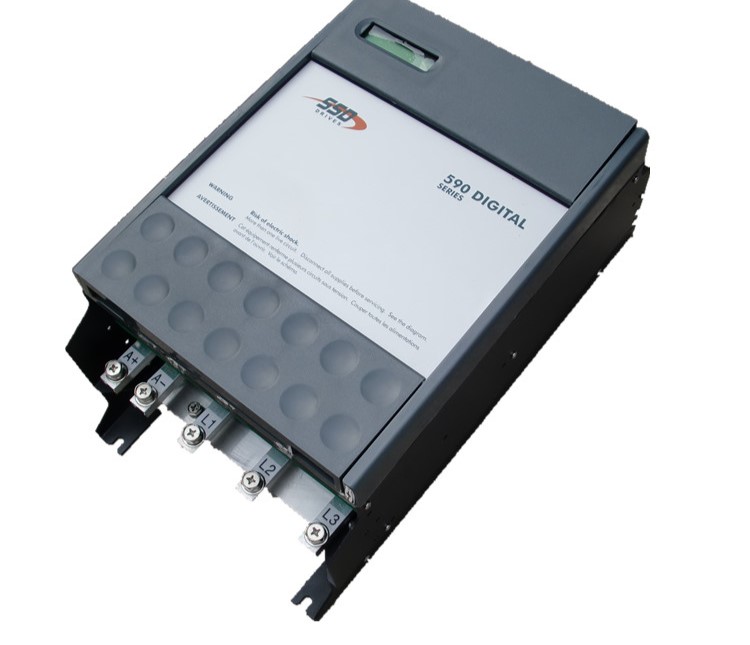

Eurotherm SSD590 DC Drive – Proven Electrical Motor Speed Control
Brand name: HANI
Packing Details : Wooden box with fumigation or Wooden Fram or Steel Frame
Delivery Details: 30~60days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight
HANI specializes in industrial electrical automation, delivering integrated drive and control solutions to safeguard your production.
Product Details

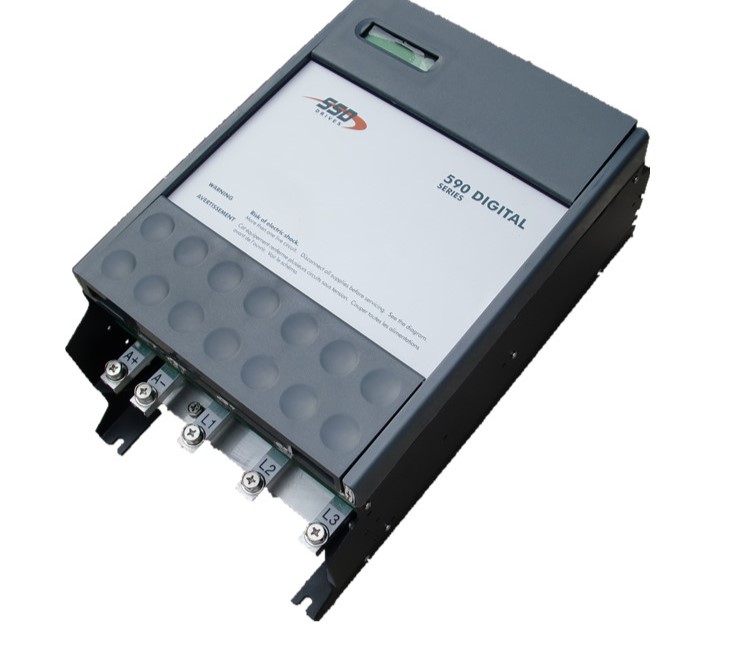

Eurotherm SSD590 DC Drive – Proven Electrical Motor Speed Control
The Eurotherm SSD590 DC Drive represents the pinnacle of electrical drives and control technology, offering unparalleled precision and reliability in industrial motor control applications. This comprehensive guide explores the advanced features and capabilities of this industry-leading electrical motor control solution.
Introduction to Advanced Electrical Drives and Control
In the realm of industrial automation, the selection of appropriate electrical drives and control systems is critical for optimizing performance, energy efficiency, and operational reliability. The Eurotherm SSD590 DC Drive stands as a testament to decades of engineering excellence in electrical motor control, providing sophisticated speed regulation capabilities for demanding industrial environments. This four-quadrant, fully digital DC drive has established itself as the industry standard for applications requiring precise torque control and dynamic response characteristics.
The evolution of electrical drives and control technology has seen significant advancements, with the Eurotherm SSD590 DC Drive representing the culmination of these developments. Unlike older analog systems that suffered from limited functionality and poor dynamic performance, this modern electrical motor control solution offers comprehensive digital processing capabilities, enabling complex control algorithms and adaptive parameter optimization. The drive’s architecture supports seamless integration into modern industrial networks while maintaining backward compatibility with legacy systems.
Technical Specifications and Performance Characteristics
The Eurotherm SSD590 DC Drive delivers exceptional performance across a wide range of operating conditions, making it suitable for the most demanding electrical drives and control applications. Its robust design ensures reliable operation in harsh industrial environments while maintaining precise control over motor parameters. The following technical specifications highlight the drive’s capabilities:
| Parameter | Specification | Application Benefit |
|---|---|---|
| Power Range | 0.75kW to 1500kW | Versatile electrical motor control for various industrial applications |
| Control Mode | Four-quadrant operation | Complete torque and speed control in all operating quadrants |
| Starting Torque | 200% rated torque | High-performance electrical drives and control for heavy-load applications |
| Response Time | Zero time response capability | Instantaneous motor response for critical processes |
| Braking Options | Inertia, free, and programmable braking | Flexible stopping control with 0.1s minimum programmable stop |
| PID Control | Open architecture PID functionality | Advanced closed-loop electrical motor control for tension and position applications |
| Communication | PROFIBUS, CAN bus support | Seamless integration into industrial network systems |
| Programming | Flexible analog and digital I/O configuration | Customizable electrical drives and control for specific process requirements |
Advanced Features of the Eurotherm SSD590 DC Drive
The Eurotherm SSD590 DC Drive incorporates numerous advanced features that distinguish it from conventional electrical drives and control systems. These capabilities enable precise electrical motor control across diverse industrial applications, from material handling to precision manufacturing processes.
High Torque Performance and Dynamic Response
One of the most significant advantages of the Eurotherm SSD590 DC Drive is its exceptional torque performance. The drive delivers 200% starting torque with zero time response capability, ensuring immediate motor acceleration even under heavy load conditions. This characteristic is particularly valuable in applications requiring rapid start-stop cycles or precise positioning control. The advanced current loop control algorithm optimizes torque delivery while minimizing electrical stress on motor windings, extending equipment lifespan and reducing maintenance requirements.
Sophisticated Braking Control Systems
The Eurotherm SSD590 DC Drive offers comprehensive braking control options, including inertia braking, free braking, and programmable braking sequences. The four-quadrant operation enables regenerative braking, where excess kinetic energy is returned to the power supply, improving overall system efficiency. Programmable stopping times as short as 0.1 seconds provide precise control over deceleration profiles, essential for applications requiring accurate positioning or synchronized multi-axis operation. This level of braking control represents the state-of-the-art in electrical motor control technology.
Integrated PID Control Architecture
The built-in PID control functionality of the Eurotherm SSD590 DC Drive provides unparalleled flexibility in electrical drives and control applications. Unlike traditional PID implementations, this drive features an open architecture that allows configuration for any physical parameter, not just speed or position. The system can operate with feedback loops independent of setpoint values, enabling sophisticated control strategies such as closed-loop tension control, torque regulation, or position synchronization. This capability is particularly valuable in web handling, winding, and unwinding applications where precise tension management is critical.
Industrial Applications and Implementation Considerations
The Eurotherm SSD590 DC Drive finds application across numerous industrial sectors, demonstrating the versatility of modern electrical drives and control systems. From heavy manufacturing to precision processing, this drive provides reliable electrical motor control solutions that enhance productivity and operational efficiency.
In metal processing industries, the drive’s high torque capability and precise speed regulation enable consistent material handling and processing quality. The four-quadrant operation supports bidirectional material flow with regenerative braking, reducing energy consumption while maintaining process control. Similarly, in paper and textile manufacturing, the integrated tension control algorithms ensure uniform material tension throughout production runs, minimizing waste and improving product quality.
Expert Implementation Guidance
Successful implementation of the Eurotherm SSD590 DC Drive requires careful consideration of application-specific requirements and system integration factors. Proper sizing of the drive relative to motor specifications ensures optimal performance while preventing thermal overload conditions. The auto-tuning functionality simplifies commissioning by automatically optimizing current loop parameters based on actual load characteristics, reducing setup time and improving control accuracy.
Network integration considerations include proper termination of communication cables, configuration of node addresses, and implementation of appropriate error handling protocols. The drive’s support for multiple industrial protocols facilitates seamless integration into existing control architectures while providing future expansion capabilities. Regular firmware updates and parameter backups ensure long-term reliability and maintainability of the electrical drives and control system.
Frequently Asked Questions
Q: What distinguishes the Eurotherm SSD590 DC Drive from other electrical drives and control systems?
A: The Eurotherm SSD590 DC Drive offers superior performance through its four-quadrant operation, 200% starting torque capability, and advanced digital control architecture. Unlike conventional electrical motor control systems, it provides integrated PID functionality, programmable braking sequences, and comprehensive communication options, making it ideal for demanding industrial applications requiring precise speed and torque regulation.
Q: How does the auto-tuning feature benefit electrical motor control applications?
A: The auto-tuning functionality automatically optimizes current loop parameters based on actual motor and load characteristics, eliminating the need for manual parameter adjustment. This feature ensures optimal performance across varying operating conditions while reducing commissioning time and improving system reliability. The result is enhanced electrical drives and control performance with minimal setup effort.
Q: Can the Eurotherm SSD590 DC Drive integrate with existing industrial networks?
A: Yes, the drive supports multiple industrial communication protocols including PROFIBUS and CAN bus, enabling seamless integration into modern control systems. This connectivity facilitates remote monitoring, parameter adjustment, and data acquisition, enhancing the overall electrical motor control capabilities while maintaining compatibility with legacy equipment.
Q: What maintenance requirements does the Eurotherm SSD590 DC Drive have?
A: The drive features robust construction with minimal maintenance requirements. Regular inspection of cooling systems, connection terminals, and firmware updates are recommended to ensure optimal performance. The digital architecture reduces component wear compared to analog systems, extending service life and reducing downtime in electrical drives and control applications.
Q: How does the drive handle regenerative braking in four-quadrant operation?
A: During regenerative braking, the Eurotherm SSD590 DC Drive converts kinetic energy back into electrical energy, which can be returned to the power supply or dissipated through braking resistors. This capability improves overall system efficiency while providing precise control over deceleration profiles, essential for applications requiring accurate positioning or synchronized multi-axis electrical motor control.
Conclusion: The Future of Electrical Drives and Control
The Eurotherm SSD590 DC Drive represents a significant advancement in electrical drives and control technology, offering comprehensive solutions for modern industrial automation challenges. Its combination of high performance, flexible configuration options, and robust construction makes it an ideal choice for applications requiring precise electrical motor control. As industrial processes continue to evolve toward greater automation and efficiency, the capabilities of this drive will remain relevant for years to come.
For specialized applications requiring customized electrical drives and control solutions, HANI provides expert consultation and implementation services. Their engineering team offers comprehensive support for system integration, parameter optimization, and ongoing maintenance, ensuring optimal performance of your electrical motor control infrastructure. The Eurotherm SSD590 DC Drive, combined with professional implementation expertise, delivers reliable and efficient motor control solutions for the most demanding industrial environments.
