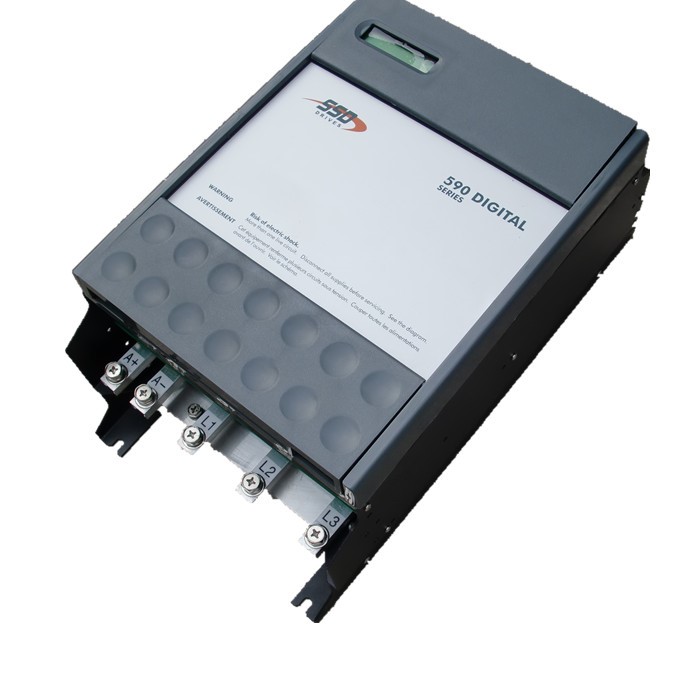

Eurotherm SDD590 DC Drive Control Cabinet in Stock – Quick Ship Electrical Panel

Built as a Complete Electrical Control Panel – Not Just a Drive

An electrical control panel for DC drives is far more than an enclosure with a drive mounted inside. Power distribution, protection coordination, control-voltage segregation, cable management, and thermal design all determine whether the panel will perform reliably across years of continuous operation. The Eurotherm SDD590 electrical control panel integrates these disciplines into a single pre-engineered assembly. Inside, the power and control circuits are physically isolated from each other – a practice rooted in electromagnetic compatibility (EMC) and safety standards such as IEC 61439-2. This physical separation reduces noise coupling into the microprocessor-based digital regulator, which is especially important when the electrical control panel operates near variable-frequency drives or other high-frequency switching equipment.

The three-phase fully controlled thyristor bridge forms the heart of the power conversion stage. Unlike a simple rectifier, a fully controlled bridge allows motoring and regenerative energy flow, giving the electrical control panel the ability to handle overhauling loads with proper external armature reversal or field reversal configurations. The microprocessor-based gate drive extends the firing angle range with phase-control expansion algorithms. The panel accepts a 45–65 Hz supply input without derating, supporting both 50 Hz and 60 Hz mains. This wide frequency tolerance is particularly valuable in regions with weak grids or when generator-set power is used, making the electrical control panel globally deployable without hardware modifications.

Core Control Architecture That Delivers Precision

The digital regulator inside this electrical control panel is a full microprocessor-based controller. It implements an advanced Proportional-Integral (PI) adaptive algorithm with a perfectly matched current loop. The current loop auto-tuning function measures the armature circuit time constants in real-time during commissioning and sets the PI gains to achieve near-critical damping. This self-tuning capability reduces commissioning time significantly. Moreover, the adjustable PI structure incorporates integral separation logic – the integral term is automatically suspended during large setpoint changes to prevent integrator windup, then reinstated as the error enters a defined band. This means the electrical control panel can transition from fast transient response to zero steady-state error without manual gain switching.

Speed feedback can be configured for three modes, each with documented steady-state accuracy figures. With an incremental encoder and digital setpoint, the electrical control panel achieves 0.01% speed holding accuracy relative to rated speed – a level required in sectional paper machines, wire drawing lines, and extruders where speed matching between sections determines product quality. With an analog tachogenerator, the steady-state accuracy is 0.1%. When no shaft-mounted feedback is available, armature voltage feedback with IR compensation delivers 2% accuracy. The IR compensation algorithm continuously estimates the resistive voltage drop across the armature and field windings and adjusts the output voltage to maintain speed under load. This makes the electrical control panel a valid choice even in applications where adding a tacho or encoder is impractical, such as mixer drives or older motor retrofits.

Technical Specifications at a Glance

Comprehensive Protection – Because DC Motors Are an Investment

The protection philosophy in this electrical control panel extends far beyond basic overcurrent tripping. A multi-layer protection matrix guards the DC motor, the thyristor bridge, and the drive electronics simultaneously. Overcurrent protection is implemented with both instantaneous electronic trip based on current feedback and inverse-time thermal modelling of the armature circuit. Excitation field failure protection monitors the field current and immediately blocks the armature bridge if field current falls below a safe threshold – a critical function because a loss of field in a shunt-wound DC motor can lead to dangerous overspeed. Speed feedback loss detection uses a dual-channel plausibility algorithm: if the measured speed suddenly diverges from the estimated speed derived from armature voltage and current, the electrical control panel triggers a controlled stop.

Motor overtemperature protection can be wired to embedded thermistors (PTC or KTY sensors) or computed through an I²t thermal model that runs in the microprocessor. The drive itself is protected by a heatsink thermistor and a cabinet ventilation monitoring system – loss of forced-air cooling inside the electrical control panel will raise an alarm before semiconductor junction temperatures reach critical levels. Thyristor gate drive fault detection checks each gate pulse feedback to confirm that firing commands are reaching the SCR gates. Phase loss detection monitors all three line phases and triggers immediate ramp-down if a phase disappears, preventing single-phasing and the associated excessive ripple current. A stall protection timer disables the output if the motor is commanded to run but the speed feedback indicates zero velocity beyond a configurable delay. Independent overspeed protection compares the speed feedback against a hardware-baked threshold, providing a safety layer independent of the main speed regulator. Overvoltage protection on the DC bus safeguards against regenerative energy surges.

Real-World Applications Where This Electrical Control Panel Excels

The Eurotherm SDD590-based electrical control panel has been deployed across heavy industries where DC motors remain the preferred prime mover. In metal processing – cold rolling mills, slitting lines, and galvanizing lines – the precise tension control enabled by the 0.01% speed holding accuracy translates directly into thickness tolerances and surface finish quality. In rubber and plastic processing, mixers and two-roll mills demand high starting torque at low speeds; the adaptive current loop ensures smooth acceleration without nuisance tripping. Wire and cable manufacturing uses multiple electrical control panel units in master-slave configurations to synchronize capstans and take-ups. The integral separation feature prevents windup during rapid spool changes, maintaining constant tension.

Pulp and paper machinery, particularly dryer sections and winders, benefit from the wide speed range and the encoder feedback accuracy. The electrical control panel can hold draw precisely between sections. In crane and hoist applications, the thyristor bridge’s ability to operate in both motoring and regenerative braking quadrants (with appropriate contactor-based armature reversal) allows controlled lowering of heavy loads without brake wear. The panel’s phase-loss and overcurrent trip characteristics are tuned to survive the frequent starts and stops typical of material handling. Test stands and dynamometers use the Eurotherm SDD590 electrical control panel for its flexible analog and digital I/O, which can interface with data acquisition systems for torque-speed characterization.

Why Procurement Engineers Choose a Pre-Assembled Electrical Control Panel

Procuring an electrical control panel as a fully integrated assembly rather than sourcing individual components – drive, circuit breakers, contactors, relays, terminals, enclosure, cooling – shifts integration risk from the end user to the panel builder. A pre-built electrical control panel eliminates the need to verify short-circuit current ratings (SCCR) for each branch circuit, because the assembly is tested as a complete unit. Coordination between protective devices is verified under fault conditions, and the panel arrives with a single-point responsibility warranty. When the electrical control panel is stocked and ready to ship, the capital and time savings multiply. Plant shutdowns are shortened. Spare parts inventories are simplified to a single SKU.

Another often-overlooked advantage of a pre-assembled electrical control panel is the documentation package. Each Eurotherm SDD590 cabinet from HANI ships with schematic diagrams, a bill of materials, torque labels on power connections, a functional test report, and a terminal layout drawing. This documentation is critical for maintenance crews five or ten years after installation, when the original engineering team may no longer be available. The electrical control panel essentially becomes a self-documented asset, minimizing the tribal-knowledge dependency that plagues custom-built drives systems.

FAQ – Eurotherm SDD590 Electrical Control Panel

Installation and Commissioning Considerations

Proper installation of the electrical control panel is essential for reliable long-term operation. The panel should be mounted on a vibration-free vertical surface with minimum 100 mm clearance on all sides for ventilation. The ambient temperature at the panel inlet must not exceed 40°C; if the location is hotter, a cooling solution or de-rating must be applied. The incoming supply must be connected through a dedicated circuit breaker sized to the panel’s nameplate current, and the protective earth conductor must be connected to the marked PE terminal using a conductor sized per applicable electrical codes.

During commissioning, the auto-tune function of the electrical control panel should be executed with the motor uncoupled from the load, if possible, to obtain the most accurate armature circuit parameters. After auto-tune, the speed loop PI gains can be fine-tuned using the integral separation thresholds. The IR compensation setting must be calibrated if armature voltage feedback is used – this involves running the motor at a known load and adjusting the IR drop parameter until the speed droop from no-load to full-load is minimized. As with any electrical control panel handling DC motor armatures, the field supply must be interlocked to ensure that armature current cannot flow without field current present.

Maintaining Your Electrical Control Panel for Decades of Service

Preventive maintenance of the electrical control panel centers on three areas: thermal management, connection torque, and semiconductor health. The cooling fan filters should be cleaned or replaced quarterly in dusty environments. A restricted airflow path will cause the heatsink temperature to rise, which the drive may not alarm until the protection threshold is reached – by then the thyristor junction temperature may have already reduced device lifetime. All power terminals should be re-torqued annually to the values specified on the panel label; thermal cycling gradually loosens bolted connections, increasing contact resistance and localized heating.

The condition of the DC motor brushes and commutator directly affects the electrical control panel, because brush arcing generates conducted electromagnetic interference that can couple into the speed feedback signals. A well-maintained motor reduces this noise source. Internally, the panel should be visually inspected for any signs of overheating – discolored wires, deformed cable ties, or a burnt smell. If the electrical control panel has been in service for more than ten years, the electrolytic capacitors on the control boards may have drifted and the field supply diode bridge should be tested for forward voltage drop. HANI provides component-level spare parts and refurbishment support for ageing electrical control panel units in the field.
