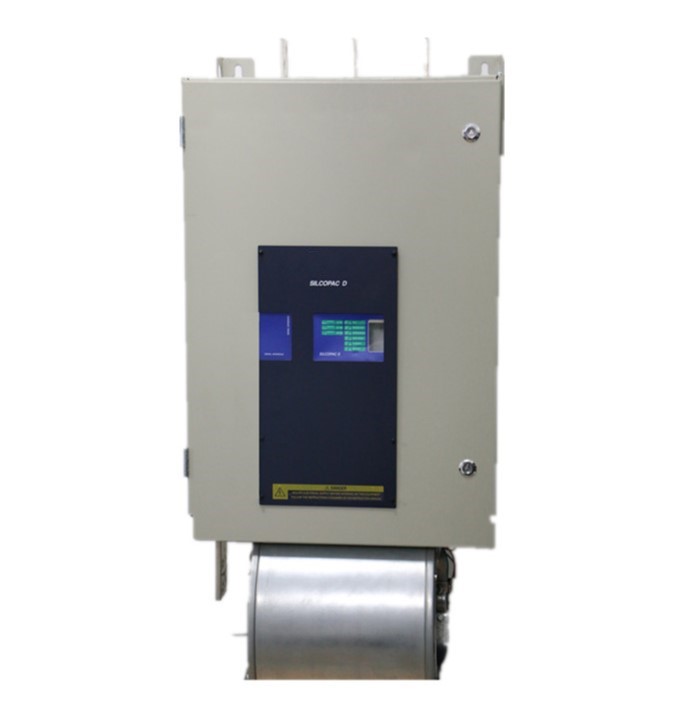

Ansaldo DC Drive – Industrial Automation Drive Panel Ready

Engineered for precision, built for endurance — a complete electrical drives and control panel line delivering 210 A to 12 000 A for the most demanding industrial automation environments. This expandable solution integrates original Ansaldo control topology with a rugged, compact power structure, ready to retrofit legacy DC systems or equip greenfield installations.

1. Overview – A New Standard in Electrical Drives and Control

Modern heavy industry requires electrical drives and control platforms that deliver unwavering torque, seamless communication, and the flexibility to expand as production demands grow. The Ansaldo DC Drive ready panel answers exactly that need. Combining original Ansaldo regulation algorithms with a mechanically integrated power section, it forms a expandable DC drive solution capable of operating individually or in coordinated multi-drive topologies for industrial automation processes such as steel rolling, paper making, and oil extraction.

Unlike older split-architecture units that demand complex inter-cabinet wiring and occupy excessive floor space, this integrated design brings field power, excitation, control electronics, and forced-air cooling into one compact assembly. The result is faster installation, simpler maintenance, and a reduced total cost of ownership — all while preserving the exact operational characteristics of the original Ansaldo DC Drive.

2. Technical Specifications

3. Control Architecture – Exact Replica of Original Ansaldo DC Drive

Any discussion about retrofitting DC drives in industrial automation begins with control integrity. This panel houses the original Ansaldo DC Drive power supply and regulation board, so all parameters, tuning procedures, and diagnostic interfaces remain identical to the legacy equipment. Plant engineers do not need to relearn commissioning sequences — the OP1S operator panel, EEPROM maps, and function blocks behave exactly as expected. That means less downtime during migration and zero risk of parameter translation errors that could destabilize electrical drives and control loops.

The same control core also supports the full suite of expandable communication options. Integrated high‑speed drive‑to‑drive fibre‑optic links enable sub-millisecond torque sharing among parallel units, while fieldbus modules for PROFIBUS, CAN‑BUS, and DeviceNet connect the Ansaldo DC Drive to your plant-wide industrial automation network. Because these communication boards are physically and logically identical to those used in Ansaldo’s latest AC vector drives, spares inventory is unified across DC and AC drive fleets — a significant operational advantage.

4. Power Stage – Reliability Through Proven Thyristor Technology

The power section of any electrical drives and control system must handle thermal cycling, high di/dt, and continuous overload without degradation. This Ansaldo DC Drive panel uses top‑tier thyristor semiconductors that feature electrical insulation between chip and baseplate, standardised high‑pressure contact encapsulation, and full compression bonding. The physics behind the design is clear: compression‑bonded thyristors exhibit superior thermal impedance and fatigue resistance compared to soldered alternatives. Over years of rolling‑mill or mine‑hoist operation, the junction‑to‑case thermal path remains stable, preserving the original current rating and surge capability.

Each thyristor module is mounted on a shared, forced‑air‑cooled aluminium heatsink that has been CFD‑validated for uniform temperature distribution. Thermal sensors embedded in the heatsink provide real‑time feedback to the control board, enabling predictive overtemperature derating rather than abrupt tripping — a critical feature for continuous industrial automation processes like paper calendering or extrusion, where unplanned stops generate significant scrap.

5. Integrated Construction – From Split-Box to One-Box

Traditional DC drives often separated the power stack from the control rack, forcing panel builders to handle interconnecting ribbon cables, gate‑drive harnesses, and potential noise issues. The integrated Ansaldo DC Drive panel eliminates those pain points. Power semiconductors, snubber networks, field rectifier, control electronics, and cooling fan are pre‑assembled on a rigid steel backplane, tested as a complete system before shipping. For users, this means the panel arrives as a factory‑verified electrical drives and control block — simply mount it in the cabinet, connect incoming AC and motor armature/field cables (top‑in, bottom‑out), and the drive is mechanically ready.

The compact footprint also facilitates expandable multi‑drive line‑ups. When two or more panels are paralleled for 6‑pulse or 12‑pulse configurations, the physical layout can be arranged side‑by‑side with minimal busbar length, reducing stray inductance and improving current sharing. This is particularly valuable in metal processing lines where the entire drive system must fit within limited electrical room dimensions.

6. Expandable Parallel Capability & Retrofit Compatibility

The true power of this electrical drives and control platform lies in its expandable architecture. A single panel delivers up to 4000 A armature current; when an application demands more — such as a 10 000 A aluminium hot‑rolling mill or a large mine winder — panels are paralleled via the high‑speed drive‑to‑drive link. Master‑follower current sharing is managed digitally, achieving better than 2 % imbalance under dynamic load, which is comparable to a single large‑frame Ansaldo DC Drive.

Every expandable panel is factory‑configured to emulate the voltage and current ratings of the original Ansaldo DC Drive it replaces. Field commissioning is reduced to verifying the parameter set and performing a current auto‑tuning sequence — a task that usually takes less than two hours.

7. Applications Across Heavy Industrial Automation

DC drive technology remains the preferred choice where low‑speed torque, overload capability, and regenerative braking are non‑negotiable. This electrical drives and control panel powers a wide spectrum of industrial automation machines and plants:

In each of these fields, the Ansaldo DC Drive panel consistently delivers the high starting torque and fast transient response that process engineers depend on. And because the panel is expandable, the same drive family can be scaled from a single 500 kW extruder to a 6 MW multi‑stand tandem line.

8. Why Source Your Electrical Drives and Control Panel from HANI

HANI specialises in providing ready‑to‑commission electrical drives and control solutions for heavy industries. Each Ansaldo DC Drive panel is assembled with strict adherence to the original OEM’s wiring practices, gate‑drive calibration, and insulation coordination. Pre‑delivery testing includes full‑load heat runs on a motor‑generator set, insulation resistance measurement (2500 V megger), and functional verification of every communication port.

With a comprehensive stock of finished panels and strategic spare parts, HANI can ship most ratings within days. A dedicated field service team and a national after‑sales network ensure that start‑up assistance and emergency support are never far away. Every panel carries a 12‑month warranty with free technical support for the lifecycle of the equipment — because reliable industrial automation operations deserve reliable partners.

9. Frequently Asked Questions

10. Ready to Upgrade Your Industrial Automation Drive System?

This Ansaldo DC Drive panel bridges the gap between proven DC motor technology and the connectivity demands of Industry 4.0. Its expandable current architecture, genuine control core, and multi‑voltage input make it the most versatile electrical drives and control building block available for new installations and brownfield retrofits alike. Whether you are engineering a single‑stand skin‑pass mill or a 16‑meter mine hoist, you can count on the technical depth and industrial pedigree of this solution to keep your process running with minimum unplanned downtime.

Contact HANI today to request a quotation, discuss your specific electrical drives and control requirements, or schedule a factory visit. Experience first‑hand how genuine Ansaldo performance, combined with modern mechanical integration, redefines reliability in heavy industrial automation.
