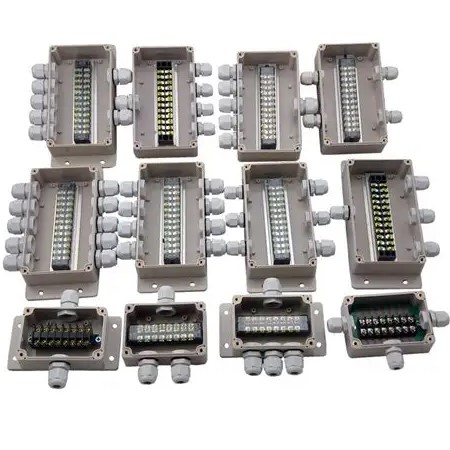

Terminal Junction Box for Electrical Control Systems – Durable Enclosure

Advanced Engineering for Optimal Protection

The Terminal Junction Box for Electrical Control Systems represents the pinnacle of engineering excellence in electrical enclosure design. Constructed from premium-grade cold-rolled steel meeting national standards, our enclosures provide exceptional structural integrity and corrosion resistance. With a standard wall thickness of 1.5mm for both the main body and lid, and a reinforced mounting plate thickness ranging from 2.0mm to 3.0mm depending on enclosure size, these junction boxes deliver superior strength while maintaining a lightweight profile.

What sets our electrical control panel enclosures apart is the meticulous attention to detail in manufacturing. Each unit undergoes precision cutting, forming, and welding processes using specialized tooling to ensure perfect dimensional accuracy. The full-weld construction eliminates gaps and weak points, creating a seamless enclosure that provides maximum protection against environmental contaminants. This critical design feature is essential for maintaining the integrity of your electrical control systems in industrial settings.

Our commitment to quality extends to the surface treatment process. All enclosures undergo international standard pre-treatment procedures including acid washing to remove impurities and ensure optimal adhesion of protective coatings. This is followed by electrostatic primer application and final powder coating in standard RAL 7032 or 7035 colors, though custom color options are available to meet specific project requirements. This multi-stage surface treatment process creates a durable, long-lasting finish that resists chipping, scratching, and corrosion even in harsh industrial environments.

Technical Specifications and IP66 Protection Rating

One of the most critical features of our electrical control panel enclosures is their IP66 protection rating. This rating signifies that the enclosure provides complete protection against dust ingress (the first ‘6’) and powerful water jets from any direction (the second ‘6’). Achieving this high level of protection requires specialized manufacturing techniques, including the use of foam sealing equipment specifically designed for creating airtight and watertight seals.

The IP66 rating is not merely a marketing claim but a scientifically verified performance standard that has been rigorously tested in accordance with IEC 60529 standards. This level of protection is essential for electrical control systems operating in environments where dust, moisture, or chemical exposure could compromise system integrity. Our enclosures maintain their protective capabilities even under continuous exposure to harsh conditions, ensuring reliable operation of your electrical control panel systems for years to come.

The structural design of our junction boxes incorporates reinforced corners and strategic ribbing to enhance impact resistance without adding unnecessary weight. This engineering approach ensures that the electrical control panel enclosure can withstand physical impacts and vibrations commonly encountered in industrial settings, protecting sensitive internal components from damage.

Comprehensive Product Specifications

Our Terminal Junction Box for Electrical Control Systems is available in a wide range of standard sizes to accommodate various application requirements. The following table provides detailed specifications for our most popular models:

Material Science and Manufacturing Excellence

The superior performance of our electrical control panel enclosures begins with the selection of premium materials. We use only national standard cold-rolled steel that meets or exceeds international quality specifications. This material choice provides the optimal balance of strength, formability, and corrosion resistance necessary for demanding industrial applications.

The 1.5mm wall thickness of both the main body and lid is not arbitrary but the result of extensive engineering analysis. This dimension provides sufficient structural rigidity to maintain shape under load while remaining lightweight enough for easy installation and handling. The mounting plate thickness, ranging from 2.0mm to 3.0mm based on enclosure size, is carefully calibrated to support the weight of internal components without flexing or warping.

Our manufacturing process incorporates advanced techniques that ensure consistent quality across all production runs. The use of specialized tooling for cutting, forming, and welding creates precise, repeatable results that maintain dimensional accuracy within tight tolerances. This precision engineering is critical for ensuring proper fit of components and maintaining the IP66 protection rating throughout the product’s lifecycle.

Applications Across Diverse Industries

Our Terminal Junction Box for Electrical Control Systems finds application in a wide array of industries where reliable electrical connections are critical. From manufacturing facilities to power generation plants, these enclosures provide essential protection for wiring and control components.

In the manufacturing sector, our electrical control panel enclosures protect critical control systems that manage production lines, ensuring continuous operation and minimizing downtime. In power generation facilities, these junction boxes safeguard control systems that monitor and regulate power output, maintaining grid stability and safety. The oil and gas industry relies on our enclosures to protect control systems in harsh environments where exposure to corrosive elements is common.

The transportation sector utilizes our electrical control box solutions for signaling systems, vehicle control systems, and infrastructure monitoring. In building automation, these enclosures protect control systems that manage lighting, HVAC, and security systems, contributing to energy efficiency and occupant comfort. Each application benefits from the consistent performance and reliability of our IP66-rated enclosures.

HANI has successfully implemented our electrical control panel enclosures in numerous projects worldwide, demonstrating their versatility and reliability across diverse applications. Our commitment to quality and performance has made us a preferred supplier for many leading industrial organizations.

Installation Best Practices

Proper installation is crucial for maximizing the performance and longevity of your electrical control panel enclosure. We recommend the following best practices:

• Ensure the mounting surface is clean, level, and structurally sound
• Use appropriate mounting hardware rated for the enclosure weight and environmental conditions
• Maintain proper clearance around the enclosure for ventilation and maintenance access
• Seal all cable entries properly using appropriate gland fittings
• Regularly inspect the enclosure for signs of damage or wear
• Clean the enclosure periodically to prevent buildup of dust or contaminants

Following these guidelines will help ensure that your electrical control panel enclosure continues to provide optimal protection for your critical wiring and control systems throughout its service life.

Frequently Asked Questions

Conclusion: The Essential Component for Reliable Electrical Systems

In today’s increasingly complex industrial environments, the reliability of electrical control systems is more critical than ever. Our Terminal Junction Box for Electrical Control Systems provides the robust protection necessary to ensure these systems operate safely and efficiently under demanding conditions. The combination of premium materials, advanced engineering, and meticulous manufacturing processes results in an enclosure that delivers exceptional performance throughout its service life.

Whether you’re designing a new electrical control panel system or upgrading an existing installation, our junction boxes offer the perfect solution for protecting critical wiring and components. The IP66 protection rating ensures reliable operation in even the harshest environments, while the variety of standard sizes accommodates diverse application requirements. Our commitment to quality and customer service makes us the preferred choice for electrical control panel enclosures worldwide.

Investing in high-quality electrical control panel enclosures is not just about protecting your equipment—it’s about ensuring operational continuity, reducing maintenance costs, and enhancing overall system reliability. Our Terminal Junction Box for Electrical Control Systems delivers all these benefits and more, making it an essential component for any serious electrical control system installation.

Note: For specific technical requirements or custom solutions, please contact our engineering team. We are committed to providing the optimal electrical control panel enclosure solution for your unique application needs.
