In the demanding world of heavy industry, the precise and robust control of electrical motors is not just a requirement—it’s the cornerstone of operational efficiency, safety, and productivity. At the heart of this control lies a critical component: the Power Inverter. A high-performance inverter is the intelligent bridge that transforms raw DC power into precisely controlled AC power, enabling sophisticated electrical motor control strategies that drive modern machinery. For applications ranging from steel mills to offshore drilling platforms, where failure is not an option, the choice of inverter defines the system’s capability. This document details the CH800 series, a flagship engineering-grade Power Inverter platform designed for the most challenging industrial environments, offering unparalleled performance in DC to AC Conversion for complex, multi-motor drive systems.

The Critical Role of the Power Inverter in Modern AC Drives

An AC Drive system is a symphony of power electronics and control theory. Its primary function is to regulate the speed, torque, and direction of an AC motor by varying the frequency and voltage of the power supplied to it. The Power Inverter is the final and most dynamic stage of this process. After a rectifier converts incoming AC grid power to a stable DC voltage (often on a common DC bus in large systems), the inverter performs the crucial task of DC to AC Conversion. Using advanced semiconductor switches like IGBTs, it synthesizes a variable-frequency, variable-voltage AC waveform from the DC link. The quality, responsiveness, and intelligence of this conversion directly determine the performance of the entire electrical motor control scheme. Whether implementing simple V/F control or the most demanding closed-loop vector control with an encoder, the inverter’s capabilities are paramount.

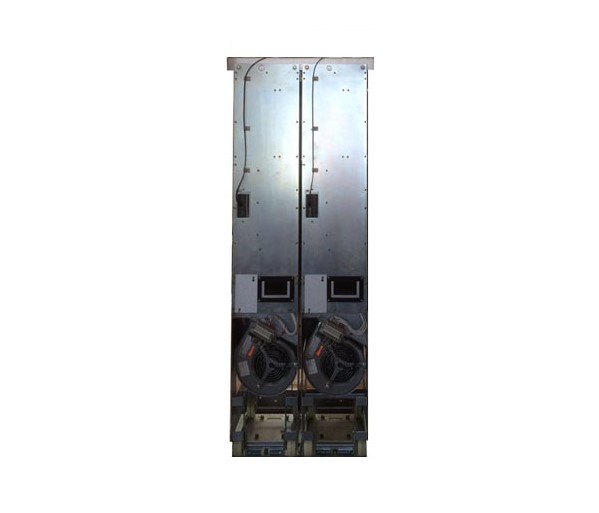

HANI CH800 Series: Engineered for Extreme Performance and Reliability

Developed by HANI Electric, the CH800 series represents the pinnacle of modular, high-power inverter technology. It is specifically engineered to replace imported solutions in the most critical and capital-intensive industries, including metallurgy, oil & gas, marine propulsion, mining, and heavy machinery. The CH800 is not a single product but a comprehensive ecosystem for building scalable and resilient AC Drive systems, capable of managing everything from a single large motor to a complex network of dozens of motors on a shared DC bus.

Modular Architecture for Unmatched Flexibility

The core philosophy of the CH800 is modularity. This design allows engineers to construct a drive system that perfectly matches the application’s power and control requirements.

• Rectifier Options: Choose between a Basic Line Module (BLM) using high-power-density thyristors for standard two-quadrant operation, or a Smart Line Module (SLM) featuring diode rectification with IGBT-based active front-end for four-quadrant operation. The SLM enables safe, high-quality regeneration of braking energy back to the grid without the need for bulky and expensive auto-transformers.
• Scalable Inverter Power: Individual inverter modules offer a substantial capacity of up to 500kW. For truly massive applications, these modules can be paralleled—up to six units—to deliver a staggering 3000kW of controlled power from a single logical drive point, ensuring seamless DC to AC Conversion at any scale.

Advanced Control for Precision Motor Management

The CH800’s intelligence is its defining feature, providing the foundation for sophisticated electrical motor control.

• Multiple Control Modes: Supports V/F control for simple applications, sensorless vector control for high dynamic performance without an encoder, and full closed-loop vector control with an encoder for the ultimate in speed and torque precision, even at zero speed.
• Self-Commissioning Technology: Advanced self-identification algorithms automatically map the motor’s unique characteristics, while controller self-tuning optimizes the current and speed loops for peak performance, drastically reducing commissioning time and expertise required.
• Real-Time Operating System: A powerful, dedicated controller runs a real-time multi-tasking OS, capable of executing complex application-specific control logic alongside standard drive functions.
• Graphical Programming (CFC): The integrated Continuous Function Chart (CFC) editor allows engineers to create custom control sequences and logic directly within the drive, turning the inverter into a complete automation solution for complex processes.

Industrial-Grade Connectivity and Diagnostics

In a modern plant, the drive must be a connected and transparent node on the network.

• Robust Communication: Features fiber-optic Ethernet for noise-immune communication between the control unit and power modules. Standard fieldbus interfaces include POWERLINK, Profibus, and an encoder feedback channel. Optional communication boards provide easy expansion to Profinet and CANopen networks.
• Powerful Commissioning Software: The dedicated PC software allows for simultaneous online monitoring and debugging of multiple CH800 drives. Its advanced oscilloscope function can capture up to 16 data channels at a 1ms sampling rate, providing invaluable insight for tuning and troubleshooting complex electrical motor control dynamics.
• Remote Support Capability: With customer authorization, HANI’s support team can establish a secure VPN connection to the drive for remote diagnostics and technical assistance, minimizing costly downtime.

Technical Specifications at a Glance

The CH800 series is built to operate reliably in the harshest industrial conditions.

Application-Centric Design for Heavy Industry

The CH800’s design is a direct response to the challenges faced in specific sectors. Its ability to manage a common DC bus makes it ideal for applications with multiple motors that have interdependent loads, such as a rolling mill stand where one motor may be motoring while another is generating. The high overload capacity (150% for 60 seconds in heavy-duty mode) is essential for equipment like cranes and hoists that experience frequent, high-inertia starts and stops. Furthermore, its rugged construction and wide environmental tolerance allow it to perform reliably in the dusty, hot, and electrically noisy environments of mines, foundries, and offshore platforms, providing a robust domestic alternative for electrical motor control where previously only foreign brands were considered.

Frequently Asked Questions (FAQ)

For engineers tasked with designing or upgrading critical drive systems, the CH800 series from HANI offers a compelling blend of high power, advanced electrical motor control, modular flexibility, and industrial-grade robustness. It is a purpose-built solution for mastering the complexities of modern DC to AC Conversion in the world’s most demanding applications.
