6RA80 DC Drive Control Cabinet – Custom Electrical Control Panel Design
Brand name: HANI
Packing Details : Wooden box with fumigation or Wooden Fram or Steel Frame
Delivery Details: 30~60days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight
HANI specializes in industrial electrical automation, delivering integrated drive and control solutions to safeguard your production.
Product Details
Siemens 6RA80 – Engineered Drive Systems
6RA80 DC Drive Control Cabinet – Custom Electrical Control Panel Design
Purpose‑built DC drive enclosures that combine Siemens 6RA80 precision with industrial‑grade protection, thermal management, and operational ergonomics.
A high‑performance DC drive is only as reliable as the environment in which it operates. The Siemens 6RA80 digital DC converter—recognised globally for its precise armature and field control—requires an equally engineered electrical control panel to deliver its full rated performance year after year. Off‑the‑shelf cabinets rarely meet the thermal, electromagnetic, and mechanical demands of heavy‑duty DC drive installations. A custom DC Control Cabinet designed around the 6RA80 addresses these requirements explicitly, integrating power distribution, protection, cooling, and operator interface into a single, factory‑tested assembly that reduces on‑site commissioning time and risk.
The difference between a standard enclosure and a properly engineered control cabinet becomes starkly apparent under sustained full‑load operation. The Siemens 6RA80 can demand 500 A, 850 A, or even 2,000 A of armature current continuously, generating substantial heat that must be extracted efficiently. An inadequately ventilated electrical control panel can cause the drive to derate, compromise capacitor life, and ultimately lead to unscheduled downtime. HANI has designed and delivered custom DC Control Cabinet solutions for steel mills, paper machines, and mine hoists, each precisely tailored to the drive rating, site environmental conditions, and local electrical code. This article sets out the engineering principles, component selection criteria, and testing procedures that underpin a high‑integrity 6RA80 control cabinet.
Why a Custom Electrical Control Panel Maximises 6RA80 Performance

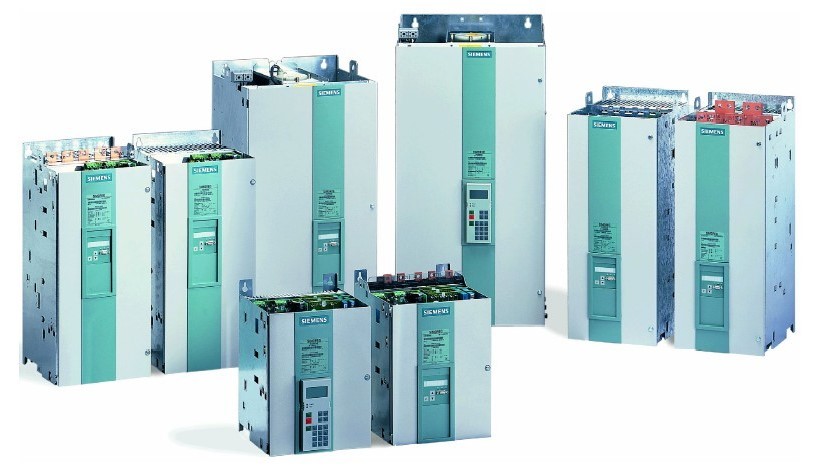

The Siemens 6RA80 is supplied as an open‑chassis or basic panel‑mounted unit, intended for integration into a user‑designed electrical control panel. This is deliberate: every industrial application has unique requirements for main circuit breaker rating, busbar current capacity, paralleling reactors, field excitation fusing, and control voltage distribution. A purpose‑built DC Control Cabinet allows these elements to be engineered as a cohesive system, eliminating the mismatches and clearance violations that can arise when a standard cabinet is adapted in the field. Furthermore, a custom control cabinet can incorporate features such as arc‑fault containment, seismic bracing, and N+1 fan redundancy that are simply unavailable in generic enclosures.
Representative 6RA80 DC Control Cabinet Configurations
The table below illustrates how a custom electrical control panel is sized for different 6RA80 ratings. These configurations assume a 400 V, 50 Hz three‑phase supply, 40 °C ambient, and compliance with IEC 61439‑2 for low‑voltage switchgear and controlgear assemblies.
| Parameter | 6RA8018 (60 A) | 6RA8030 (125 A) | 6RA8075 (850 A) | 6RA8090 (2,000 A) |
|---|---|---|---|---|
| Cabinet Dimensions (H×W×D, mm) | 2,000 × 600 × 600 | 2,000 × 800 × 600 | 2,200 × 1,000 × 800 | 2,200 × 2,000 × 800 (multi‑bay) |
| Main Busbar Rating | 160 A, 50 kA/1 s | 250 A, 65 kA/1 s | 1,250 A, 80 kA/1 s | 2,500 A, 100 kA/1 s |
| Cooling Method | Forced air, single fan | Forced air, filtered inlet | Forced air, N+1 redundancy | Forced air / liquid‑cooled option |
| Enclosure IP Rating | IP21–IP54 | IP21–IP54 | IP21–IP54 | IP31–IP54 (cabinet‑dependent) |
| Control Voltage Distribution | 24 VDC, 230 VAC isolated | 24 VDC, 230 VAC isolated | 24 VDC, 230 VAC,120 VAC | Multi‑voltage, galvanically separated |
| Fieldbus Interface | PROFIBUS, PROFINET, Modbus RTU | PROFIBUS, PROFINET, Modbus RTU | PROFIBUS, PROFINET, EtherNet/IP | All major protocols, fibre‑optic link |
| Integrated Protection | MCB, DC fuses, phase monitor | MCCB, DC fuses, differential relay | ACB, arc detection, fire‑suppressant | ACB, arc quench, full AS 60947 compliance |
* Cabinet dimensions are indicative and are finalised during detailed engineering. Every custom electrical control panel is temperature‑rise tested at rated current per IEC 61439‑2 to verify the thermal design. The Siemens 6RA80 drive unit is factory‑integrated into the control cabinet and fully wired before shipment.
Engineering a Robust DC Control Cabinet – Key Design Disciplines
A DC Control Cabinet housing a Siemens 6RA80 must satisfy multiple engineering constraints simultaneously. The first is thermal management. The thyristor power stack in the 6RA80 dissipates roughly 1%–2% of the throughput power as heat; for an 850 A unit operating at 500 VDC armature, this represents approximately 4–8 kW of continuous heat rejection. The custom electrical control panel must be arranged so that the power stack, DC link choke, and braking resistors (if fitted) each receive adequate airflow without recirculation. Computational fluid dynamics (CFD) analysis is often employed for larger cabinets to verify that hot spots do not exceed semiconductor junction temperature limits.
Electromagnetic compatibility (EMC) is the second pillar. A control cabinet containing a thyristor converter is a potent source of conducted and radiated emissions. The design must segregate noisy power cables from sensitive control wiring, ensure proper bonding of the backplane to the protective earth, and incorporate line reactors or filters to meet the conducted emission limits of IEC 61800‑3. The electrical control panel earth bar must provide a low‑impedance path back to the supply transformer’s star point, with all screen terminations made on conductive cable glands or 360‑degree clamps. These practices are not optional extras; they are essential for the service life of the Siemens 6RA80 and the safety of personnel.
Accessibility and maintainability also drive the layout of a well‑designed DC Control Cabinet. Power modules such as the field exciter and control unit (CUD) should be accessible from the front without de‑energising the entire electrical control panel. Hinged sub‑panels, removable gland plates, and clearly labelled terminal blocks reduce troubleshooting time during a breakdown. A custom control cabinet can be built with thermographic inspection windows, allowing thermal imaging of busbar joints and terminations without opening the enclosure and violating arc‑flash boundaries.
Applications Demanding a Custom 6RA80 Electrical Control Panel
The Siemens 6RA80 in a custom electrical control panel is found wherever DC motors remain the preferred prime mover—typically in high‑torque, wide‑speed‑range, and reversing applications.
Steel & Aluminium Mills
Main mill drives, coilers, and shears demand a rugged DC Control Cabinet that can withstand frequent reversing and high overload torques. The Siemens 6RA80 in a custom control cabinet delivers the mill‑duty performance required for 24/7 production.
Mining & Cement
Mine hoists, ball mills, and apron feeders rely on DC drive electrical control panel assemblies with high ingress protection and vibration‑resistant construction. The Siemens 6RA80 cabinet is often built to IP54 with additional air filtration.
Paper & Converting Lines
Multi‑motor winders and paper machines use coordinated DC Control Cabinet arrays housing multiple Siemens 6RA80 drives. The custom control cabinet includes inter‑bay communication and shared DC bus features for regenerative energy reuse.
From Specification to Commissioning – The HANI Design Process
Every custom electrical control panel begins with a detailed front‑end engineering study that defines the drive duty cycle, supply fault level, required availability, and any site‑specific constraints such as altitude, seismic zone, or corrosive atmosphere. This data drives the selection of the Siemens 6RA80 rating, the main circuit breaker interrupting capacity, the cooling method, and the enclosure material and finish. HANI then produces a 3D model of the DC Control Cabinet that shows the exact placement of every component, the airflow paths, and the segregation barriers between power and control compartments.
Before the control cabinet leaves the workshop, it undergoes a comprehensive factory acceptance test (FAT): full‑load heat run at rated current, functional testing of all protection devices, insulation resistance measurement of all busbars, and verification of the 6RA80’s control response using a motor simulator or a dummy load. This pre‑commissioning rigour means that when the electrical control panel arrives on site, it can be cabled into the motor and supply and brought online within a single shift. The Siemens 6RA80 inside the cabinet is pre‑commissioned with the customer’s parameter file, so only a functional check is required.
Frequently Asked Questions (FAQ)
The Long‑Term Value of a Purpose‑Designed DC Drive Enclosure
A Siemens 6RA80 DC converter is a precision instrument. Protecting that instrument in a properly engineered electrical control panel is not an area for compromise. The difference in capital cost between a standard box and a custom DC Control Cabinet is modest when compared to the cost of a single unplanned production stoppage caused by an overtemperature trip or an arc‑flash incident. By investing in a control cabinet designed specifically for the drive rating, the installation environment, and the operator’s maintenance procedures, plant managers secure the full performance potential of the 6RA80 while minimising the lifecycle cost of the installation.
For heavy‑industry operators who need a drive system they can depend on for 15–20 years, a custom electrical control panel built around the Siemens 6RA80 is the definitive solution. It arrives on site pre‑tested, fully documented, and ready to run—a complete drive package that reflects the best of both the Siemens drive technology and the panel builder’s engineering discipline. With HANI’s support, the transition from specification to sustained production is smooth, predictable, and fully validated.
Siemens and SIMOREG are registered trademarks of Siemens AG. All product names and designations are trademarks of their respective owners.
Cabinet specifications are for general reference and must be verified against the final engineering design. Always consult a qualified electrical engineer for your specific electrical control panel requirements.
