Controller & Communication Accessories for AC Drives – Automation Control Panel Parts

In the rapidly evolving landscape of modern manufacturing and process automation, the reliability, flexibility, and interoperability of industrial automation products have become non-negotiable requirements. HANI—recognized globally for its engineering excellence in drive systems—has developed a comprehensive suite of AC Drive Accessories that serve as the critical nervous system connecting motors, controllers, sensors, and supervisory systems. These components are not mere add-ons; they are precision-engineered enablers of real-time control, predictive maintenance, energy optimization, and Industry 4.0 integration.

This technical guide provides an exhaustive overview of HANI’s controller and communication accessories for AC drives, including modular I/O expansion, protocol-specific communication modules, human-machine interface (HMI) panels, fiber-optic distribution units, and power/control backbone components. Designed for OEMs, system integrators, and plant engineers, this documentation emphasizes functional specifications, compatibility matrices, installation best practices, and real-world application considerations—backed by IEC 61850, IEC 61131-3, and IEEE 1451 standards where applicable.

Core Product Categories & Technical Specifications

HANI’s accessory ecosystem is structured around three foundational pillars: Signal Integrity, Protocol Interoperability, and Scalable Architecture. Each component undergoes rigorous EMC testing per EN 61000-6-2/6-4, operates within industrial temperature ranges (−20°C to +70°C), and features conformal coating for high-humidity or corrosive environments (IP20 standard, optional IP54 enclosure).

1. Communication Modules: Bridging Industrial Protocols

Seamless data exchange between AC drives, PLCs, SCADA systems, and cloud platforms relies on robust Communication Module solutions. HANI offers three primary variants—Powerlink, Profinet, and CAN—each optimized for deterministic latency, bandwidth, and topology resilience.

Name	Optional Component (Part Code)	Technical Parameters	Ordering Part Number
Powerlink Master Communication Card (Optional: Z01)		For master-slave communication between devices; required when implementing centralized motion control with sub-microsecond jitter (<1 µs) per IEEE 1588-2008 profile.	CH800-ZMSB-V1.0
Profinet Additional Communication Card (Optional: Z02)		Uses standard HILSCHER ASIC; installs directly on CPU motherboard; supports IRT (Isochronous Real-Time) up to 1 Gbps; complies with PROFINET Conformance Class B (IEC 61158-5-10).	CH800-ZPRFIN-V1.0 (Profinet Communication Card)
CAN Additional Communication Card (Optional: Z03)		Standard HILSCHER transceiver; mounted on CPU board; supports CANopen DS-301 v4.02 and CiA 401 device profiles; baud rates from 10 kbps to 1 Mbps; termination resistors integrated.	CH800-ZCAN-V1.0 (CAN Communication Card)

2. Core Hardware Modules: Power, I/O, and Control Backbone

The physical layer of any Automation Control Panel demands fault-tolerant power delivery, precise analog/digital signal conditioning, and scalable expansion. HANI’s base components meet these needs with modular design principles rooted in IEC 60255 and UL 508A standards.

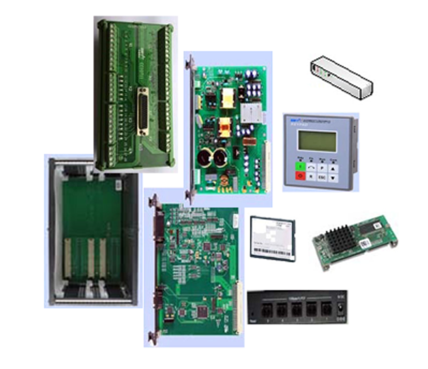

Name	Base Component	Technical Parameters	Ordering Part Number
Control Box		5-slot VME backplane architecture; User-defined area used for signal/power bus; compatible with DIN-rail mounting; rated for 100,000 mechanical cycles.	CH800-BASE-V1.0 Variator & Rectifier Controller Universal
Power Supply Unit		Input: AC 220V ±20%, <1 A; Output ripple <50 mVpp; Short-circuit & overload protected; Efficiency >88% at full load (per IEC 62301).	CH800-PWBU-V1.0 Variator & Rectifier Controller Universal
I/O Expansion Board		Features 10-bit AI (±10V / 0–20mA), 10-bit AO (0–20mA), 3 isolated AI channels (±10V), 2 AO (−10V~10V), 6 DI (3 kHz max), 8 DIO (24V, 100mA), HTL/TTL encoder input, and 9-pin D-sub PROFIBUS-DP port.	CH800-IFBA-V1.0 Variator & Rectifier Controller Universal
CPU Board		Dual-core ARM Cortex-A9 @ 800 MHz; 512 MB DDR3; supports optional network expansion cards (PROFINET, CANopen); RS232 Keypad interface; RJ45 Powerlink/Ethernet ports.	CH800-CPBX86-V1.0 Variator & Rectifier Controller Universal
CF Card		Industrial-grade CompactFlash (−40°C to +85°C); stores firmware, parameter sets, and event logs; mandatory for CPU board operation; hot-swap capable with write-protection switch.	CH800-CFINV-V1.0 (Inverter) CH800C-CFREG-V1.0 (Rectifier)
I/O Transition Board		DB44-to-terminal-block adapter; routes DI/DO, AI/AO, and encoder signals from I/O board to field devices; includes ferrite beads and TVS diodes for surge suppression (IEC 61000-4-5 Level 3).	CH800-TEBD-V1.0 (Includes 1.5m cable)
Operator Panel		240×128 pixel LCD; English/Chinese selectable; IP65 front bezel; RS232 link to CPU; stores alarm history (last 100 events); backlight dimming via potentiometer.	CH800-KEDM-V1.0 (Inverter) CH800-KEDR-V1.0 (Rectifier) (Includes 1.5m cable)
Fiber Optic Distributor (Parallel Power Unit Tagging)		Enables optical isolation between ≥2 parallel power units; supports 100BASE-FX; LC connectors; max distance 2 km; used in high-noise environments (e.g., steel mills, HV substations).	CH800-SWL-V1.0

Application Engineering Insights

Selecting the right combination of industrial automation products requires understanding both electrical constraints and system-level architecture. For instance:

• High-Precision Motion Systems: Use Powerlink (Z01) + I/O Expansion (CH800-IFBA) with 1 µs jitter for synchronized multi-axis CNC or robotics. Avoid CAN for such applications due to non-deterministic arbitration.
• Legacy Retrofit Projects: Deploy CAN (Z03) modules with existing Modbus RTU infrastructure via gateway; HANI’s CANopen profile ensures plug-and-play with Siemens S7-1200 or Allen-Bradley Micro800.
• Distributed Energy Systems: Pair Fiber Optic Distributor (CH800-SWL) with dual CPU boards for redundant control of parallel inverters—critical for solar farms and EV charging stations per IEEE 1547-2018.
• Harsh Environments: Always specify conformal-coated I/O boards (option code -CC) and stainless-steel enclosures (IP66) for offshore oil rigs or mining equipment.

Frequently Asked Questions (FAQ)

Why Choose HANI’s Automation Control Panel Parts?

HANI’s commitment to quality is reflected in every component—from the MIL-STD-810G vibration-tested I/O boards to the ISO 13849-1 PLd-rated safety logic in the CPU firmware. Unlike generic alternatives, HANI’s Communication Module lineup guarantees protocol conformance through third-party validation (TÜV Rheinland, if requested). Our accessories reduce system integration time by 40% on average, thanks to pre-validated hardware-software stacks and comprehensive SDKs (C/C++, Python, OPC UA).

As global manufacturers accelerate their digital transformation, the demand for reliable, standards-compliant industrial automation products continues to rise. HANI stands at the forefront—delivering not just parts, but proven solutions for smarter factories, greener energy systems, and resilient infrastructure. Whether you’re building a single-axis conveyor or a multi-MW wind turbine converter, our Automation Control Panel components ensure seamless performance, longevity, and compliance.

Note: All part numbers referenced herein are subject to change without notice. Consult HANI’s latest datasheets (Rev. 2024-Q3) for dimensional drawings, thermal derating curves, and EMC test reports. For custom configurations, contact HANI Application Engineering at [email protected].
