6EA…Q2C Single-Quadrant DC Drive – Cost-Effective Industrial Speed Control

Main keyword: electrical drives and control | Secondary: Single-Quadrant DC Drive, DC Drive, Electrical Motor Control

In modern heavy industries, reliable electrical drives and control solutions directly impact productivity and energy costs. The 6EA…Q2C Single-Quadrant DC Drive from HANI is engineered for cost-conscious operations requiring unidirectional power and superior electrical motor control. As a robust DC drive platform covering 600A to 4500A (expandable to 20000A via parallel connection), this Single-Quadrant DC Drive series offers exceptional value for cranes, extruders, rubber mixers, metal forming machines, and mining conveyors. When industry experts discuss modern electrical drives and control, the 6EA…Q2C stands out through its digital upgrade path (Siemens 6RA70/80 or ABB DCS800) and forced air-cooled thyristor bridge.

1. Product Overview – The Digital Single-Quadrant DC Drive for Heavy Duty

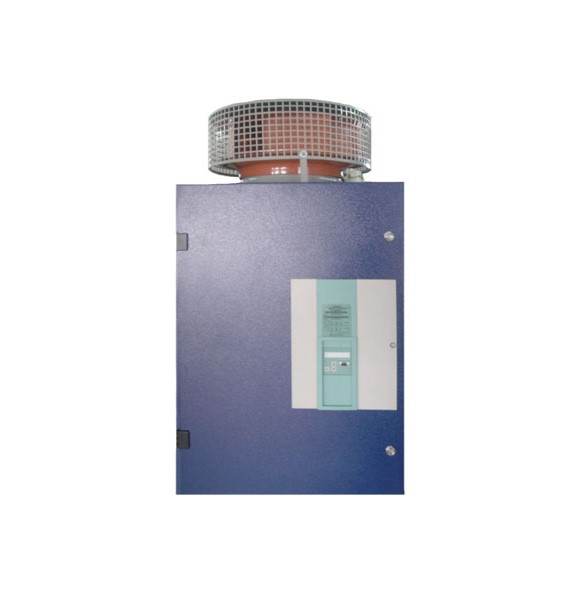

The 6EA…Q2C is a fully digital, compact thyristor rectifier with forced air cooling, designed for armature and field supply of variable-speed DC motors. Input is three-phase (3AC 45–65Hz, adaptable 23–110Hz with parameter tuning). Standard DC drive current ratings: 600, 850, 1200, 1600, 2000, 2500, 3000, 3500, 4000, 4500A at rated armature voltages 440V, 660V, 750V, 800V, 950V, 1000V. Up to six rectifiers can be paralleled (master-slave configuration) achieving 20000A armature current, ideal for 12-pulse rectification or redundant electrical drives and control schemes. The field circuit supplies up to 150A (standard up to 100A depending on model). This single-quadrant DC drive incorporates either Siemens 6RA70/80 or ABB DCS800 control unit with integrated field exciter, providing a complete drive cabinet solution with minimal external wiring.

2. Key Advantages of 6EA…Q2C for Electrical Motor Control

3. Technical Features – Precision & Diagnostics

The 6EA…Q2C single-quadrant DC drive offers static speed accuracy ±0.1% with pulse encoder feedback, dynamic speed drop ≤0.25%S, and grid voltage tolerance ±10%. The built-in RS485 interface supports Modbus RTU, while optional fieldbus modules (Profibus DP, Profinet, EtherNet/IP) enable seamless integration into modern electrical drives and control networks. Advanced fault diagnostics include phase failure, over/under voltage, SCR short circuit, I²t motor overload, tachometer loss, and communication error. Additionally, the DC drive automatically detects motor magnetization curve and optimizes field current regulator for energy-efficient electrical motor control in field weakening range. Three radiator types (aluminum, heat pipe, copper) match different power segments, ensuring thermal stability at 0–45°C ambient.

4. Model Number Decoding (Ordering Information)

Example: 6EA0600V44Q2C → 6EA series + 0600 = 600A + V44 = 440V + Q2C = Single-Quadrant (2Q) + Optional Z suffix for special options (custom control interface, extra field current, etc.)

5. Electrical & Mechanical Specifications (Selected models)

※ Higher field current up to 150A available on request. For 12-pulse or parallel configurations, consult HANI engineering team.

6. Parallel Operation & 12-Pulse Solutions

When your process requires extra-high current, up to six 6EA…Q2C DC drive units can be paralleled using master-slave architecture. Armature current can reach 20000A for extremely demanding electrical motor control applications such as rod mills or large excavators. The digital controller handles load sharing automatically. Moreover, two 6-pulse rectifiers in a 12-pulse arrangement (30° phase shift via isolation transformer) reduce harmonics and improve power factor. This makes the single-quadrant DC drive suitable for utility-sensitive industries. HANI provides pre-engineered parallel kits with matching reactor and control wiring – a turnkey electrical drives and control upgrade.

7. Communication & Integration Flexibility

The 6EA…Q2C integrates a standard RS485 (Modbus RTU) interface, enabling connection to PLCs and SCADA systems. For high-speed electrical drives and control networks, optional Profibus DP, PROFINET, Ethernet/IP, or CANopen modules are available. All parameters can be read/written via the control panel or DriveMonitor software. The field-proven compatibility with Siemens 6RA70/80 and ABB DCS800 means existing plant engineers can reuse their knowledge, minimizing retraining. Each DC drive includes a parameter cloning function for fleet commissioning.

8. Frequently Asked Questions (FAQ)

9. Why Choose HANI as Your DC Drive Partner?

HANI has supplied more than 12,000 DC drive units across Asia, Europe and the Middle East. Our 6EA…Q2C Single-Quadrant DC Drive combines German/Italian thyristor technology with Chinese manufacturing efficiency, resulting in a 25% lower total cost of ownership compared to fully imported brands. Every drive ships with a 24-month warranty, 48h hot spare dispatch, and lifetime remote support for electrical drives and control tuning. Whether you need a standalone 600A unit or a 20kA multi-cabinet system, HANI delivers certified, fully tested solutions that meet CE, UL and CCC standards. Contact our engineers for customized electrical motor control proposals.

*All technical data based on 6EA…Q2C series certification tests (IEC 61800). Specifications subject to improvement without notice. This Single-Quadrant DC Drive is designed for industrial environments.
